Hager The Hager HNG slotted panel trunking 75x75 mm in light grey organises and protects wiring inside enclosures. Made of halogen‑free PPO, it ensures high heat resistance and low smoke toxicity. Slotted walls allow easy cable breakout and ventilation, with smooth edges protecting insulation. Ideal for control panels and switchboards.
EAN
4012740180375
Packaging
16 Meters
Slotted panel trunking PPO halogen-free HNG 75x75 mm light grey HNG7507507035B
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height75 mm
-
Width75 mm
-
Length2000 mm
-
Slit width5 mm
-
Slot width7,50 mm
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyphenylene oxide (PPO)
-
ColourLight grey
-
RAL code7035
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

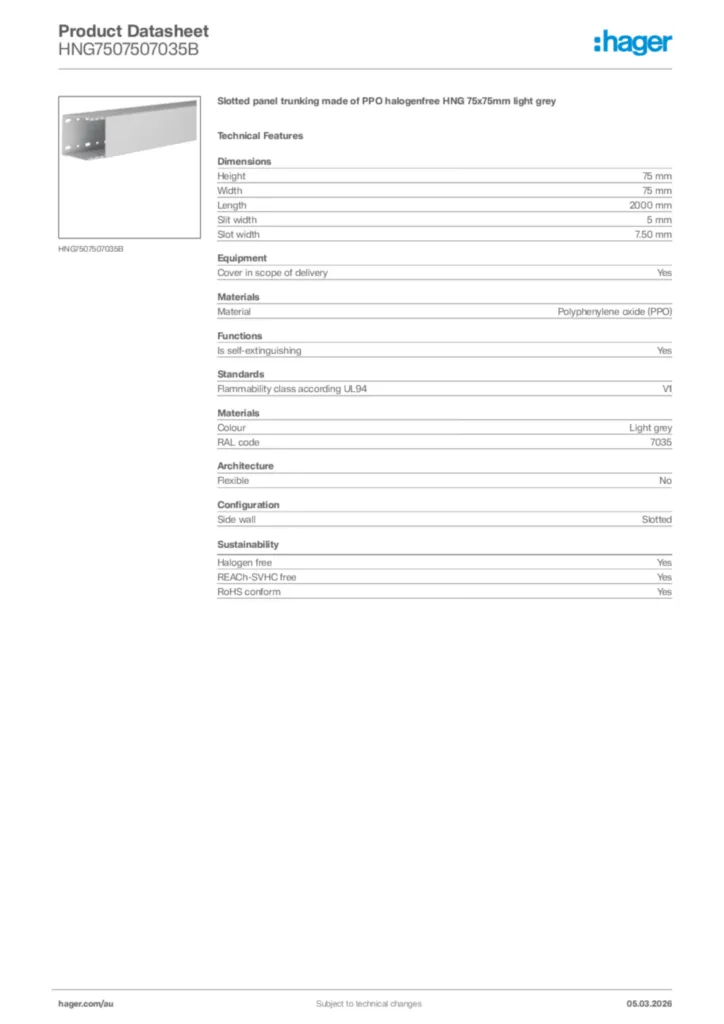

Product datasheet
Hager Product data sheet HNG7507507035B
Slotted panel trunking made of PPO halogenfree HNG 75x75mm light grey
PDF -
STEP files
Step Model HNG7507507035B & HNG75075
STEP files International 2026-04-15
STP546,53 kB -
Product data sheet
Product sheet for slotted trunking system HNG-V1 in English
Product data sheet en-GB 2018-06-07
PDF383,96 kB
Product sheet for slotted trunking system HNG-V1 in German
Product data sheet de-DE 2018-06-07
PDF387,37 kB -
Declaration of conformity
EU-Declaration HNG T060A DE_EN 30072019
Declaration of conformity International 2019-08-23
PDF48,86 kB
More documentation
