Hager The Hager HNG slotted panel trunking cover 75x37 mm in light grey streamlines and protects wiring inside enclosures. Made from robust PPO for heat and impact resistance, it snaps securely onto matching trunking, retaining conductors while allowing quick access. Smooth edges protect insulation, and the compact profile saves panel space for clean, reliable, and serviceable cable management.
EAN
4012740219471
Packaging
40 Meters
Enclosure trunking slotted cover 75x37mm PPO HNG Light Grey HNG7503707035B
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height75 mm
-
Width37 mm
-
Length2000 mm
-
Slit width5 mm
-
Slot width7,50 mm
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyphenylene oxide (PPO)
-
ColourLight grey
-
RAL code7035
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

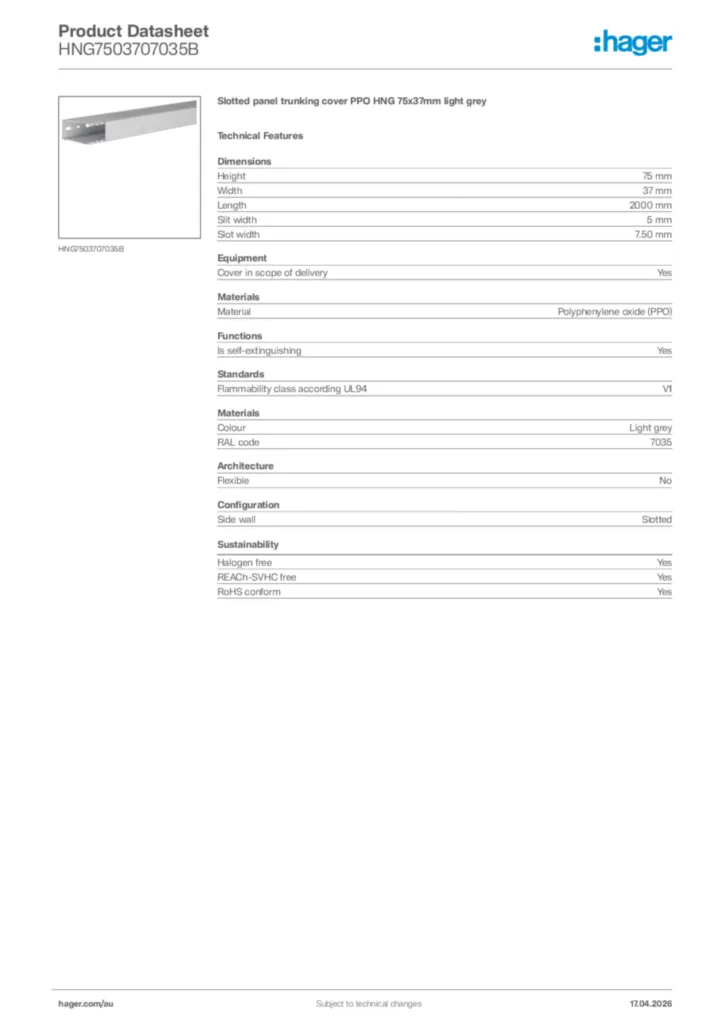

Product datasheet
Hager Product data sheet HNG7503707035B
Slotted panel trunking cover PPO HNG 75x37mm light grey
PDF -
STEP files
Step Model HNG7503707035B & HNG75037
STEP files International 2026-04-15
STP543,88 kB -
Product data sheet
Product sheet for slotted trunking system HNG-V1 in English
Product data sheet en-GB 2018-06-07
PDF383,96 kB
Product sheet for slotted trunking system HNG-V1 in German
Product data sheet de-DE 2018-06-07
PDF387,37 kB -
Declaration of conformity
EU-Declaration HNG T060A DE_EN 30072019
Declaration of conformity International 2019-08-23
PDF48,86 kB
