Hager The Hager HNG slotted panel trunking 37x37 mm in light grey streamlines wiring inside enclosures. Made from halogen-free PPO, it is low-smoke, flame-retardant and suitable for public and commercial sites. Slotted walls enable neat cable segregation and easy exit, with smooth edges for conductor protection. Compact size saves panel space and speeds installation.
EAN
4012740180634
Packaging
32 Meters
Slotted panel trunking PPO halogen-free 37x37 mm light grey HNG HNG3703707035B
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height37 mm
-
Width37 mm
-
Length2000 mm
-
Slit width5 mm
-
Slot width7,50 mm
Equipment
-
Cover in scope of deliveryYes
Materials
-
MaterialPolyphenylene oxide (PPO)
-
ColourLight grey
-
RAL code7035
Functions
-
Is self-extinguishingYes
Standards
-
Flammability class according UL94V1
Architecture
-
FlexibleNo
Configuration
-
Side wallSlotted
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

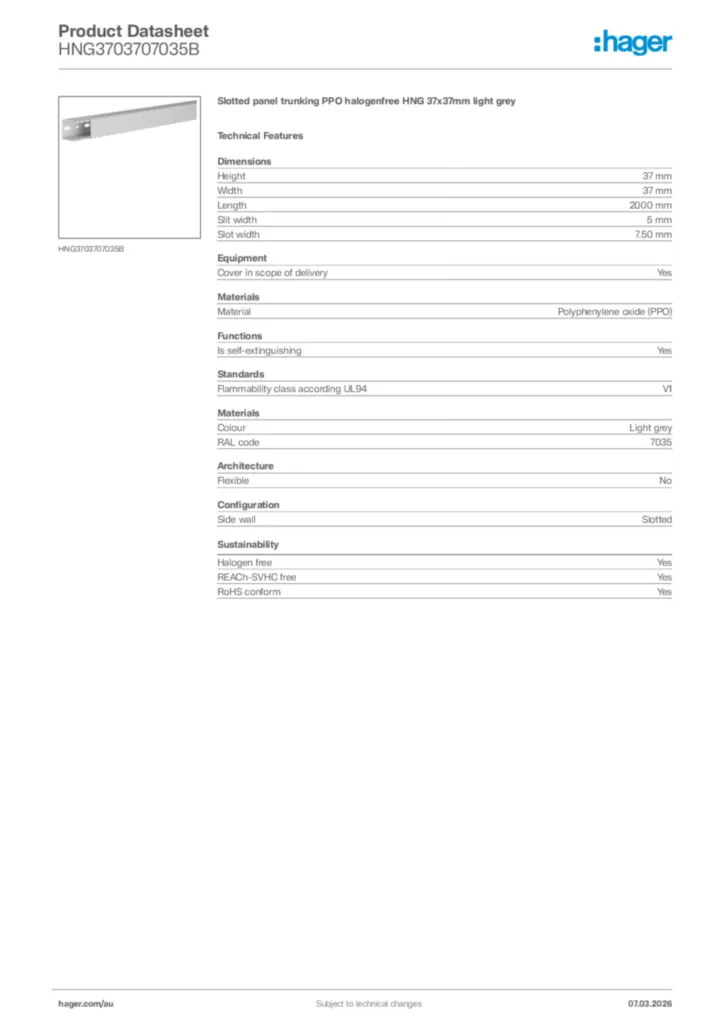

Hager Product data sheet HNG3703707035B
Slotted panel trunking PPO halogenfree HNG 37x37mm light grey
PDF -
STEP files
Step Model HNG3703707035B & HNG37037
STEP files International 2026-04-15
STP544,09 kB -
Product data sheet
Product sheet for slotted trunking system HNG-V1 in English
Product data sheet en-GB 2018-06-07
PDF383,96 kB
Product sheet for slotted trunking system HNG-V1 in German
Product data sheet de-DE 2018-06-07
PDF387,37 kB -
Declaration of conformity
EU-Declaration HNG T060A DE_EN 30072019
Declaration of conformity International 2019-08-23
PDF48,86 kB
More documentation
