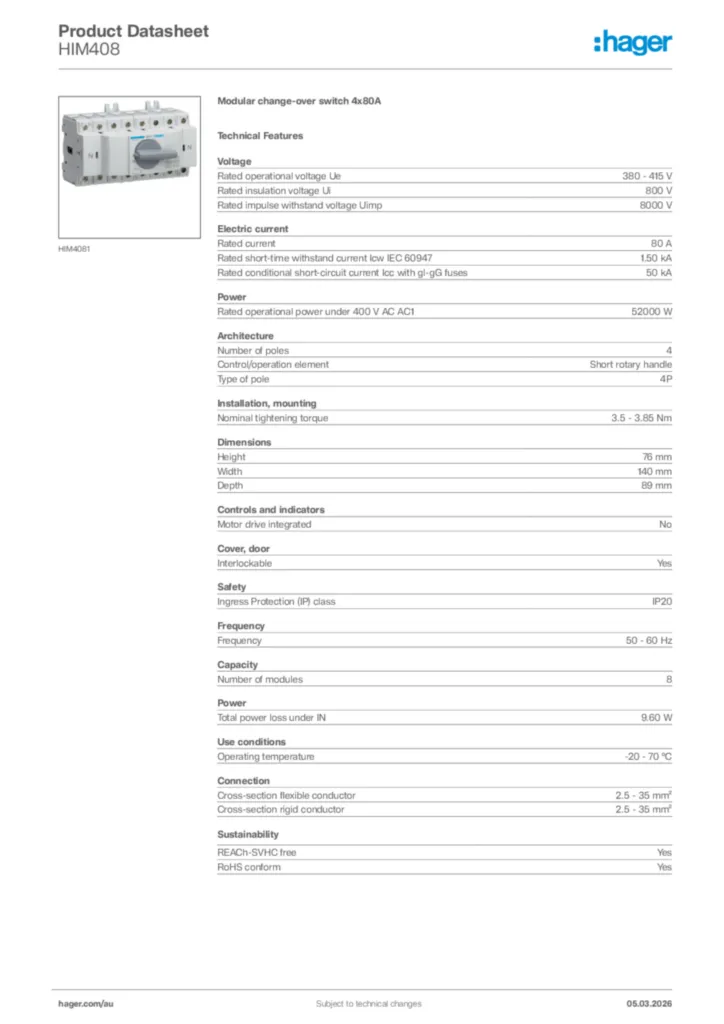

Modular change-over switch 4x80A HIM408
EAN
3250613140571
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable
Technical properties
Voltage
-
Rated operational voltage Ue380 - 415 V
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
Electric current
-
Rated current80 A
-
Rated short-time withstand current Icw IEC 609471,50 kA
-
Rated conditional short-circuit current Icc with gl-gG fuses50 kA
Power
-
Rated operational power under 400 V AC AC152000 W
-
Total power loss under IN9,60 W
Architecture
-
Number of poles4
-
Control/operation elementShort rotary handle
-
Type of pole4P
Dimensions
-
Height76 mm
-
Width140 mm
-
Depth89 mm
Controls and indicators
-
Motor drive integratedNo
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP20
Capacity
-
Number of modules8
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 70 °C
Connection
-
Cross-section flexible conductor2.5 - 35 mm²
-
Cross-section rigid conductor2.5 - 35 mm²
