HIB463M - Motorized transfer switch 4P 630A
HIB463M - Motorized transfer switch 4P 630A

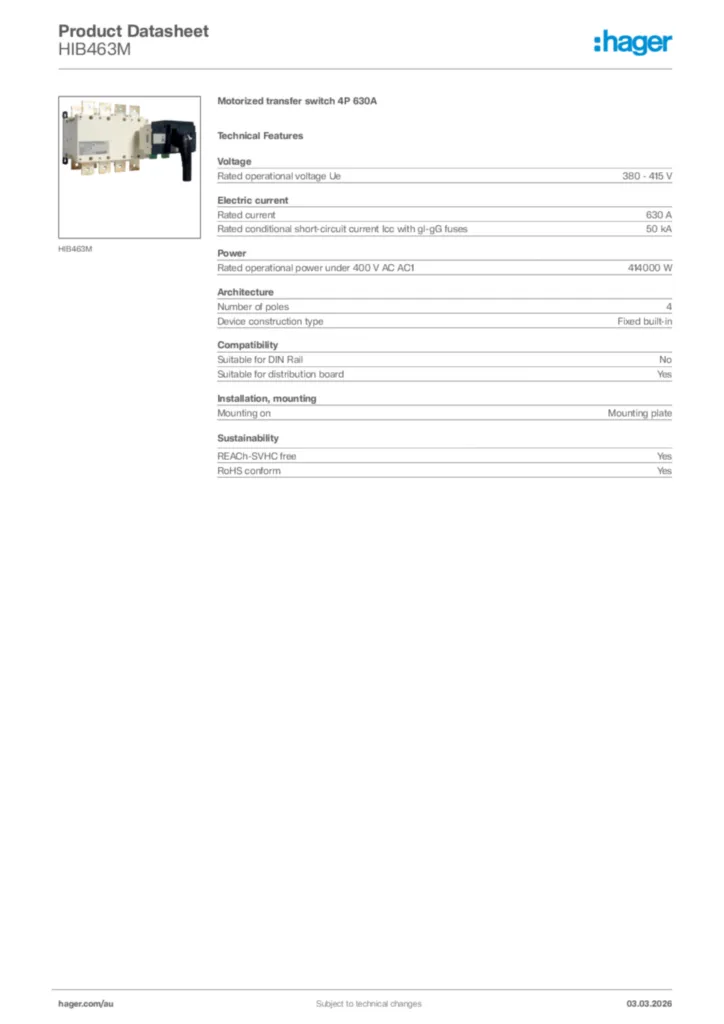

Motorized transfer switch 4P 630A HIB463M

EAN
3250613191399
Packaging
1 Piece

Technical properties

Architecture
  • Number of poles
    4 P
  • Type of pole
    4 P
  • Type of case
    Fixed built-in
Functions
  • Reversing switch
    Yes
Controls and indicators
  • Motor drive integrated
    Yes
Main electrical features
  • Rated operational voltage Ue
    380 / 415 V
  • Frequency
    50/60 Hz
Voltage
  • Rated insulation voltage
    1000 V
  • Rated impulse withstand voltage
    12000 V
Electric current
  • Rated operational current in AC21category B
    630 A
  • Acceptable current rating with AC22 category A
    630 A
  • Rated current
    630 A
  • Short-circuit current with gI-gG fuses
    50 kA
  • Rated short-time withstand current 1s
    10 kA
  • Rating current 10°C according to IEC 60947
    630 A
  • Rating current 15°C according to IEC 60947
    630 A
  • Rating current 20°C according to IEC 60947
    630 A
  • Rating current 25°C according to IEC 60947
    630 A
  • Rating current 30°C according to IEC 60947
    630 A
  • Rating current 35°C according to IEC 60947
    630 A
  • Rating current 40°C according to IEC 60947
    630 A
  • Rating current 45°C according to IEC 60947
    567 A
  • Rating current 5°C according to IEC 60947
    630 A
  • Rating current 50°C according to IEC 60947
    567 A
  • Rating current 55°C according to IEC 60947
    504 A
  • Rating current 60°C according to IEC 60947
    504 A
  • Rating current 65°C according to IEC 60947
    441 A
  • Rating current 70°C according to IEC 60947
    441 A
  • Rated operational current in AC21 category A
    630 A
  • Acceptable current rating with AC22 category B
    630 A
  • Rated operational current in AC23 category A
    500 A
  • Acceptable current rating with AC23 category B
    630 A
  • Conventional thermal current under enclosure at 40°C
    630 A
Power
  • Total power loss under IN
    129.6 W
  • Power loss per pole at In
    32.4 W
  • Contact rating with 400 V in AC1
    414 kW
Cover, door
  • Interlockable
    Yes
Connection
  • Type of connection
    Terminal
Equipment
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as normally open contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive optional
    No
Standards
  • Standard text
    IEC 60947-3 ; IEC 60947-6
  • European directive WEEE
    concerned
Safety
  • Protection index IP
    IP00
  • REACH conform
    Yes
  • RoHS conform
    Yes
  • Halogen free
    No
Use conditions
  • Altitude
    2000 m
  • Storage/transport temperature
    -40…70 °C
