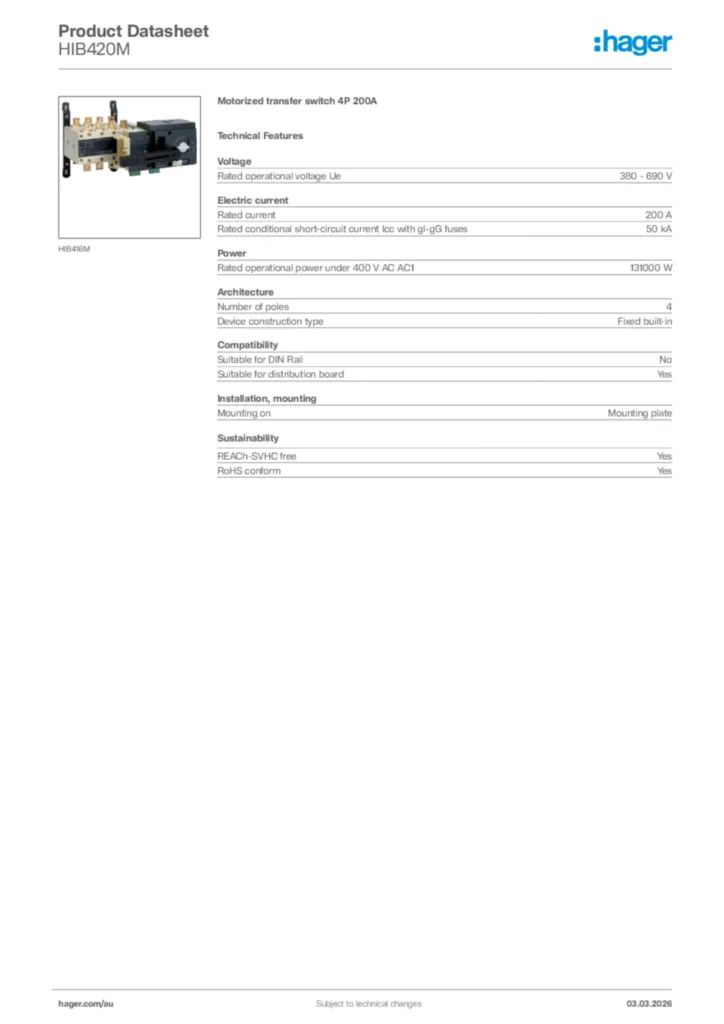

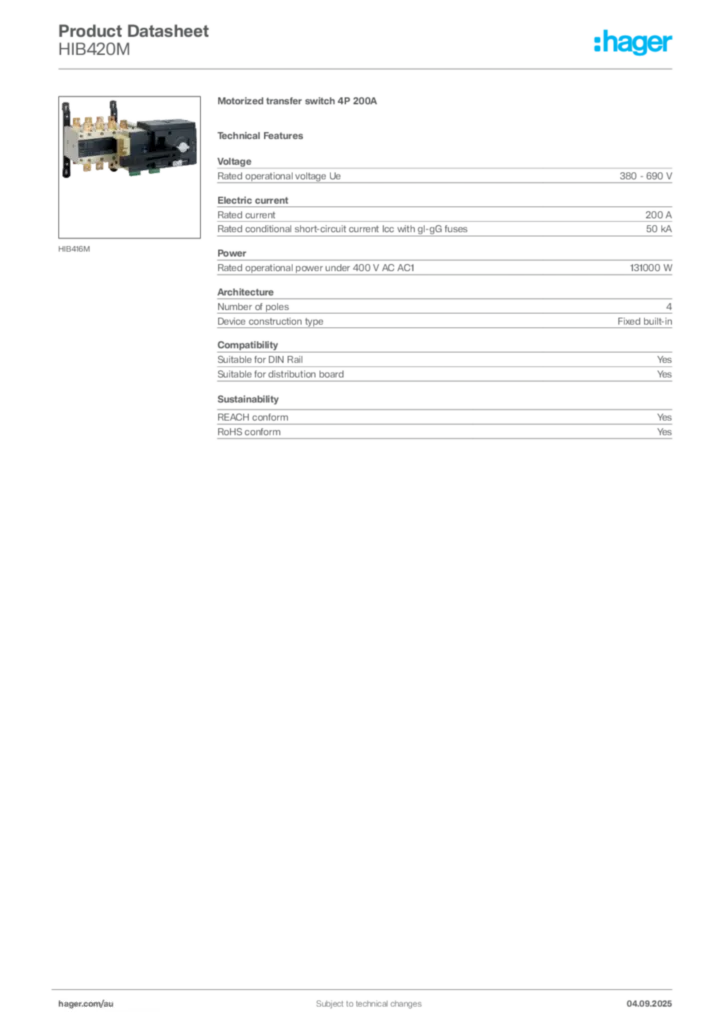

Motorized transfer switch 4P 200A HIB420M
EAN
3250613191368
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderNot applicable
-
Number of poles4 P
-
Type of pole4 P
-
Type of caseFixed built-in
Functions
-
Reversing switchYes
Controls and indicators
-
Motor drive integratedYes
Main electrical features
-
Rated operational voltage Ue380 / 690 V
-
Frequency50/60 Hz
Voltage
-
Rated insulation voltage800 V
-
Rated impulse withstand voltage8000 V
Electric current
-
Rated operational current in AC21category B200 A
-
Acceptable current rating with AC22 category A200 A
-
Rated current200 A
-
Short-circuit current with gI-gG fuses50 kA
-
Rated short-time withstand current 1s7 kA
-
Rating current 10°C according to IEC 60947200 A
-
Rating current 15°C according to IEC 60947200 A
-
Rating current 20°C according to IEC 60947200 A
-
Rating current 25°C according to IEC 60947200 A
-
Rating current 30°C according to IEC 60947200 A
-
Rating current 35°C according to IEC 60947200 A
-
Rating current 40°C according to IEC 60947200 A
-
Rating current 45°C according to IEC 60947180 A
-
Rating current 5°C according to IEC 60947200 A
-
Rating current 50°C according to IEC 60947180 A
-
Rating current 55°C according to IEC 60947160 A
-
Rating current 60°C according to IEC 60947160 A
-
Rating current 65°C according to IEC 60947140 A
-
Rating current 70°C according to IEC 60947140 A
-
Rated operational current in AC21 category A200 A
-
Acceptable current rating with AC22 category B200 A
-
Rated operational current in AC23 category A200 A
-
Acceptable current rating with AC23 category B200 A
-
Conventional thermal current under enclosure at 40°C200 A
Power
-
Total power loss under IN16.4 W
-
Power loss per pole at In4.1 W
-
Contact rating with 400 V in AC1131 kW
Cover, door
-
InterlockableYes
Installation, mounting
-
Tightening torque20 - 22 Nm
Connection
-
Type of connectionTerminal
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact1
-
Number of auxiliary contacts as change-over contact0
-
Motor drive optionalNo
Standards
-
Standard textIEC 60947-3 ; IEC 60947-6
-
European directive WEEEconcerned
Safety
-
Protection index IPIP00
Use conditions
-
Altitude2000 m
-
Storage/transport temperature-40…70 °C
