Moulded Case Circuit Breaker h3+ P250 Energy 3P3D 160A 25kA FTC

HHT160NR

  • Main Switchgear

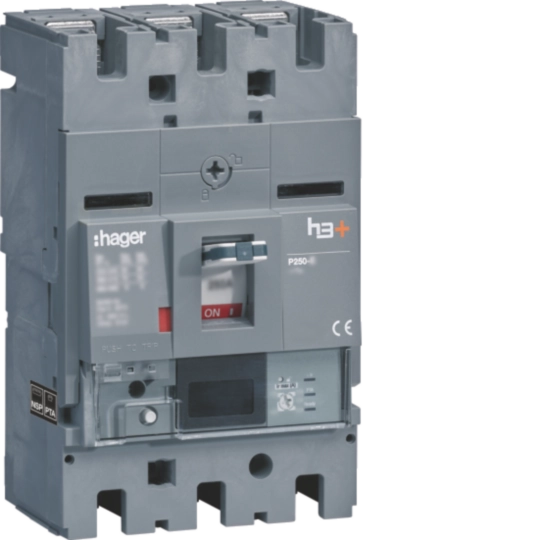

Moulded Case Circuit Breaker h3+ P250 Energy 3P3D 160A 25kA FTC HHT160NR

EAN
3250613212391
Packaging
1 Piece

You have to log in with your myHager profile to see prices and to order.

Add to a list
Add to a list

Login to create a product list

You need to be logged into your myHager account to create product lists

Create an account Sign in
  • Accessories
  • Technical properties
  • Environmental value
  • Documentations
  • More products

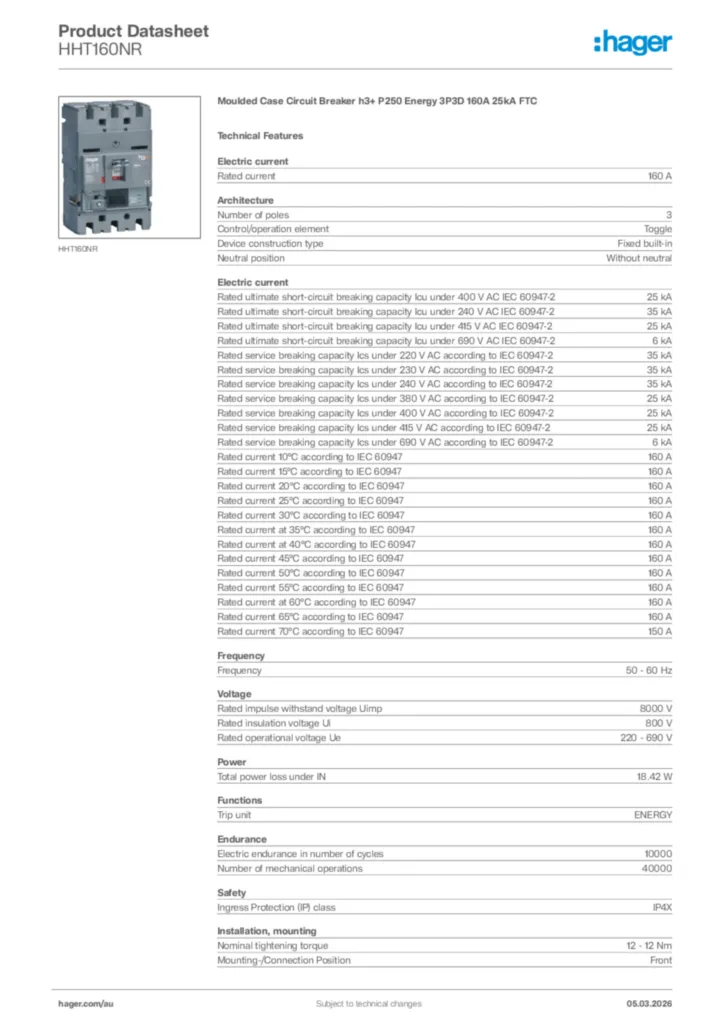

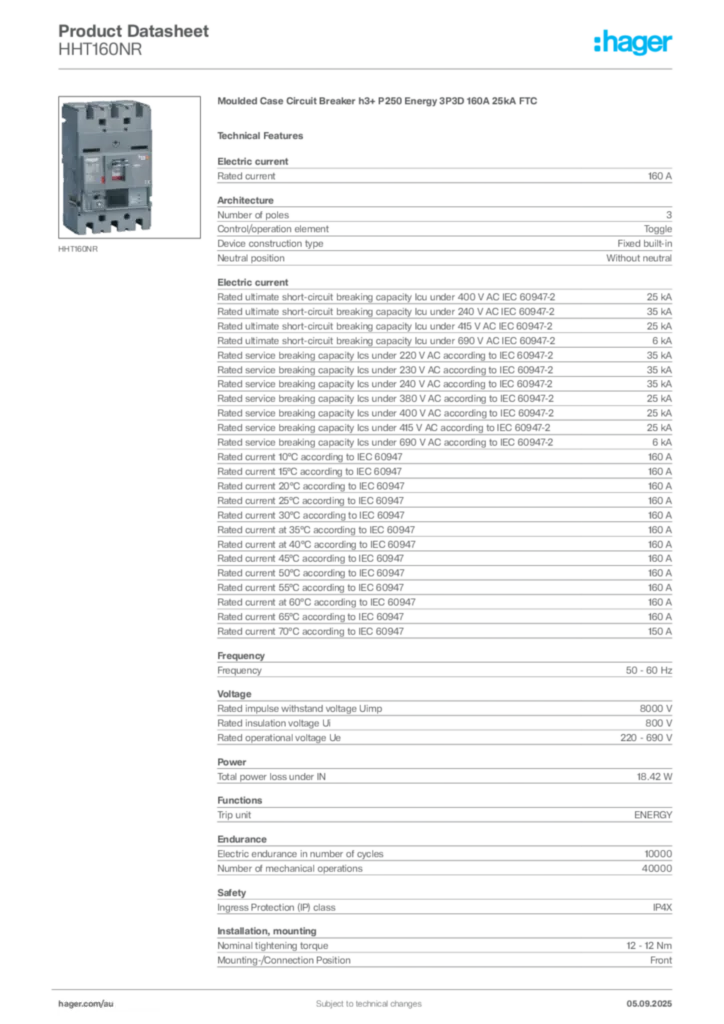

Download the data sheet

Complete your system

Optional accessories

  • Auxil­i­aries data cable adaptor 6 products available
  • Auxil­i­aries network func­tions 1 products available
  • Auxil­i­aries contact block 5 products available

Complete your system

  • Auxil­i­aries data cable adaptor
  • Auxil­i­aries network func­tions
  • Auxil­i­aries contact block
  • HTC130H

    OAC/PTA adaptor for h3+ length 1,20 m
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HTC140H

    CIP - 24 V Adaptor length 1,20 m
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HTC150H

    ZSI - Adaptor for h3+ length 1,20 m
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HTC330H

    CIP - Adaptor for h3+ length 0,5 m
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HTC340H

    CIP - Adaptor for h3+ length 1,5 m
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HTC370H

    CIP - Adaptor for h3+ length 10 m
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HTC320H

    COMMUNICATION Module with inputs and outputs
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXA027H

    Alarm contact NO-NC right side (x630/P630)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXA028H

    Alarm contact-Low level NO-NC right side (x630/P630)
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXS120H

    AX/AL Energy Counter
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXS121H

    AX/AL Auxiliary contact Energy 250VAC 125VDC
    EUR 0.00  / *
    Add to a list
    Add to a list
  • HXS122H

    AX/AL Energy - low level 125VAC 30VDC
    EUR 0.00  / *
    Add to a list
    Add to a list

Technical properties

Elec­tric current
  • Rated current
    160 A
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
    25 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
    35 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
    25 kA
  • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
    6 kA
  • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
    35 kA
  • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
    35 kA
  • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
    35 kA
  • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
    25 kA
  • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
    25 kA
  • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
    25 kA
  • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
    6 kA
  • Rated current 10°C according to IEC 60947
    160 A
  • Rated current 15°C according to IEC 60947
    160 A
  • Rated current 20°C according to IEC 60947
    160 A
  • Rated current 25°C according to IEC 60947
    160 A
  • Rated current 30°C according to IEC 60947
    160 A
  • Rated current at 35°C according to IEC 60947
    160 A
  • Rated current at 40°C according to IEC 60947
    160 A
  • Rated current 45°C according to IEC 60947
    160 A
  • Rated current 50°C according to IEC 60947
    160 A
  • Rated current 55°C according to IEC 60947
    160 A
  • Rated current at 60°C according to IEC 60947
    160 A
  • Rated current 65°C according to IEC 60947
    160 A
  • Rated current 70°C according to IEC 60947
    150 A
Archi­tec­ture
  • Number of poles
    3
  • Control/­op­er­a­tion element
    Toggle
  • Device construc­tion type
    Fixed built-in
  • Neutral posi­tion
    Without neutral
Frequency
  • Frequency
    50 - 60 Hz
Voltage
  • Rated impulse with­stand voltage Uimp
    8000 V
  • Rated insu­la­tion voltage Ui
    800 V
  • Rated oper­a­tional voltage Ue
    220 - 690 V
Func­tions
  • Trip unit
    ENERGY
Power
  • Total power loss under IN
    18,42 W
Endur­ance
  • Elec­tric endur­ance in number of cycles
    10000
  • Number of mech­an­ical oper­a­tions
    40000
Install­a­tion, mounting
  • Nominal tight­ening torque
    12 - 12 Nm
  • Mount­ing-/­Con­nec­tion Posi­tion
    Front
Safety
  • Ingress Protec­tion (IP) class
    IP4X
Connec­tion
  • Cross-sec­tion flex­ible conductor
    35 - 150 mm²
  • Cross-sec­tion rigid conductor
    35 - 185 mm²
Cover, door
  • Inter­lock­able
    Yes
Cable
  • Cable material
    Copper, Aluminium
Compat­ib­ility
  • Compat­ible with RDC AOB
    No
  • Suit­able for DIN Rail
    No
  • Suit­able for distri­bu­tion board
    Yes
Dimen­sions
  • Height
    165 mm
  • Width
    105 mm
  • Depth
    97 mm
Settings
  • Adjust­ment range short-term delayed short-­cir­cuit release
    94,5 - 1600,0 A
Elec­trical protec­tion
  • Long-­time over­load protec­tion (ltd): delay (tr)
    0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
  • Short-­time protec­tion (std): current (Isd)
    1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
  • Short-­time protec­tion (std): delay (tsd)
    50 ms, 100 ms, 200 ms, 300 ms, 400 ms
  • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
    3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11

Environmental value
