    Moulded Case Circuit Breaker h3+ P250 Energy 3P3D 100A 25kA FTC HHT100NR

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Moulded Case Circuit Breaker h3+ P250 Energy 3P3D 100A 25kA FTC

    HHT100NR

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Optional accessories

    • Auxil­i­aries contact block 5 products available
    • Auxil­i­aries data cable adaptor 6 products available
    • Elec­trical accessories for low-­voltage compon­ents 1 products available
    • Auxil­i­aries network func­tions 1 products available

    Complete your system

    • Auxil­i­aries contact block
    • Auxil­i­aries data cable adaptor
    • Elec­trical accessories for low-­voltage compon­ents
    • Auxil­i­aries network func­tions
    • HXS122H

      AX/AL Energy - low level 125VAC 30VDC
      EUR 0.00  / *
    • HXS121H

      AX/AL Auxiliary contact Energy 250VAC 125VDC
      EUR 0.00  / *
    • HXS120H

      AX/AL Energy Counter
      EUR 0.00  / *
    • HXA028H

      Alarm contact-Low level NO-NC right side (x630/P630)
      EUR 0.00  / *
    • HXA027H

      Alarm contact NO-NC right side (x630/P630)
      EUR 0.00  / *
    • HTC370H

      CIP - Adaptor for h3+ length 10 m
      EUR 0.00  / *
    • HTC340H

      CIP - Adaptor for h3+ length 1, 5 m
      EUR 0.00  / *
    • HTC330H

      CIP - Adaptor for h3+ length 0, 5 m
      EUR 0.00  / *
    • HTC150H

      ZSI - Adaptor for h3+ length 1, 20 m
      EUR 0.00  / *
    • HTC140H

      CIP - 24 V Adaptor length 1, 20 m
      EUR 0.00  / *
    • HTC130H

      OAC/PTA adaptor for h3+ length 1, 20 m
      EUR 0.00  / *
    • HTD210H

      Display for Energy MCCB
      EUR 0.00  / *
    • HTC320H

      COMMUNICATION Module with inputs and outputs
      EUR 0.00  / *

    Technical properties

    Elec­tric current
    • Rated current
      100 A
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 400 V AC IEC 60947-2
      25 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 240 V AC IEC 60947-2
      35 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 415 V AC IEC 60947-2
      25 kA
    • Rated ulti­mate short-­cir­cuit breaking capa­city Icu under 690 V AC IEC 60947-2
      6 kA
    • Rated service breaking capa­city Ics under 220 V AC according to IEC 60947-2
      35 kA
    • Rated service breaking capa­city Ics under 230 V AC according to IEC 60947-2
      35 kA
    • Rated service breaking capa­city Ics under 240 V AC according to IEC 60947-2
      35 kA
    • Rated service breaking capa­city Ics under 380 V AC according to IEC 60947-2
      25 kA
    • Rated service breaking capa­city Ics under 400 V AC according to IEC 60947-2
      25 kA
    • Rated service breaking capa­city Ics under 415 V AC according to IEC 60947-2
      25 kA
    • Rated service breaking capa­city Ics under 690 V AC according to IEC 60947-2
      6 kA
    • Rated current 10°C according to IEC 60947
      100 A
    • Rated current 15°C according to IEC 60947
      100 A
    • Rated current 20°C according to IEC 60947
      100 A
    • Rated current 25°C according to IEC 60947
      100 A
    • Rated current 30°C according to IEC 60947
      100 A
    • Rated current at 35°C according to IEC 60947
      100 A
    • Rated current at 40°C according to IEC 60947
      100 A
    • Rated current 45°C according to IEC 60947
      100 A
    • Rated current 50°C according to IEC 60947
      100 A
    • Rated current 55°C according to IEC 60947
      100 A
    • Rated current at 60°C according to IEC 60947
      100 A
    • Rated current 65°C according to IEC 60947
      100 A
    • Rated current 70°C according to IEC 60947
      100 A
    Archi­tec­ture
    • Number of poles
      3
    • Control/­op­er­a­tion element
      Toggle
    • Device construc­tion type
      Fixed built-in
    • Neutral posi­tion
      Without neutral
    Frequency
    • Frequency
      50 - 60 Hz
    Voltage
    • Rated impulse with­stand voltage Uimp
      8000 V
    • Rated insu­la­tion voltage Ui
      800 V
    • Rated oper­a­tional voltage Ue
      220 - 690 V
    Func­tions
    • Trip unit
      ENERGY
    Power
    • Total power loss under IN
      7,20 W
    Endur­ance
    • Elec­tric endur­ance in number of cycles
      10000
    • Number of mech­an­ical oper­a­tions
      40000
    Install­a­tion, mounting
    • Nominal tight­ening torque
      12 - 12 Nm
    • Mount­ing-/­Con­nec­tion Posi­tion
      Front
    Safety
    • Ingress Protec­tion (IP) class
      IP4X
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      35 - 150 mm²
    • Cross-sec­tion rigid conductor
      35 - 185 mm²
    Cover, door
    • Inter­lock­able
      Yes
    Cable
    • Cable material
      Copper, Aluminium
    Compat­ib­ility
    • Compat­ible with RDC AOB
      No
    • Suit­able for DIN Rail
      No
    • Suit­able for distri­bu­tion board
      Yes
    Dimen­sions
    • Height
      165 mm
    • Width
      105 mm
    • Depth
      97 mm
    Settings
    • Adjust­ment range short-term delayed short-­cir­cuit release
      60 - 1000 A
    Elec­trical protec­tion
    • Long-­time over­load protec­tion (ltd): delay (tr)
      0.5 s, 1.5 s, 2.5 s, 5 s, 7.5 s, 9 s, 10 s, 12 s, 14 s, 16 s
    • Short-­time protec­tion (std): current (Isd)
      1.5, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10
    • Short-­time protec­tion (std): delay (tsd)
      50 ms, 100 ms, 200 ms, 300 ms, 400 ms
    • Instant­an­eous protec­tion (li): dial setting coef­fi­cient
      3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7, 7.5, 8, 8.5, 9, 9.5, 10, 10.5, 11, 11.5, 12, 12.5, 13, 13.5, 14, 14.5, 15

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    Hager REACH declaration HHT100NR
    PDF
    RoHS report HHT100NR
    PDF

    Downloads

    • Product image

      Image HHT100NR | Hager Australia

      Product Image HHT100NR

    • Product datasheet

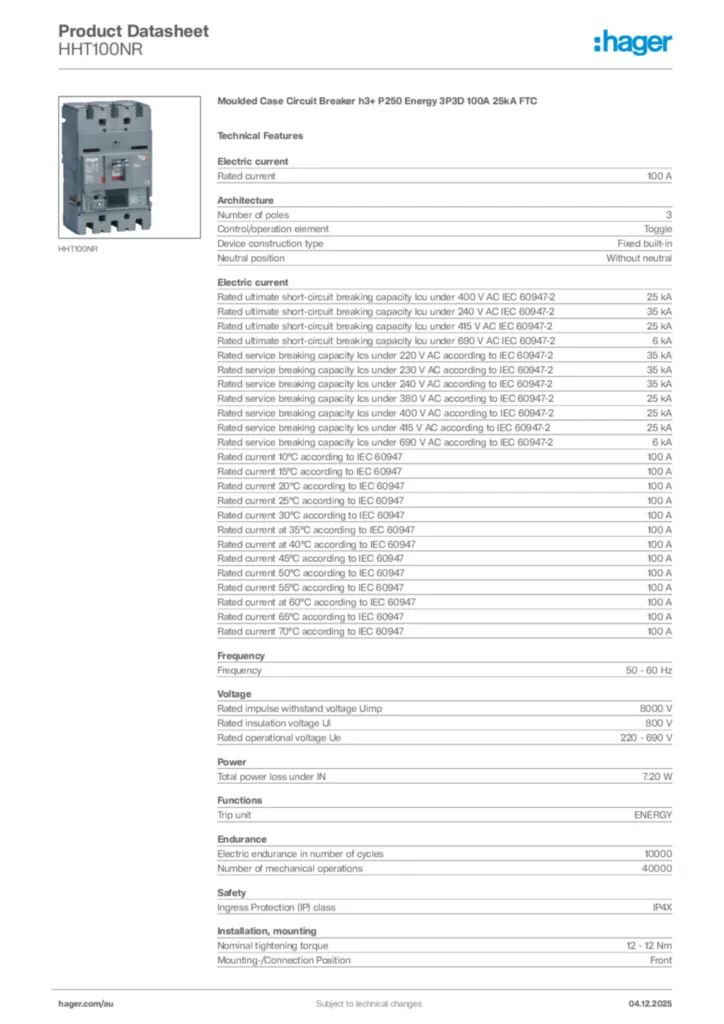

      Image Hager Product data sheet HHT100NR | Hager Australia

      Hager Product data sheet HHT100NR

      Moulded Case Circuit Breaker h3+ P250 Energy 3P3D 100A 25kA FTC

      PDF

    • Operating manual

      Image Operating manual International 2020-09-21 | Hager Australia

      Operating manual International 2020-09-21

      PDF
      13,53 MB

    • Installation manual

      Image Installation manual International 2019-10-24 | Hager Australia

      Installation manual International 2019-10-24

      PDF
      2,93 MB
      Image Manual for moulded case circuit breaker h3+ P250 (Date: 2020-03) | Hager Australia

      Manual for moulded case circuit breaker h3+ P250 (Date: 2020-03)

      Installation manual International 2015-11-02

      PDF
      4,67 MB

    • Brochure

      Image Hager h3+ MCCB | Hager Australia

      Hager h3+ MCCB

      PDF
      8,80 MB

    • STEP files

      Image CAD file for MCCB 250A 3P | Hager Australia

      CAD file for MCCB 250A 3P

      STEP files International 2023-11-24

      STP
      640,83 kB

    • Handbook

      Image Technical catalogue | Hager Australia

      Technical catalogue

      h3+ Moulded Case Circuit breakers up to 630A

      PDF
      48,86 MB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2022-04-25

      PDF
      349,41 kB
      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2022-04-25

      PDF
      461,97 kB
