25kA Fixed Thermal, Fixed Magnetic

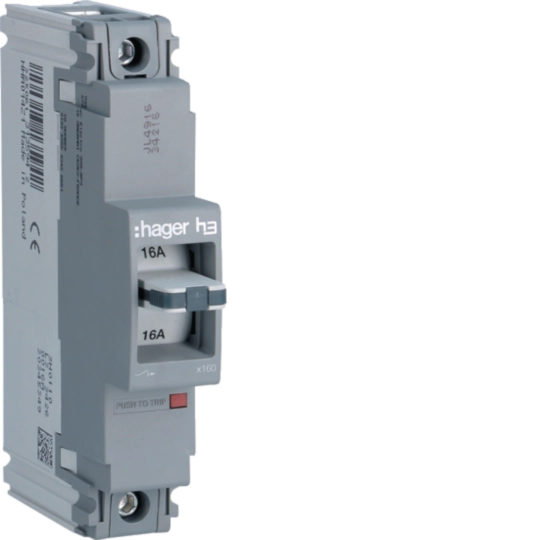

Moulded Case Circuit Breaker h3 x160 TM FIX 1P1D 16A 25kA CTC HHA014Z

EAN

3250613135942

Packaging

1 Piece

Technical properties
Documentations
More products

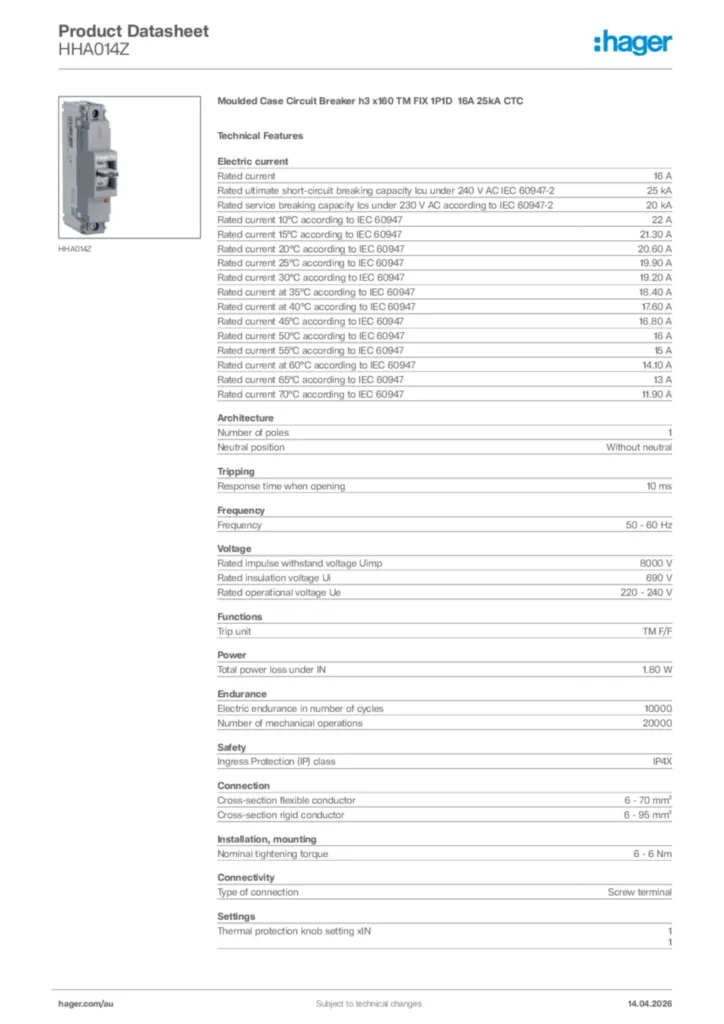

Download the data sheet

Technical properties

Neutral position

without neutral
Number of protected poles

1
Number of poles

1 P
Type of pole

1P1D

Trip Unit

TM F/F
Integrated earth fault protection

No
Concurrently switching N-neutral

No

Motor drive integrated

No

Rated operational voltage Ue

220 / 240 V
Type of supply voltage

AC
Frequency

50/60 Hz

Rated insulation voltage

690 V
Rated impulse withstand voltage

8 kV
With under voltage release

No

Rated current

16 A
Thermal protection nob setting xIN

1
Rating current 10°C according to IEC 60947

22 A
Rating current 15°C according to IEC 60947

21.3 A
Rating current 20°C according to IEC 60947

20.6 A
Rating current 25°C according to IEC 60947

19.9 A
Rating current 30°C according to IEC 60947

19.2 A
Rating current 35°C according to IEC 60947

18.4 A
Rating current 40°C according to IEC 60947

17.6 A
Rating current 45°C according to IEC 60947

16.8 A
Rating current 50°C according to IEC 60947

16 A
Rating current 55°C according to IEC 60947

15 A
Rating current 60°C according to IEC 60947

14.1 A
Rating current 65°C according to IEC 60947

13 A
Rating current 70°C according to IEC 60947

11.9 A
Breaking capacity on 1 pole for IT 230V NF 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 230V AC IEC 60947-2

25 kA
Rated ultimate short-circuit breaking capacity Icu under 240V AC IEC 60947-2

25 kA
Range of the thermal adjustment

16 A
Rated ultimate short-circuit breaking capacity Icu under 220V AC IEC 60947-2

25 kA

Depth of installed product

68 mm
Height of installed product

130 mm
Width of installed product

25 mm

Frequency

50 to 60 Hz

Total power loss under IN

1.8 W
Power loss per pole at In

1.8 W

Electric endurance in number of cycles

1000
Number of mechanical operations

4000

Tightening torque

6Nm

Connection cross-sect. flexible conductor

6 / 70mm²
Connection cross-sect. rigid cable

6 / 95mm²
Type of connection

with screw

Cable Material

Cu

Range of the magnetic adjustment

600 A

Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as normally open contact

0
Number of auxiliary contacts as change-over contact

0
Can be accessorized

Yes

Category of use

A

Standard text

IEC 60947-2

REACH conform

Yes
RoHS conform

Yes
Halogen free

No

Degree of pollution according to IEC 60664 / IEC 60947-2

3
Altitude

2000 m

Temperature of calibration

50 °C
