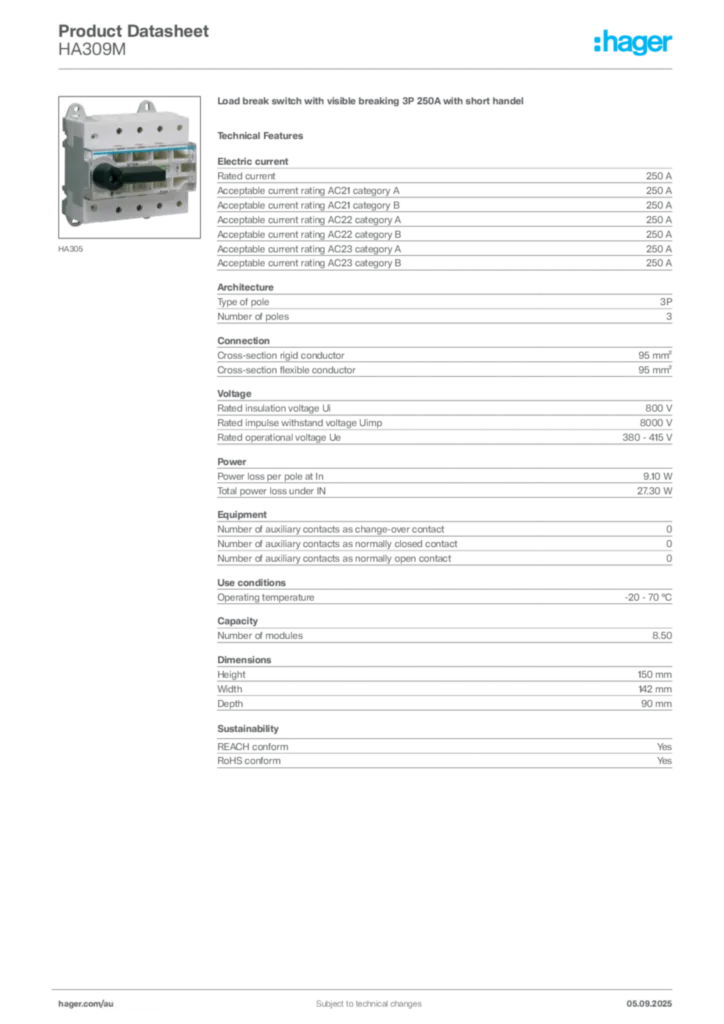

Load break switch with visible breaking 3P 250A with short handel HA309M
EAN
3250613114213
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Number of poles3 P
-
Type of pole3 P
Configuration
-
Number of modules8.5
Main electrical features
-
Rated operational voltage Ue380 / 415 V
Voltage
-
Rated insulation voltage800 V
-
Rated impulse withstand voltage8000 V
Electric current
-
Rated operational current in AC21category B250 A
-
Acceptable current rating with AC22 category A250 A
-
Rated current250 A
-
Short-circuit current with gI-gG fuses50 kA
-
Rated operational current in AC21 category A250 A
-
Acceptable current rating with AC22 category B250 A
-
Rated operational current in AC23 category A250 A
-
Acceptable current rating with AC23 category B250 A
Power
-
Total power loss under IN27.3 W
-
Power loss per pole at In9.1 W
Installation, mounting
-
Fixation typeDIN rail monting or back plate monting
Connection
-
Connection cross-sect. rigid cable95mm²
-
Type of connectionTerminal
Equipment
-
Width available for insulation connection95 mm²
Standards
-
European directive WEEEnot concerned
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-20…70 °C
