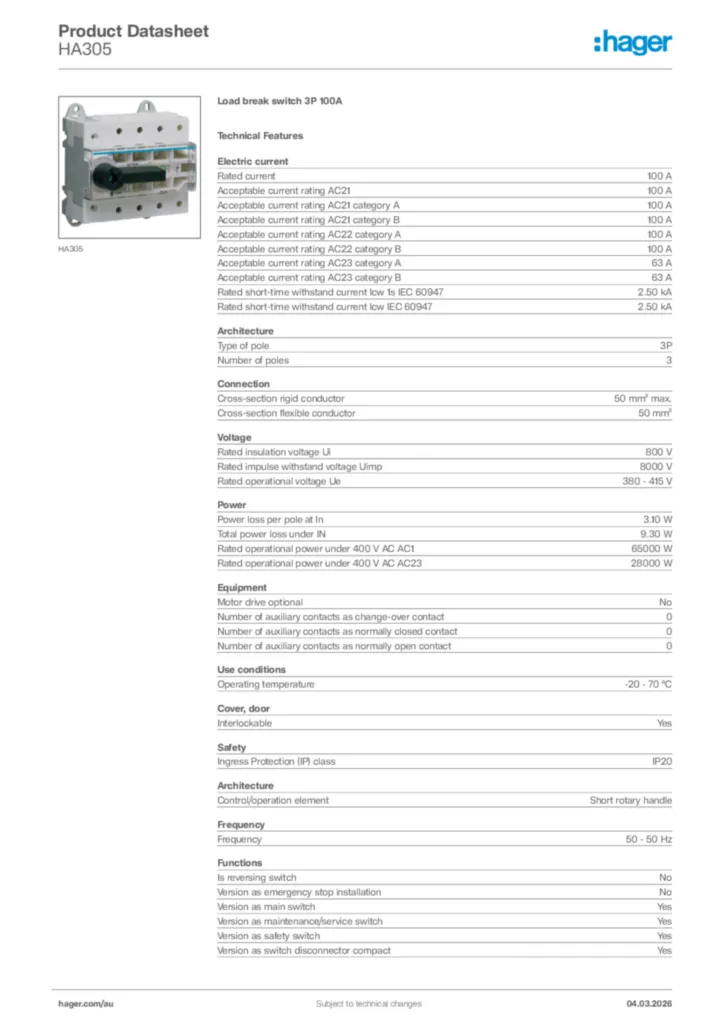

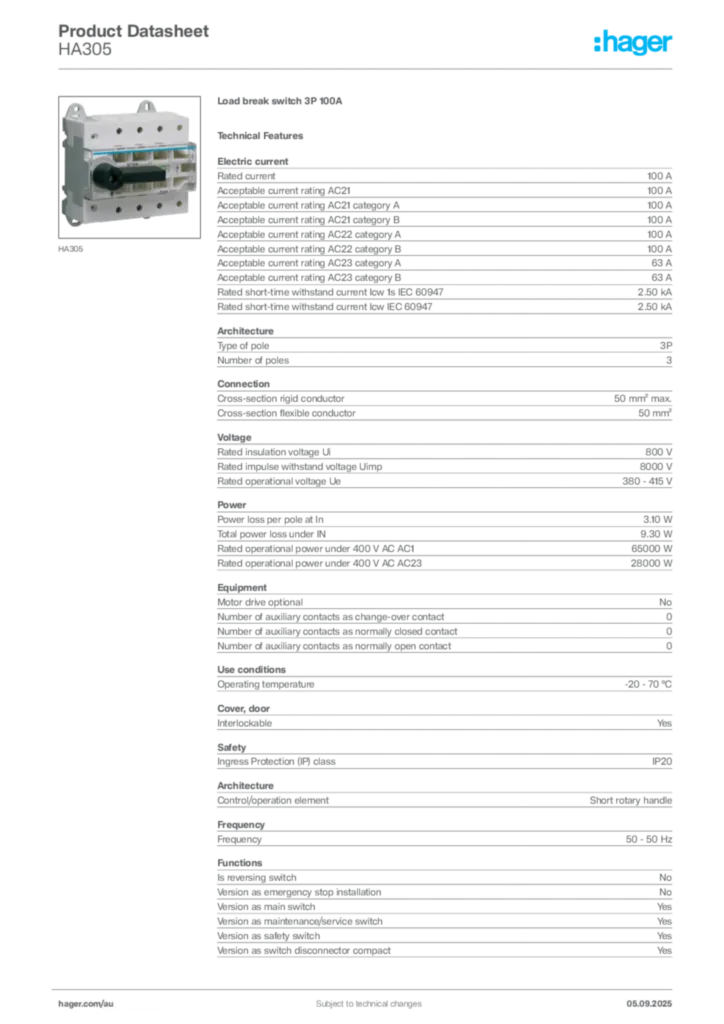

Load break switch 3P 100A HA305
EAN
3250613113056
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Architecture
-
Type of orderShort thumb-grip
-
Number of poles3 P
-
Type of pole3 P
-
Type of caseFixed built-in
Functions
-
Reversing switchNo
Configuration
-
Number of modules6
Controls and indicators
-
Motor drive integratedNo
Main electrical features
-
Rated operational voltage Ue380 / 415 V
-
Frequency50 Hz
Voltage
-
Rated insulation voltage800 V
-
Rated impulse withstand voltage8000 V
Electric current
-
Rated operational current in AC21category B100 A
-
Acceptable current rating with AC22 category A100 A
-
Cut off current10 kA
-
Rated current100 A
-
Short-circuit current with gI-gG fuses50 kA
-
Rated short-time withstand current 1s2.5 kA
-
Rated operational current in AC21 category A100 A
-
Acceptable current rating with AC22 category B100 A
-
Rated operational current in AC23 category A63 A
-
Acceptable current rating with AC23 category B63 A
Dimensions
-
Width of installed product108 mm
Power
-
Total power loss under IN9.3 W
-
Power loss per pole at In3.1 W
-
Contact rating with 400 V in AC165 kW
Cover, door
-
InterlockableYes
Installation, mounting
-
Tightening torque6 - 6.6 Nm
-
Fixation typeDIN rail monting or back plate monting
Connection
-
Connection cross-sect. rigid cable50mm² max.
-
Type of connectionwith screw
Equipment
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as normally open contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive optionalNo
Safety
-
REACH conformYes
-
RoHS conformYes
-
Halogen freeNo
Use conditions
-
Operating temperature-20…70 °C
