Symmetrical Flasher EZN005

EAN

3250612469956

Packaging

1 Piece

Technical properties
Documentations

Download the data sheet

Technical properties

Switching cycles

min. 50000
Function

Functions: On delay, Off delay, single shot leading edge/single shot trailing edge, pulse shaping, flashing symmetrically, contact open/closed

Switch mode

change-over contact, usable as NC or NO
Number of modules

1

Nominal voltage

12 ... 48 V=/12 ... 230 V~
Frequency

50/60 Hz

Max. power with cos phi 0.6

5 A
Switching current at cos φ = 0.6

max. 5 A

Depth of installed product

58 mm
Height of installed product

85 mm
Length

64 mm
Width of installed product

17.5 mm
Width of rail mounted device (RMD)

1 modules

Power consumed

15 VA
Power consumption (operation)

15 VA
Total power loss under IN

2 W
Loss power at full load

≈ 2 W
Power dissipation per coil

0.5 W

Fluorescent lamps

max. 600 VA

LED

with LED for operating status display

Max. power with incandescent lamps

450 W
230 V incandescent lamps and halogen lamps

max. 450 W

Mounting type

din-Rail
Installation mode

for mounting on DIN rail

Connection cross-sect. flexible conductor

1 / 6mm²
Connection cross-sect. rigid cable

1,5 / 10mm²
Conductor cross-section (flexible)

1…6 mm²
Conductor cross-section (rigid)

1.5…10 mm²
Number of contacts

1
Type of contacts

1 changeover
Type of connection

with screw terminals
Type of connection

with screw

Delay ON

0.1 s
Time delayed range

0.1 s... 10 h
Delay time, adjustable

0.1 s…10 h
Delay OFF

0.1 s
Setting

with 2 potentiometers for setting of delay time

Operating temperature

-20…50 °C
Storage/transport temperature

-40…70 °C

Special note text

Notice: Not suitable for connection to safety extra-low voltage (SELV).

Downloads

Product image

Product Image EZN005

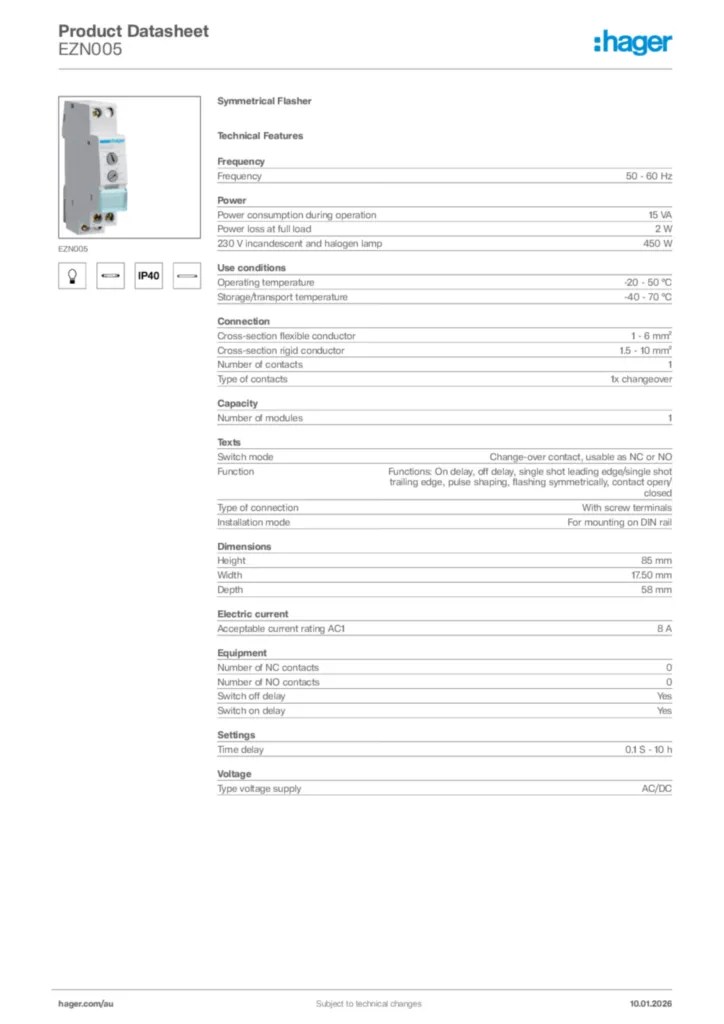

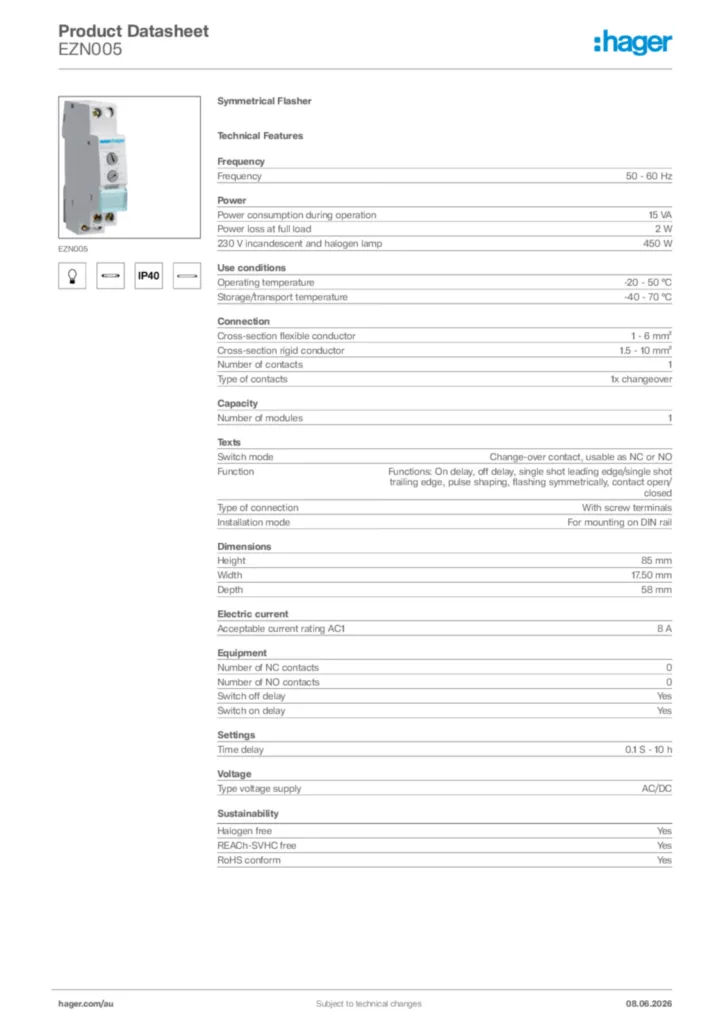

Product data sheet
