Hager The Hager Humfree Modular Contactor 25A 3NO 230V~50/60Hz delivers silent, reliable switching for residential and commercial control. Three normally open poles handle loads up to 25A, ideal for lighting, heating, and ventilation. The 230V AC coil integrates easily with mains control, while the compact DIN-rail modular design saves space and simplifies installation in distribution boards.
EAN
3250612400102
Packaging
1 Piece
Humfree Modular Contactor 25A 3NO 230V~ 50/60Hz ESC325S
Spare part: check availability with your electrical wholesaler
Follow-up products :
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Mechanic accessories for low-voltage components 1 products available -
Auxiliary device for distribution board devices 1 products available
Technical properties
Connection
-
Type of contacts3NO
-
Number of contacts3
-
Cross-section flexible conductor1 - 6 mm²
-
Cross-section rigid conductor1 - 10 mm²
Electric current
-
Rated current25 A
-
Acceptable current rating AC38,5 A
Capacity
-
Number of modules2
Frequency
-
Frequency50 - 50 Hz
Voltage
-
Rated impulse withstand voltage Uimp4000 V
-
Rated insulation voltage Ui440 V
-
Rated operational voltage Ue400 - 400 V
-
Command voltage AC230 - 230 V
-
Command voltage DC0 - 0 V
Use conditions
-
Operating temperature-10 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Use
-
Category of useAC-7a/AC-7b
Endurance
-
Number of mechanical operations100000
-
Electric endurance in number of cycles30000
Texts
-
Safety hintHumfree contactors are not suitable for intensive use cases (powered 24/7) and in these cases industrial contactors must be used.
Power
-
Total power loss under IN7,50 W
-
Inrush power absorbed3,20 VA
Dimensions
-
Height83 mm
-
Width35,75 mm
-
Depth60 mm
Equipment
-
Number of NO contacts3
-
Number of NC contacts0
-
With switch for manual switchNo
Installation, mounting
-
Nominal tightening torque1,20 - 1,20 Nm
Architecture
-
Number of poles3
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

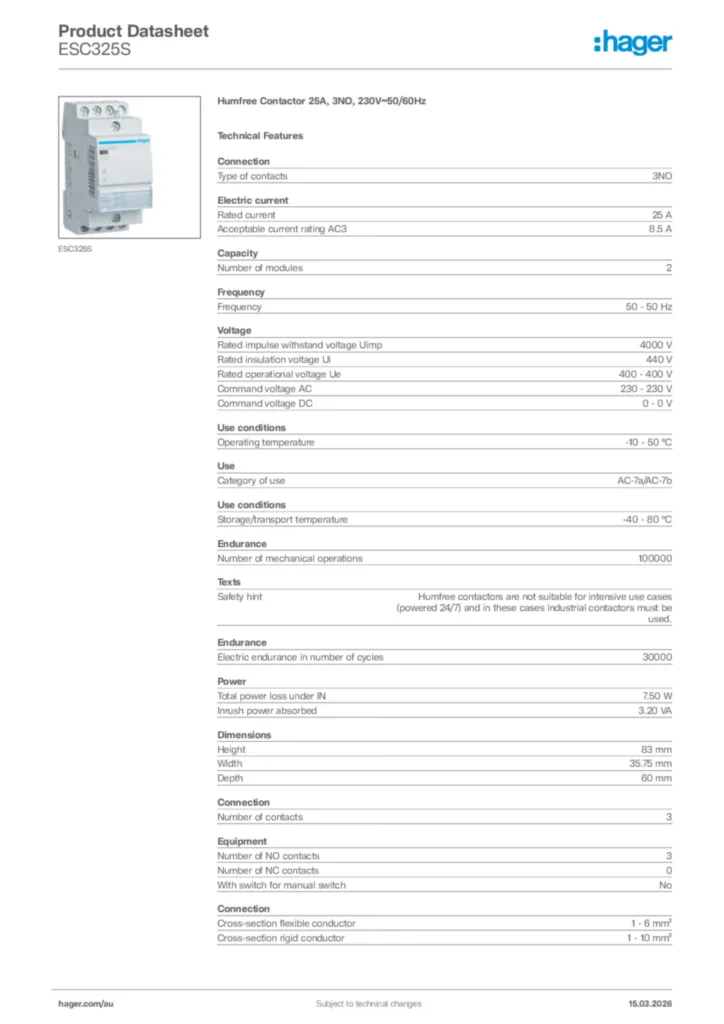

Hager Product data sheet ESC325S
