ESC125 - Contactor 25A, 1NO, 230V~50/60Hz
ESC125 - Contactor 25A, 1NO, 230V~50/60Hz

Contactor 25A, 1NO, 230V~50/60Hz ESC125

EAN
3250612400553
Packaging
12 PCEs

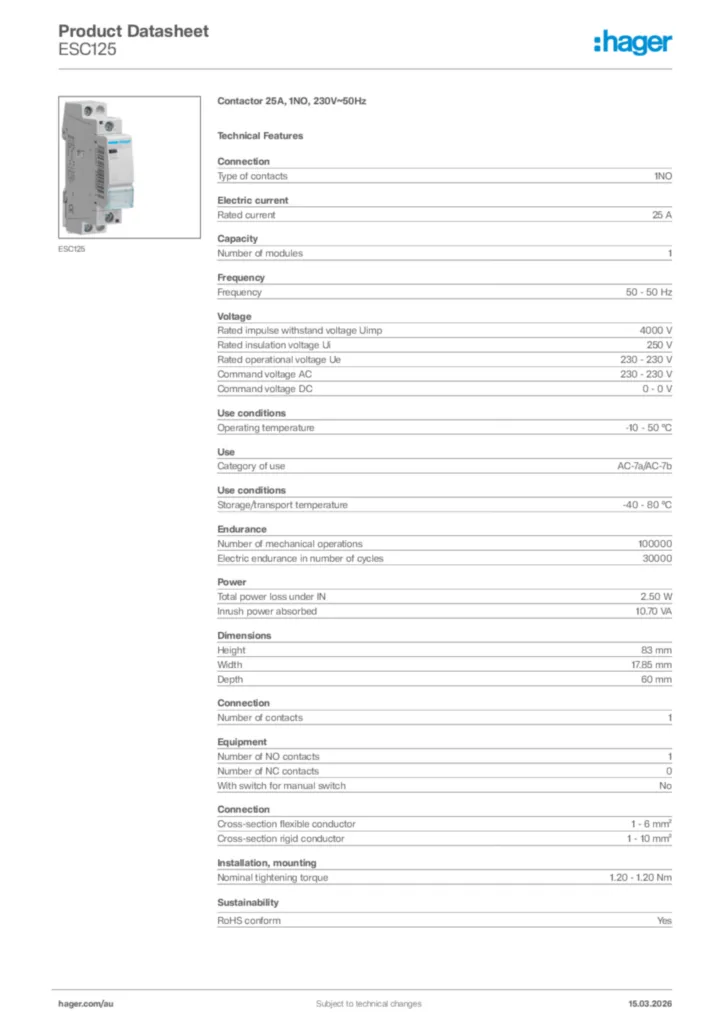

Technical properties

Architecture
  • Type of order
    Not applicable
  • Number of poles
    1 P
Configuration
  • Number of modules
    1
Main electrical features
  • Rated operational voltage Ue
    230 V
  • Frequency
    50 Hz
Voltage
  • Rated insulation voltage
    250 V
  • DC control voltage
    0 V
  • Command voltage AC
    230 V
  • Rated impulse withstand voltage
    4 kV
Electric current
  • Rated current
    25 A
  • Thermal rated current outside of housings
    25 A
  • Acceptable current load with AC7 category A
    25 A
  • Acceptable current load with AC7 category B
    8.5 A
Dimensions
  • Depth of installed product
    60 mm
  • Height of installed product
    83 mm
  • Width of installed product
    17.85 mm
Power
  • Inrush power absorbed
    7.4 W
  • Operating consumption
    1.8 W
  • Total power loss under IN
    2.1 W
  • Power loss per contact
    1.5 W
  • Power dissipation per coil
    0.6 W
  • Contact rating with 230 V in AC7 category A
    4.6 kW
  • Contact rating with 230 V in AC7 category B
    880 W
Tripping
  • Time of response when opening
    15 ms
  • Time of response when closing
    25 ms
Resistance
  • Winding resistance
    5500 Ω
Endurance
  • Electric endurance in number of cycles
    30000
  • Number of mechanical operations
    1000000
Fluorescent bulbs control
  • Max. power with fluorescent parallel lamps
    500 VA
  • Fluorescent lamps in duo circuit
    990 VA
  • Max. load fluorescent lamp
    490 VA
Incandescent bulbs control
  • Max. power with incandescent lamps
    1100 W
Installation, mounting
  • Tightening torque
    1,2Nm
Connection
  • Connection cross-sect. flexible conductor
    1 / 6mm²
  • Connection cross-sect. rigid cable
    1 / 10mm²
  • Number of contacts
    1
  • Type of contacts
    1NO
  • Connection cross-section of the control cable solid
    1 / 10 mm²
Equipment
  • Can be accessorized
    Yes
Use
  • Local operation/hand operation
    No
Standards
  • European directive WEEE
    not concerned
Safety
  • Protection class
    isol.class II
Use conditions
  • Operating temperature
    -10…50 °C
  • Storage/transport temperature
    -40…80 °C
