The Hager 2-pole Changeover Switch 63A I-0-II enables safe manual transfer between two 230 V AC sources via I‑0‑II positions. Rated 63 A, Ui 500 V, Uimp 4 kV, Icc 6 kA (with gG fuses). Compact 4 modules, IP20, 50/60 Hz. High endurance: 100,000 mechanical and 5,000 AC-21 cycles. Accepts 25 mm² rigid/16 mm² flexible conductors; tightening torque 2.9 Nm. Suitable for DIN rail mounting in residential and commercial switchboards and compliant electrical distribution applications.
EAN
9329659019845
Packaging
1 Piece
Hager Emergency Test Kit Enclosed 2NC 25A 230V 10-180 min Surface IP30 EMERG2WA
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Dimensions
-
Height95 mm
-
Width55 mm
-
Depth160 mm
Specific identificaton attributes for Protection
-
Filter Type productDistributor enclosure and contactor relay
Frequency
-
Frequency50 - 50 Hz
Safety
-
Ingress Protection (IP) classIP30
Materials
-
MaterialPlastic
Installation, mounting
-
Mounting onSurface mounting
Connection
-
Number of contacts2
-
Type of contacts2NC
Internal use only
-
Number of half modules of 17,5 mm4
Equipment
-
Number of keys1
-
With lockYes
Capacity
-
Number of modules2
Electric current
-
Rated current25 A
Compatibility
-
Suitable for DIN RailNo
Connectivity
-
Type of connectionScrew terminal
Voltage
-
Command voltage for 50 Hz230 - 230 V
Settings
-
Time delay10 Min - 180 Min
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

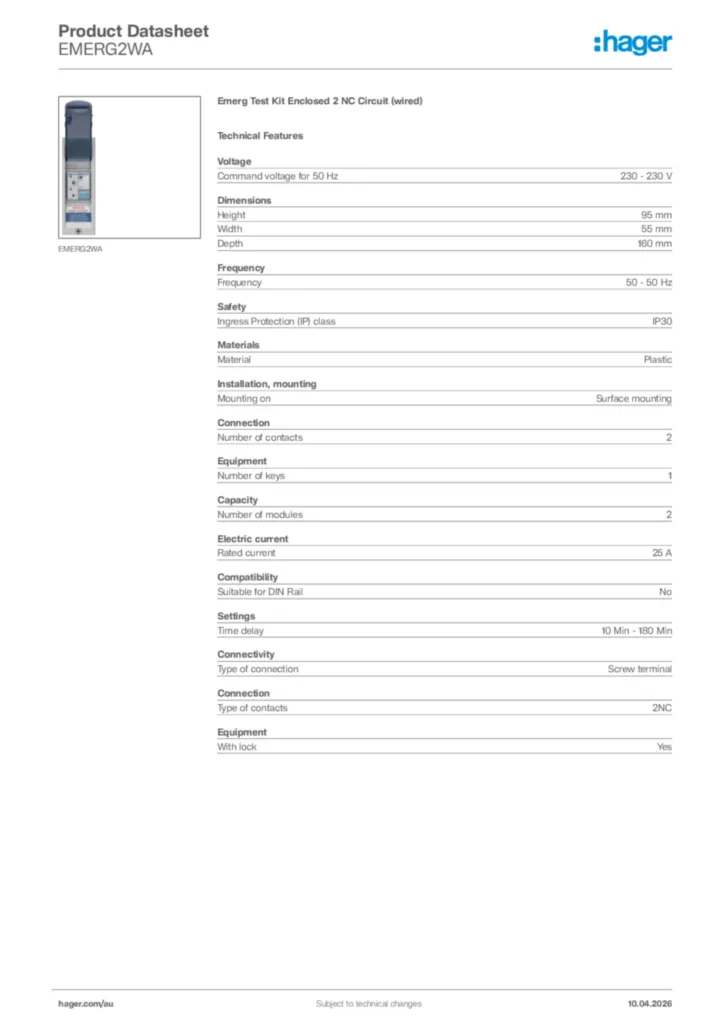

Hager Product data sheet EMERG2WA
Emerg Test Kit Enclosed 2 NC Circuit (wired)
PDF -
Manual
User Instructions
EMERGKits
PDF468,57 kB -
Flyer
Emergency Lighting Test Kits
PDF628,84 kB
