Analogue Time Switches - Panel Mount

Time switch 72X72 24H + reserve EH711

EAN

3250612287116

Packaging

1 Piece

Technical properties
Documentations
More products

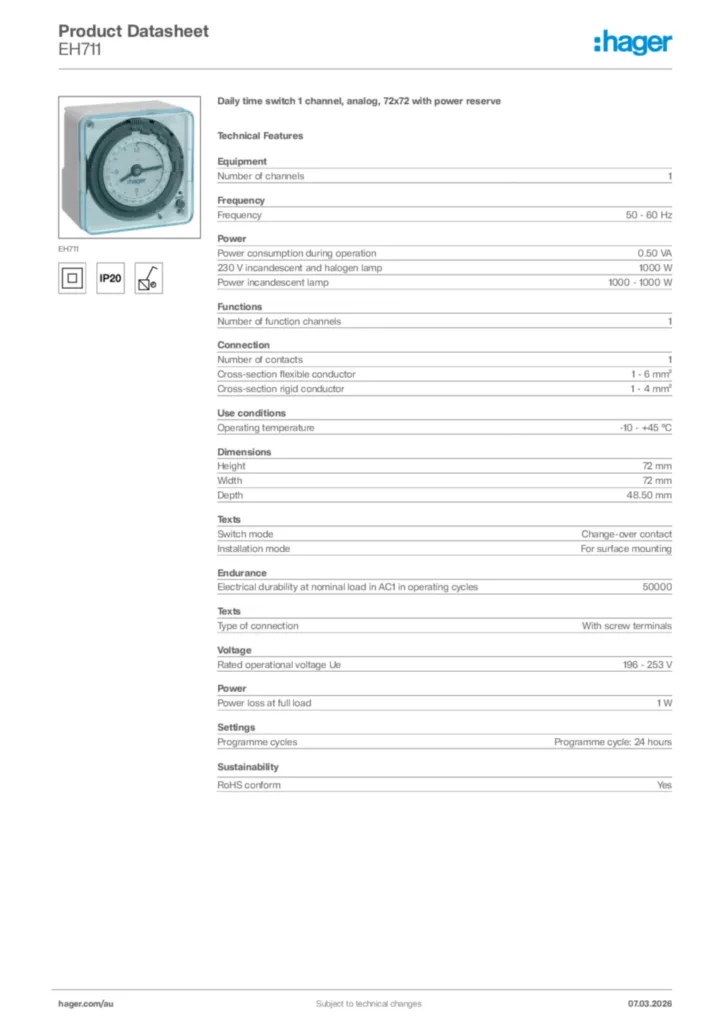

Download the data sheet

Technical properties

Number of function channels

1
Switching cycles

min. 50000
Power reserve

≈ 120 h

Switch mode

change-over contact, usable as NC or NO
Number of modules

4

Manual selection switches / push-buttons

as rotary switch for temporary on/off switching

Rated operational voltage Ue

196 / 230 / 253 V
Frequency

50 Hz

Operating voltage

230 V~

Switching current at cos φ = 0.6

max. 3 A

Depth of installed product

48.5 mm
Height of installed product

72 mm
Dimensions (LLxwwxhh)

72 x 72 x 48,5
Width of installed product

72 mm
Width of rail mounted device (RMD)

4 modules

Power consumed

0.5 VA
Power consumption (operation)

0.5 VA
Total power loss under IN

1 W
Loss power at full load

≈ 1 W

Running accuracy

± 1 s/day

Battery / storage battery

with integrated storage battery for power reserve
Charging time of the power reserve in hours

120

Max. power with incandescent lamps

1000 W
230 V incandescent lamps and halogen lamps

max. 1000 W

Installation mode

for surface mounting

Connection cross-sect. flexible conductor

1 / 6mm²
Connection cross-sect. rigid cable

1 / 6mm²
Conductor cross-section (flexible)

1…6 mm²
Conductor cross-section (rigid)

1…6 mm²
Number of contacts

1
Type of contacts

1 changeover
Type of connection

with screw terminals
Contact

with potential-free switching contact
Type of connection

with screw

Number of program steps

72
Summer / Winter time change

manual
Shortest switching time

10 mn
Type of programming

analog
Program cycles

Programme cycle: 24 hours
Programming cycle

24H
Setting

Setting via day dial

Number of channels

1
Number of switching times for on/off

72
Supply failure reserve

200 h
Switching cycles at cos φ = 0,6

min. 20000

Cycle

daily

Operating temperature

-10…50 °C
Working accuracy

1
Storage/transport temperature

-20…60 °C

Main design line

Light control
