Daily time switch 1 channel, analog, 3 modules EH110

EAN

3250612281107

Packaging

1 Piece

Technical properties
Documentations
More products

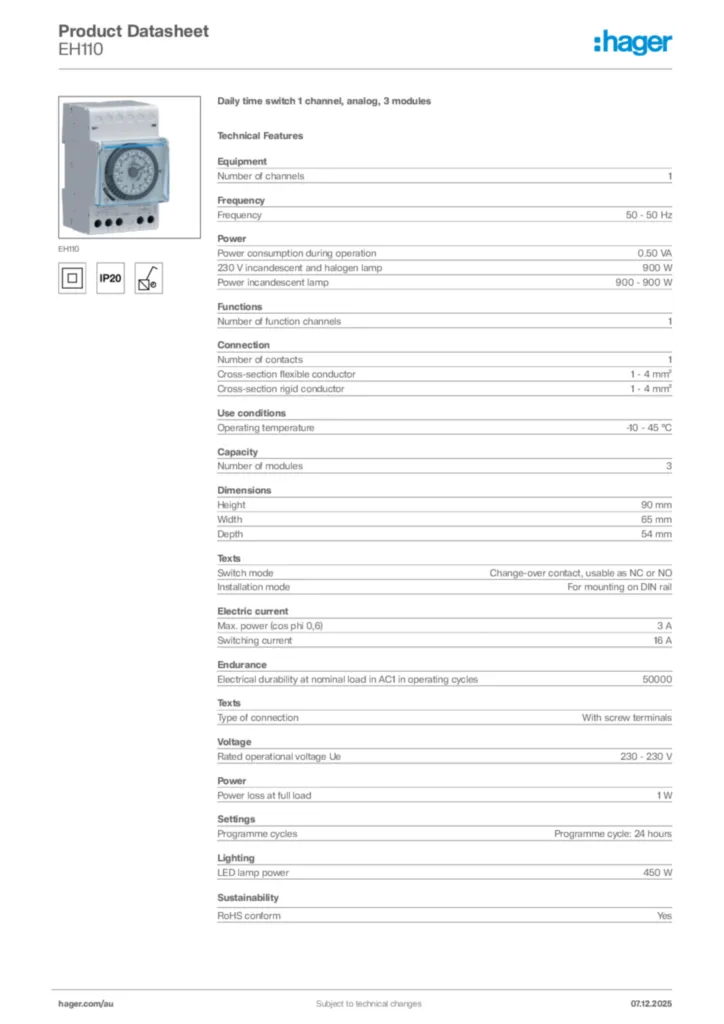

Download the data sheet

Technical properties

Number of function channels

1
Switching cycles

min. 50000
Slide switch

with slide switch for permanent on/automatic

Switch mode

change-over contact, usable as NC or NO
Number of modules

3

Frequency

50 Hz

Operating voltage

230 V~

Max. power with cos phi 0.6

3 A
Switching current at cos φ = 0.6

max. 3 A

Depth of installed product

54 mm
Height of installed product

90 mm
Width of installed product

65 mm
Width of rail mounted device (RMD)

3 modules

Power consumed

0.5 VA
Power consumption (operation)

0.5 VA
Total power loss under IN

1 W
Loss power at full load

≈ 1 W
Power dissipation per coil

0.5 W

Compact fluorescent lamps

max. 200 W

Max. power with incandescent lamps

900 W
230 V incandescent lamps and halogen lamps

max. 900 W

Mounting type

din-Rail
Installation mode

for mounting on DIN rail

Connection cross-sect. flexible conductor

1 / 4mm²
Connection cross-sect. rigid cable

1 / 4mm²
Conductor cross-section (flexible)

1…4 mm²
Conductor cross-section (rigid)

1…4 mm²
Number of contacts

1
Type of contacts

1 changeover
Type of connection

with screw terminals
Contact

with potential-free switching contact
Type of connection

with screw

Number of program steps

96
Summer / Winter time change

manual
Shortest switching time

15 mn
Type of programming

analog
Program cycles

Programme cycle: 24 hours
Programming cycle

24H
Setting

Setting via day dial

Number of channels

1
Number of switching times for on/off

96
Supply failure reserve

without
Switching cycles at cos φ = 0,6

min. 20000

Cycle

daily

REACH conform

No
RoHS conform

Yes
Halogen free

No

Operating temperature

-10…45 °C
Working accuracy

1
Storage/transport temperature

-20…70 °C

Main design line

Light control
