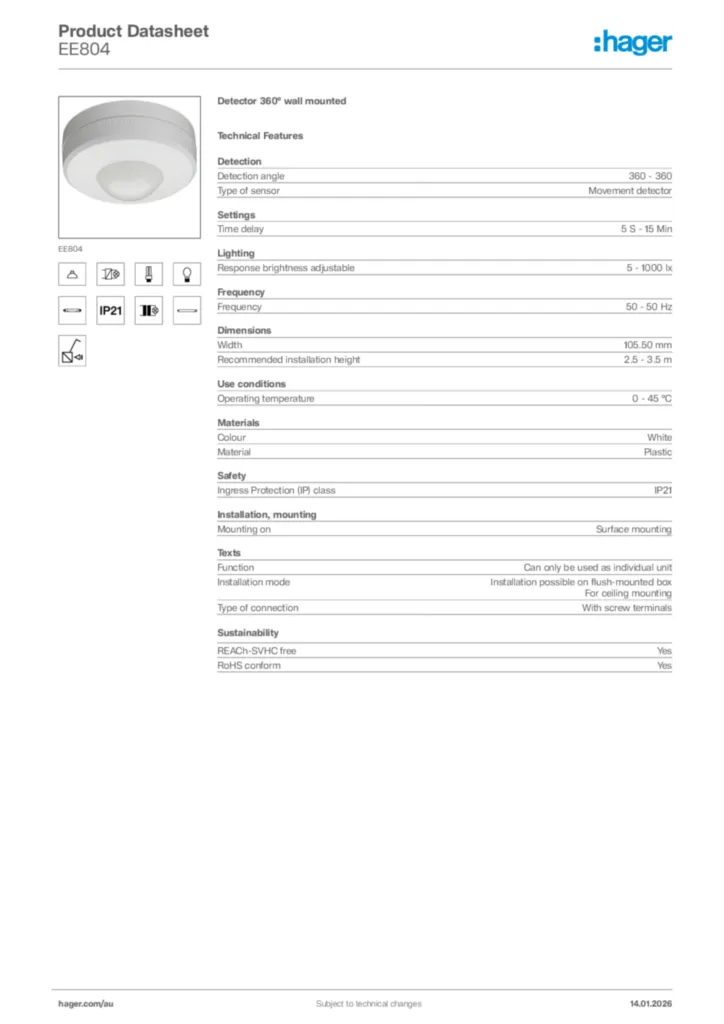

Detector 360° wall mounted EE804
EAN
3250612258048
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical properties
Detection
-
Detection angle360 - 360
-
Type of sensorMovement detector
Settings
-
Time delay5 S - 15 Min
Lighting
-
Response brightness adjustable5 - 1000 lx
Frequency
-
Frequency50 - 50 Hz
Dimensions
-
Width105,50 mm
-
Recommended installation height2,5 - 3,5 m
Use conditions
-
Operating temperature0 - 45 °C
Materials
-
ColourWhite
-
MaterialPlastic
Safety
-
Ingress Protection (IP) classIP21
Installation, mounting
-
Mounting onSurface mounting
Texts
-
FunctionCan only be used as individual unit
-
Installation modeInstallation possible on flush-mounted box, For ceiling mounting
-
Type of connectionWith screw terminals
