IP55 / Integrated Cell

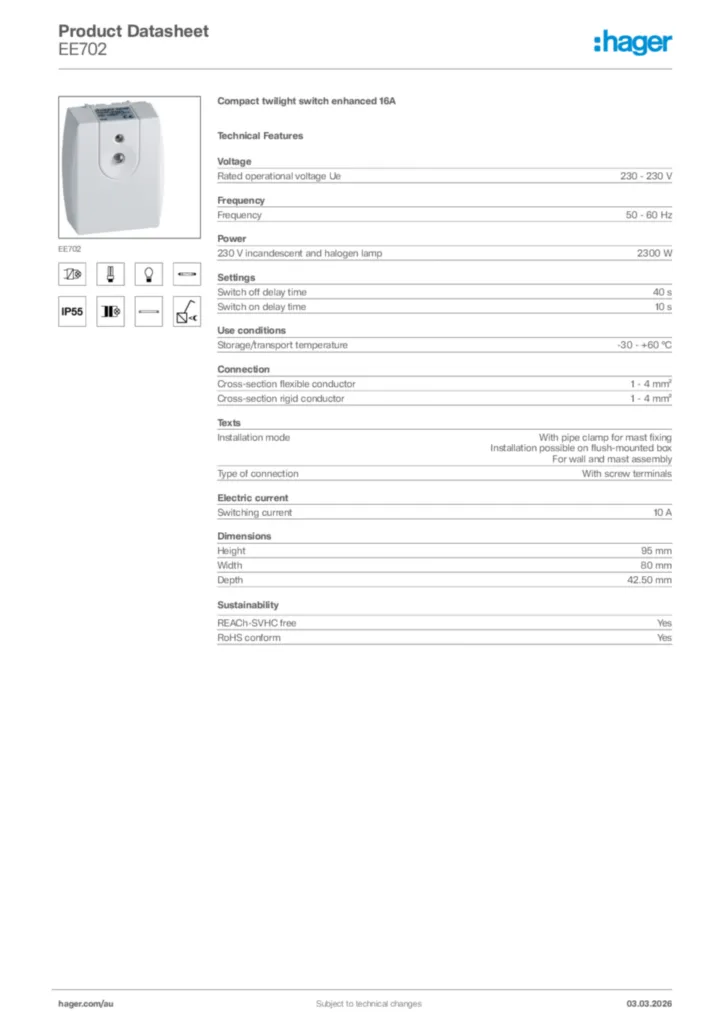

Compact twilight switch enhanced 16A EE702

EAN

3250612257027

Packaging

1 Piece

Technical properties
Documentations

Download the data sheet

Technical properties

Rated operational voltage Ue

230 V

Operating voltage

230 V~ +10%/-15%

Acceptable current rating with AC1

16 A

Depth of installed product

42.5 mm
Height of installed product

95 mm
Length

80 mm
Width of installed product

42.5 mm

Conventional transformers

1500 VA
Electronic transformers

1500 W

Supply voltage

230 V

RAL colour

RAL 9010 - Pure white

Brightness measurement range

2 / 1000 Lux
Fluorescent lamps with electronical ballast (EB)

16 x 58 W

Compact fluorescent lamps

20 x 20 W
Fluorescent lamps uncompensated

2000 W

Max. power with incandescent lamps

2300 W
230 V incandescent lamps and halogen lamps

2300 W

Mounting type

surface-mounted
Installation mode

for wall and mast assembly ; with pipe clamp for mast fixing ; Installation possible on flush-mounted box

Connection cross-sect. flexible conductor

1 / 4mm²
Connection cross-sect. rigid cable

1 / 4mm²
Conductor cross-section

1…4 mm²
Number of contacts

1
Type of contacts

1NO
Type of connection

with screw terminals

Delay ON

10 s
Delay OFF

40 s
Setting

Brightness continuously adjustable on insert via potentiometer ; Switch-on/switch-off delay continuously adjustable via potentiometer

Brightness

On/off brightness value individually adjustable

REACH conform

Yes
RoHS conform

Yes

Storage/transport temperature

-30…60 °C

Main design line

House electronics
