LED deco lamp with IR detector, white EE610

EAN
3250617579391
Packaging
1 Piece

Technical properties

Architecture
  • Fixing mode
    Screwed
Functions
  • Operating mode
    with test mode
Main electrical features
  • Frequency
    50/60 Hz
Voltage
  • Operating voltage
    230 V AC
  • Operating voltage
    230 V~
Dimensions
  • Installation height
    max. 4 m
  • Recommended installation height
    2 m
Power
  • Halogen switching capacity 230V
    175 W
  • Incandescent bulb power
    60 W
Measurement
  • Detection field, semi-oval shaped
    ≈ 10 x 12 m
Reach distance
  • Range, frontal
    ≈ 12 m
Detection
  • Detection angle
    140 °
  • Detection angle
    140 °
  • Frontal detecting distance
    12 m
  • Side detecting distance
    6 m
Materials
  • RAL colour
    RAL 9010 - Pure white
Lighting control
  • Response brightness, adjustable
    ≈ 5…1000 lx
  • Brightness measurement range
    5 / 1000 Lux
  • Lumen
    1100 lm
LED control
  • Power LED
    15 W
Incandescent bulbs control
  • 230 V incandescent lamps
    60 W
Installation, mounting
  • Maximum Mounting Height
    4 m
  • Installation mode
    for screw fastening
Connection
  • Conductor cross-section
    1.5…2.5 mm²
  • Type of connection
    with screw terminals
Cable
  • Wire
    with cable entry
Settings
  • Response value sensitivity adjustable
    Yes
  • Delay time, adjustable
    5 s…15 mn
Scope of delivery
  • Component
    with fitting material
Safety
  • Protection class
    isol.class II
  • REACH conform
    Yes
  • RoHS conform
    Yes
Use conditions
  • Operating temperature
    -25…50 °C
  • Storage/transport temperature
    -30…70 °C
Identification
  • Application, usage
    Motion detector
  • Main design line
    Motion detectors

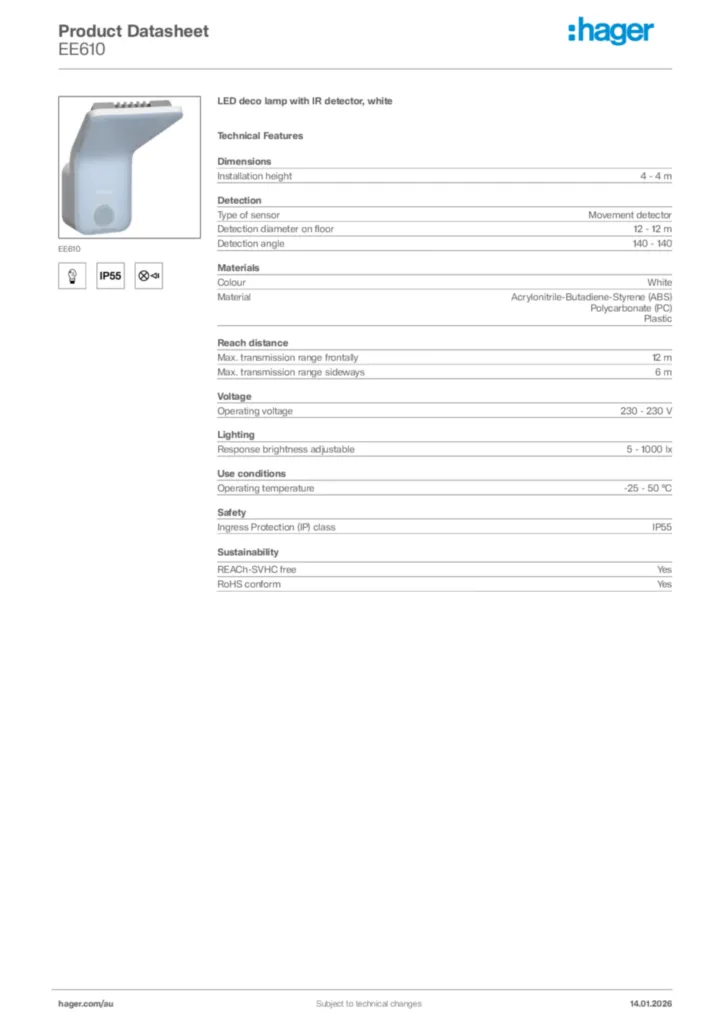

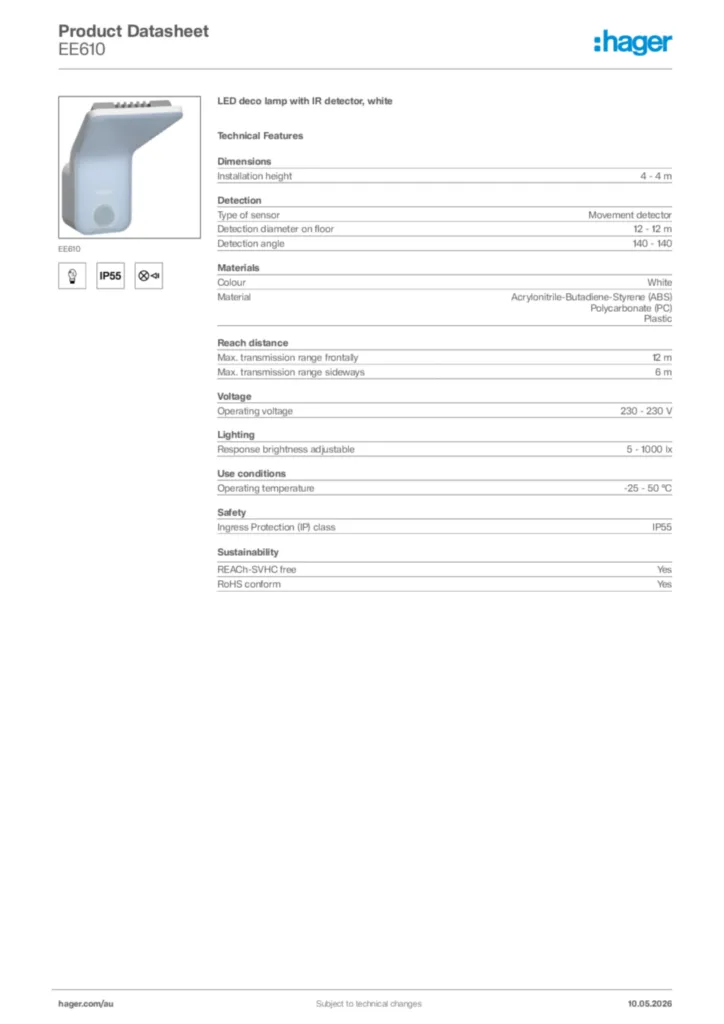

Downloads
