            ECR310D - 3 Phase kWhmeter direct 125A 6M MODBUS MID
            ECR310D - 3 Phase kWhmeter direct 125A 6M MODBUS MID

            3 Phase kWhmeter direct 125A 6M MODBUS MID

            ECR310D

            ECR310D - 3 Phase kWhmeter direct 125A 6M MODBUS MID
            ECR310D - 3 Phase kWhmeter direct 125A 6M MODBUS MID
            • DIN rail-­mounted devices

            3 Phase kWhmeter direct 125A 6M MODBUS MID ECR310D

            EAN
            3250612231461
            Packaging
            1 Piece

            You have to log in with your myHager profile to see prices and to order.

            Add to a list
            Add to a list

            Login to create a product list

            You need to be logged into your myHager account to create product lists

            Create an account Sign in
            • Technical properties
            • Environmental value
            • Documentations
            • More products

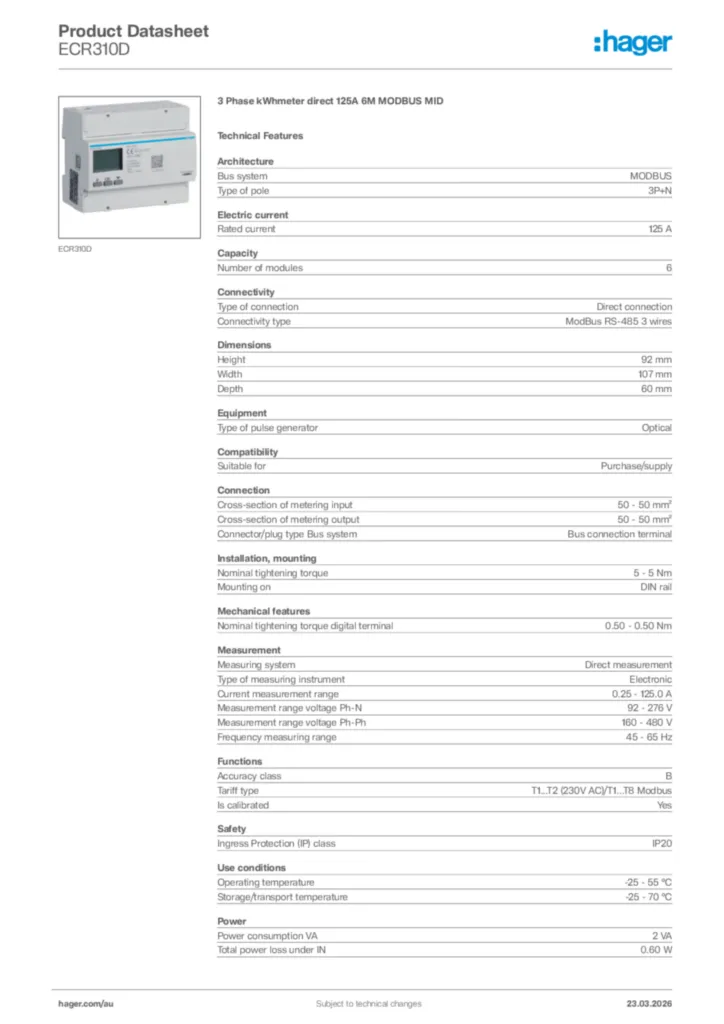

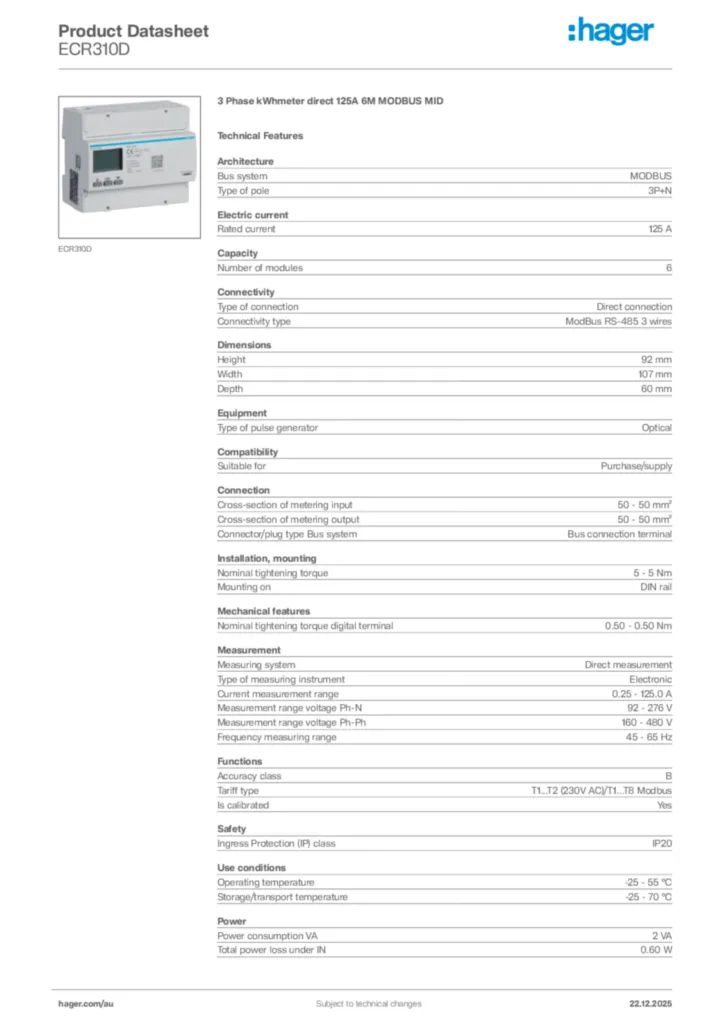

            Download the data sheet

            Technical properties

            Archi­tec­ture
            • Bus system
              MODBUS
            • Type of pole
              3P+N
            Elec­tric current
            • Rated current
              125 A
            • Maximum meas­uring circuit current
              125 A
            Capa­city
            • Number of modules
              6
            Connectivity
            • Type of connec­tion
              Direct connec­tion
            • Connectivity type
              ModBus RS-485 3 wires
            Dimen­sions
            • Height
              92 mm
            • Width
              107 mm
            • Depth
              60 mm
            Equip­ment
            • Type of pulse gener­ator
              Optical
            Compat­ib­ility
            • Suit­able for
              Purchase/supply
            Connec­tion
            • Cross-sec­tion of metering input
              50 - 50 mm²
            • Cross-sec­tion of metering output
              50 - 50 mm²
            • Connect­or/plug type Bus system
              Bus connec­tion terminal
            Install­a­tion, mounting
            • Nominal tight­ening torque
              5 - 5 Nm
            • Mounting on
              DIN rail
            Mech­an­ical features
            • Nominal tight­ening torque digital terminal
              0,50 - 0,50 Nm
            Meas­ure­ment
            • Meas­uring system
              Direct meas­ure­ment
            • Type of meas­uring instru­ment
              Elec­tronic
            • Current meas­ure­ment range
              0,25 - 125,0 A
            • Meas­ure­ment range voltage Ph-N
              92 - 276 V
            • Meas­ure­ment range voltage Ph-Ph
              160 - 480 V
            • Frequency meas­uring range
              45 - 65 Hz
            Func­tions
            • Accuracy class
              B
            • Tariff type
              T1...T2 (230V AC)/T1...T8 Modbus
            • Is calib­rated
              Yes
            Safety
            • Ingress Protec­tion (IP) class
              IP20
            Use condi­tions
            • Oper­ating temper­ature
              -25 - 55 °C
            • Stor­age/trans­port temper­ature
              -25 - 70 °C
            Power
            • Power consump­tion VA
              2 VA
            • Total power loss under IN
              0,60 W
            Frequency
            • Frequency
              50 - 50 Hz

            Environmental value

            We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

            RoHS conform Yes
            REACH conform Yes

            Certifications and documents

            REACH declaration ECR310D (english)
            PDF
            103,10 kB
            RoHS declaration ECR310D (english)
            PDF
            103,59 kB

            Downloads

            • Product image

              Image ECR310D  | Hager Australia

              Product Image ECR310D

            • Product attachment

              Image Modbus table Summary V1 14  | Hager Australia

              Modbus table Summary V1 14

              Product attachment International 2022-10-04

              PDF
              836,11 kB
              Image Product attachment International 2024-04-22  | Hager Australia

              Product attachment International 2024-04-22

              XLS
              177,00 kB
            • Manual

              Image Installer leaflet ECR310D  | Hager Australia

              Installer leaflet ECR310D

              Manual de-DE, en-GB 2024-01-29

              PDF
              2,78 MB
            • Technical brochures

              Image Energy Meters Specifications and Technical Guide  | Hager Australia

              Energy Meters Specifications and Technical Guide

              Technical brochures en-GB 2022-01-11

              PDF
              1,31 MB
            • Brochure

              Image Energy Meters Brochure  | Hager Australia

              Energy Meters Brochure

              Track, communicate, optimise. Welcome to the smart, connected and efficient building.

              PDF
              15,44 MB
            • Declaration of conformity

              Image EU Declaration of Conformity  | Hager Australia

              EU Declaration of Conformity

              Declaration of conformity en-GB 2024-04-15

              PDF
              461,68 kB
