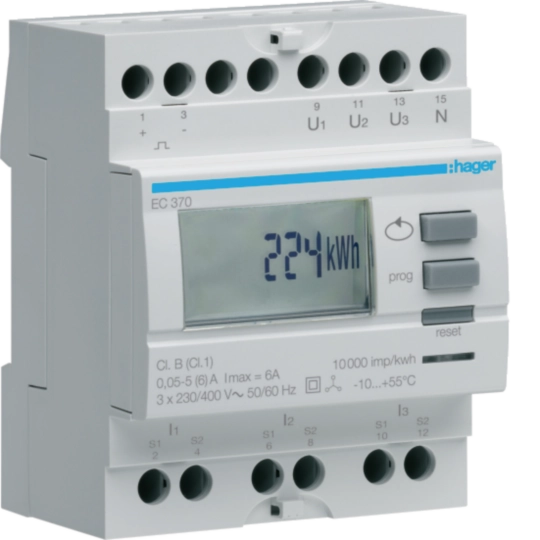

3Ph Kwhmeter via CT EC370
EAN
3250612233700
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable.
Technical properties
Architecture
-
Type of pole3P+N
Electric current
-
Rated current6000 A
-
Maximum measuring circuit current6000 A
Capacity
-
Number of modules4
Dimensions
-
Height90 mm
-
Width72 mm
Equipment
-
Type of pulse generatorElectrical
Compatibility
-
Suitable forPurchase
Installation, mounting
-
Mounting onDIN rail
Measurement
-
Measuring systemMeasurement transformer
-
Type of measuring instrumentElectronic
-
Frequency measuring range50 - 60 Hz
Power supply
-
Number of phases for power supply4
Functions
-
Accuracy classB
-
Tariff typeOne-tariff
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-20 - 70 °C
Power
-
Power consumption VA8,40 VA
-
Total power loss under IN1,80 W
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

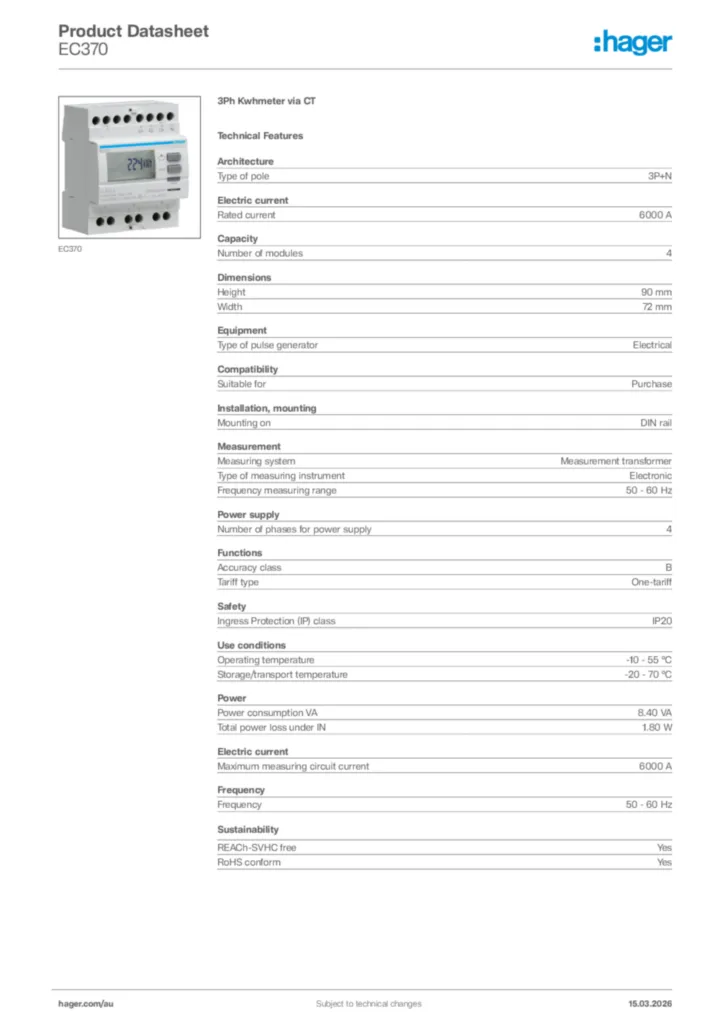

Product datasheet
Hager Product data sheet EC370
3Ph Kwhmeter via CT
PDF -
Installation manual
Compteur énergie triphasé EC370 EC372
Installation manual en-GB, nn-NO, pt-PT, sv-SE 2020-01-01
PDF876,26 kB -
Product data sheet
UK_MD_TDS_KwHMeters
Product data sheet en-GB 2024-03-22
PDF47,29 kB
