3Ph Kwhmeter direct 100A EC360
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Technical properties
Architecture
-
Type of pole3P+N
Electric current
-
Rated current100 A
-
Maximum measuring circuit current100 A
Capacity
-
Number of modules7
Connectivity
-
Type of connectionDirect connection
Dimensions
-
Height90 mm
-
Width122,50 mm
Equipment
-
Type of pulse generatorElectrical
Compatibility
-
Suitable forPurchase
Installation, mounting
-
Mounting onDIN rail
Measurement
-
Measuring systemDirect measurement
-
Type of measuring instrumentElectronic
-
Frequency measuring range50 - 60 Hz
Power supply
-
Number of phases for power supply4
Functions
-
Accuracy classB
-
Tariff typeOne-tariff
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-10 - 55 °C
-
Storage/transport temperature-25 - 70 °C
Power
-
Power consumption VA7,50 VA
-
Total power loss under IN1,80 W
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-

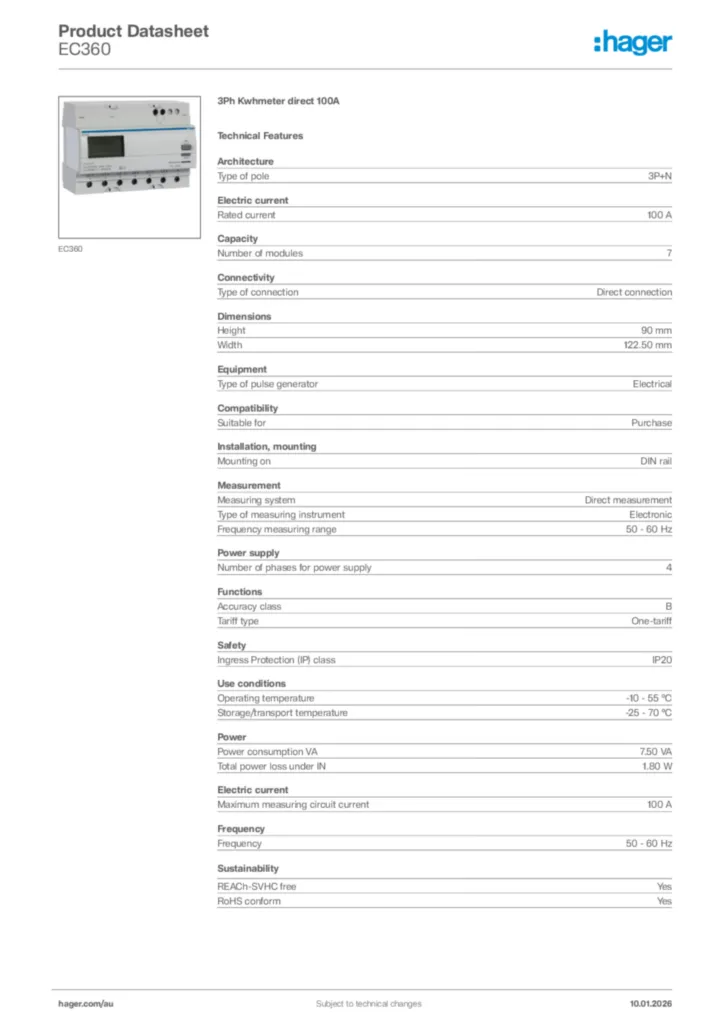

Product datasheet
Hager Product data sheet EC360
3Ph Kwhmeter direct 100A
PDF -
Installation manual
Compteur energie triphase entree directe 100A EC360, E
Installation manual en-GB, es-ES, fi-FI, fr-FR, de-DE, it-IT, nl-NL, nn-NO, pt-PT, sv-SE 2020-01-01
PDF801,96 kB -
Product data sheet
UK_MD_TDS_KwHMeters
Product data sheet en-GB 2024-03-22
PDF47,29 kB
