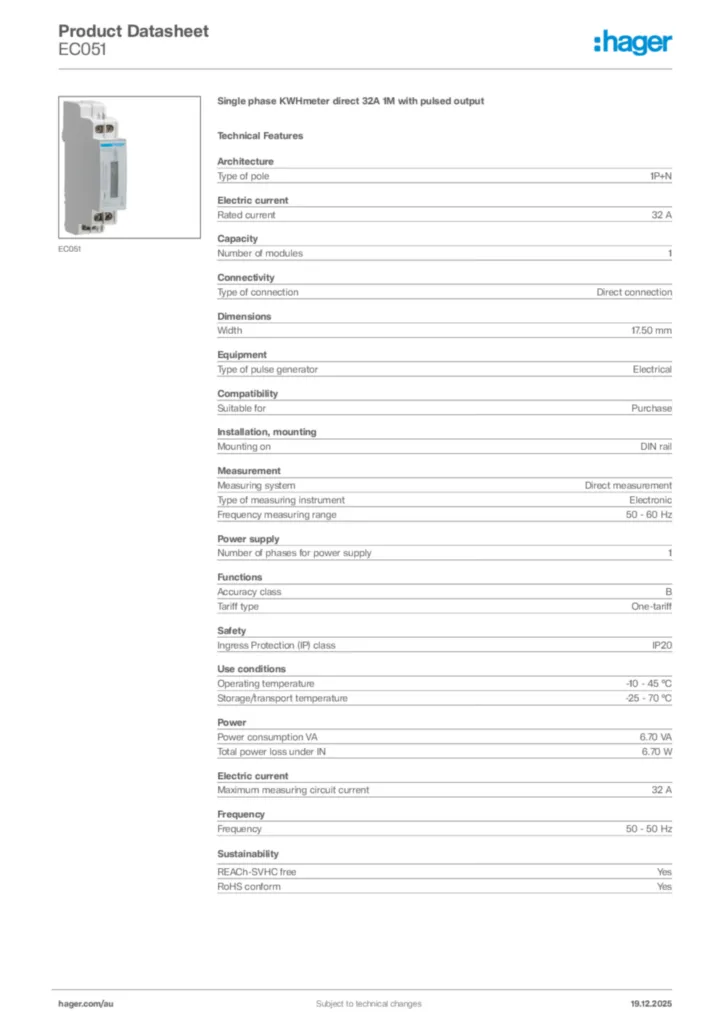

EC051 - Single phase KWHmeter direct 32A 1M with pulsed output
EC051 - Single phase KWHmeter direct 32A 1M with pulsed output

Single phase KWHmeter direct 32A 1M with pulsed output EC051

EAN
3250612230518
Packaging
1 Piece

Technical properties

Architecture
  • Fixing mode
    DIN rail type O (symmetrical)
Functions
  • Tarif type
    One-tariff
Configuration
  • Number of modules
    1
Compatibility
  • Suitable for
    Purchase
Main electrical features
  • Rated operational voltage Ue
    185 / 230 / 275 V
  • Frequency
    50 Hz
Voltage
  • Rated insulation voltage
    4 kV
Electric current
  • Operating current
    0.02 / 32 A
  • Rated current
    32 A
  • Max. measurement circuit current
    32 A
Dimensions
  • Width of installed product
    17.5 mm
Power
  • Power consumed
    6.7 VA
  • Total power loss under IN
    6.7 W
  • Plage Impulsion/KWh
    10 Imp/kWh
Electrical specifications
  • Type of pulse generator
    électrical
Measurement
  • Idle power measurement
    activ energy
  • Voltage measurement range
    230 V
  • Type of measuring instrument
    electronical
  • Principle of measurement
    Direct measurement
Power supply
  • Number of phases for the power supply
    1-phase
Connection
  • Connection cross-sect. flexible conductor
    1 / 4mm²
  • Type of Bus connexion
    other
Settings
  • Value of a pulse
    100 Wh
Equipment
  • Number of positions total
    6
  • Tariff model of kilowatt-hour meter
    Externa
  • Rolling code
    No
Use
  • Pulse duration
    100 ms
  • Interval between 2 pulses
    48000 ms
Standards
  • Approval
    MID (Measuring Instruments Directive)
Safety
  • Protection index IP
    IP20
  • REACH conform
    Yes
  • RoHS conform
    Yes
Use conditions
  • Operating temperature
    -10…45 °C
  • Storage/transport temperature
    -25…70 °C
