RCCB 4P 80A 30mA A Class CD481T

EAN

3250611644972

Packaging

1 Piece

Phase out product: please contact your electrical wholesaler for availability

Accessories
Technical properties
Documentations

Download the data sheet

Complete your system

Busbar system for distribution boards 2 products available

Technical properties

Type of pole

4P

Rated current

80 A
Rated residual operating current Idn

30 mA
Breaking and opening capacity Idm

1,50 kA
Rated conditional short-circuit current Inc according to EN61008-1

6 kA
Rated current -25°C

80 A
Rated current at -20°C

80 A
Rated current -15°C

80 A
Rated current -10°C

80 A
Rated current -5°C

80 A
Rated current at 0°C

80 A
Rated current 5°C

80 A
Rated current 10°C

80 A
Rated current 15°C

80 A
Rated current at 20°C

80 A
Rated current 25°C

80 A
Rated current 30°C

80 A
Rated current 35°C

80 A
Rated current at 40°C

80 A

Nominal tightening torque top terminal

3,30 - 3,30 Nm
Nominal tightening torque down terminal

3,30 - 3,30 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

Screw terminal
Nominal tightening torque

3,30 - 3,30 Nm

Rated operational voltage Ue

230 - 400 V
Type voltage supply

AC
Rated insulation voltage Ui

500 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

440 V

Frequency

50 - 50 Hz

Number of modules

4

Residual current type

A
Ingress Protection (IP) class

IP20

Cross-section of input and output with screws, for massive conductors

1 - 50 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 35 mm²

Total power loss under IN

19,70 W

Max. Altitude

2000 m

Electric endurance in number of cycles

2000
Number of mechanical operations

4000

Type of connection

Screw terminal
Top connection alignment for modular devices

Aligned terminal
Down connection alignment for modular devices

Aligned terminal

Height

86 mm
Width

70 mm
Depth

70 mm

Downloads

Product image

Product Image CD481T
Product datasheet

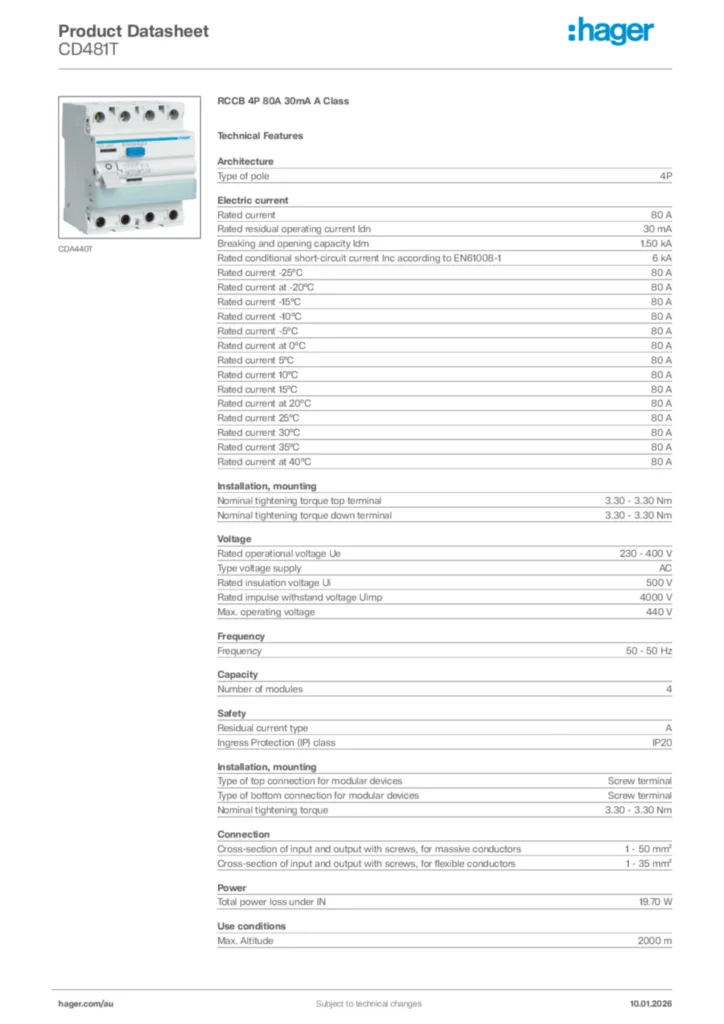

Hager Product data sheet CD481T

RCCB 4P 80A 30mA A Class

PDF
Installation manual

Interrupteur différentiel accessoriable Australie

Installation manual en-GB 2014-10-28

PDF

502,35 kB
Product data sheet

CDA_CD_CExxxT Product Data and Specifications
