    Hager The Hager 3P 63A 100mA Class A earth leakage add-on block adds residual current protection to three-phase circuits. Designed to pair with compatible MCBs, it detects AC and pulsating DC faults, enhancing fire and equipment safety. 240-415 V, 50 Hz; Idn 100 mA; Ui 500 V; Uimp 4 kV. Compact 1‑module design with screw terminals and right‑hand neutral suits residential and commercial switchboards.
    EAN
    3250611344889
    Packaging
    1 Piece
    • One Module Add On Blocks (AOB)

    Earth leakage add-on block 3P 63A 100mA Type A 1 Module BE163T

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Earth leakage add-on block 3P 63A 100mA Type A 1 Module

    BE163T

    • Accessories
    • Technical properties
    • Environmental value
    • Documentations
    • More products
    Download the data sheet

    Complete your system

    Compatible products

    • Suitable with 32 products available

    Suitable with

    • MSN332R

      MCB 3P 6kA C-32A 3M
      EUR 0.00  / *
    • MSN316

      MCB 3P 6kA C-16A 3M
      EUR 0.00  / *
    • MSN310

      MCB 3P 6kA C-10A 3M
      EUR 0.00  / *
    • MSN306

      MCB 3P 6kA C-6A 3M
      EUR 0.00  / *
    • MSN320

      MCB 3P 6kA C-20A 3M
      EUR 0.00  / *
    • MSN325

      MCB 3P 6kA C-25A 3M
      EUR 0.00  / *
    • MSN332

      MCB 3P 6kA C-32A 3M
      EUR 0.00  / *
    • MSN340

      MCB 3P 6kA C-40A 3M
      EUR 0.00  / *
    • MSN350

      MCB 3P 6kA C-50A 3M
      EUR 0.00  / *
    • MSN363

      MCB 3P 6kA C-63A 3M
      EUR 0.00  / *
    • MSN363R

      MCB 3P 6kA C-63A 3M
      EUR 0.00  / *
    • MDN106P

      MCB 1P 6kA D-6A 1M
      EUR 0.00  / *
    • MDN110P

      MCB 1P 6kA D-10A 1M
      EUR 0.00  / *
    • MDN116P

      MCB 1P 6kA D-16A 1M
      EUR 0.00  / *
    • MDN150P

      MCB 1P 6kA D-50A 1M
      EUR 0.00  / *
    • MDN163P

      MCB 1P 6kA D-63A 1M
      EUR 0.00  / *
    • MDN163R

      MCB 1P 6kA D-63A 1M
      EUR 0.00  / *
    • MDN206P

      MCB 2P 6kA D-6A 2M
      EUR 0.00  / *
    • MDN210P

      MCB 2P 6kA D-10A 2M
      EUR 0.00  / *
    • MDN250P

      MCB 2P 6kA D-50A 2M
      EUR 0.00  / *

    Technical properties

    Voltage
    • Rated oper­a­tional voltage Ue
      240 - 415 V
    • Rated insu­la­tion voltage Ui
      500 V
    • Rated impulse with­stand voltage Uimp
      4000 V
    Frequency
    • Frequency
      50 - 50 Hz
    Elec­tric current
    • Rated residual oper­ating current Idn
      100 mA
    • Rated current
      63 A
    Archi­tec­ture
    • Number of poles
      3
    • Neutral posi­tion
      Right
    Capa­city
    • Number of modules
      1
    Connectivity
    • Type of connec­tion
      Screw terminal
    Dimen­sions
    • Height
      121 mm
    • Width
      70,80 mm
    • Depth
      69,10 mm

    Environmental value

    We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

    RoHS conform Yes

    Certifications and documents

    REACH declaration BE163T
    PDF
    RoHS report BE163T
    PDF

    Downloads

    • Product image

      Image BE163T | Hager Australia

      Product Image BE163T

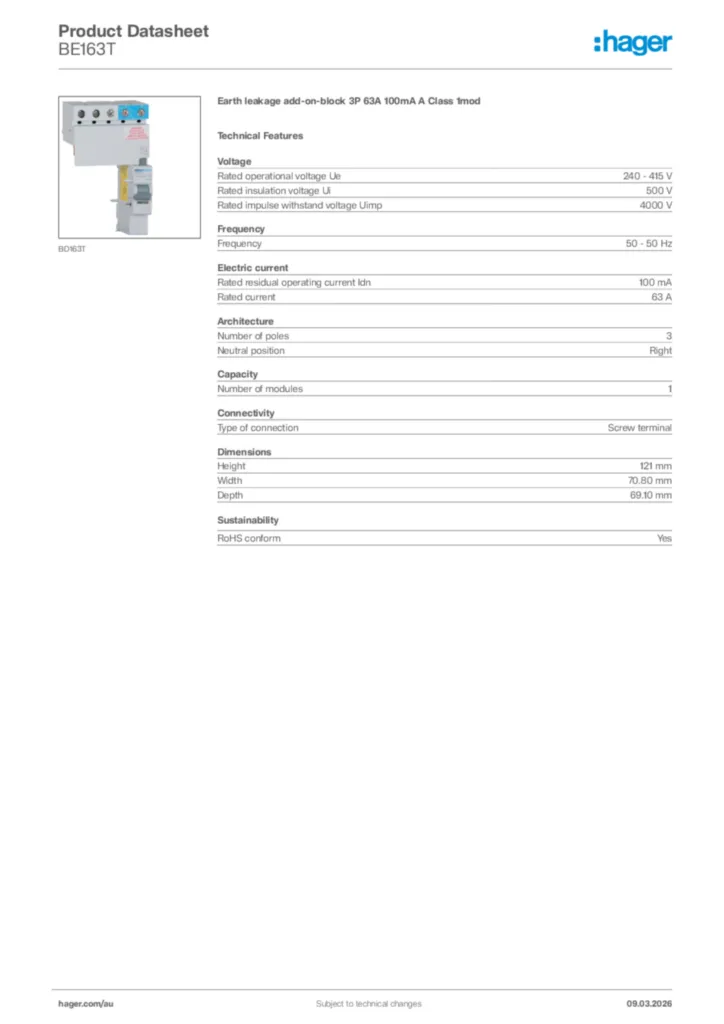

    • Product datasheet

      Image Hager Product data sheet BE163T | Hager Australia

      Hager Product data sheet BE163T

      Earth leakage add-on-block 3P 63A 100mA A Class 1mod

      PDF

    • Installation manual

      Image Notice bloc diff Australie Up to 63 A | Hager Australia

      Notice bloc diff Australie Up to 63 A

      Installation manual en-GB 2020-01-01

      PDF
      4,53 MB

    • Product data sheet

      Image Bx163T Product and Data Specification | Hager Australia

      Bx163T Product and Data Specification

      Product data sheet en-GB 2017-04-03

      PDF
      316,53 kB

    • Declaration of conformity

      Image Declaration | Hager Australia

      Declaration

      Declaration of conformity International 2019-01-10

      PDF
      87,63 kB
    More documentation

    Discover more of this product range

      2
    • 1
      BF163T - Earth leakage add-on block 3P 63A 300mA Type A 240-415V 1 Module
      BF163T
      Earth leakage add-on-block 3P 63A 300mA A Class 1mod
    • 2
      BD163T - Hager Earth leakage add-on block 3P 63A 30mA Type A 1 module Screw terminal
      BD163T
      Earth leakage add-on-block 3P 63A 30mA A Class 1mod
