RCBO Electronic 1P 6kA C-32A 30mA A Class 1M ADC332T
EAN
3250611069560
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Phase out product: please contact your electrical wholesaler for availability
Follow-up products :
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical properties
Architecture
-
Type of pole1P
-
CurveC
Electric current
-
Rated current32 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C43,61 A
-
Rated current at -20°C42,79 A
-
Rated current -15°C41,96 A
-
Rated current -10°C42 A
-
Rated current -5°C40,32 A
-
Rated current at 0°C39,50 A
-
Rated current 5°C38,68 A
-
Rated current 10°C37,86 A
-
Rated current 15°C37,04 A
-
Rated current at 20°C36,21 A
-
Rated current 25°C35,39 A
-
Rated current 30°C32 A
-
Rated current 35°C33,75 A
-
Rated current at 40°C32,93 A
-
Rated current at 50°C33 A
-
Rated current 55°C30,46 A
-
Rated current 60°C29,64 A
-
Correction factor of rating current for 2 devices placed side by side0,95
-
Correction factor of rating current for 3 devices placed side by side0,95
-
Correction factor of rating current for 4 and 5 devices placed side by side0,90
-
Correction factor of rating current for 6 devices placed side by side0,85
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP2X
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage253 V
-
Rated operational voltage Ue240 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN7,08 W
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Max. Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-20 - 70 °C
-
Storage/transport temperature-25 - 80 °C
Endurance
-
Electric endurance in number of cycles8000
-
Number of mechanical operations20000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesScrew terminal
Capacity
-
Number of modules1
Dimensions
-
Height92 mm
-
Width17,70 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Product datasheet

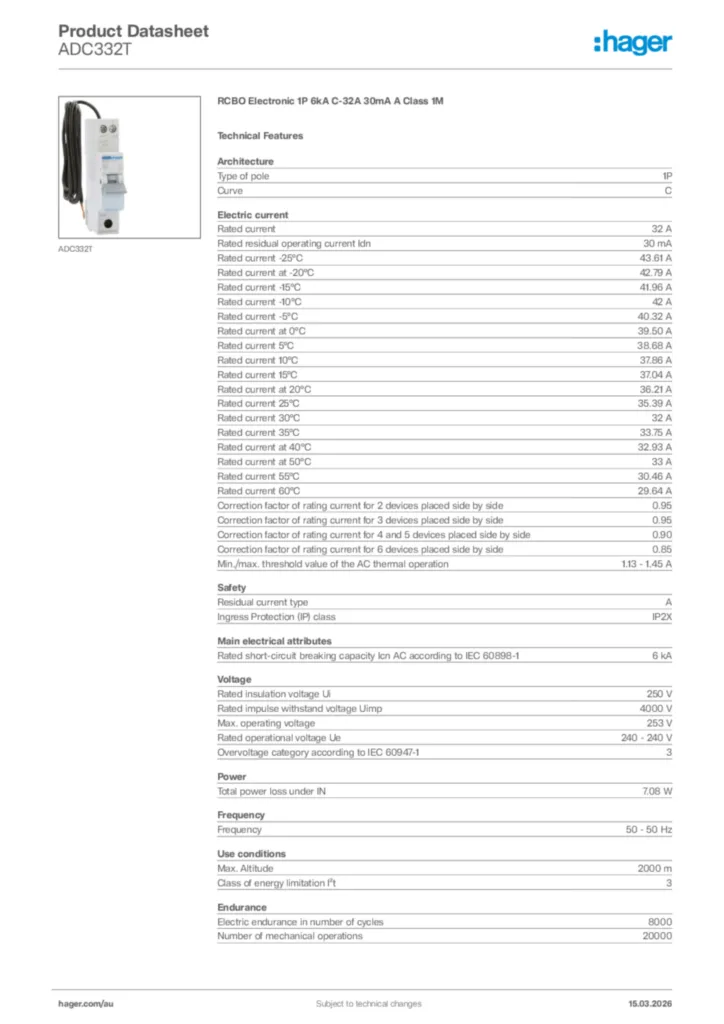

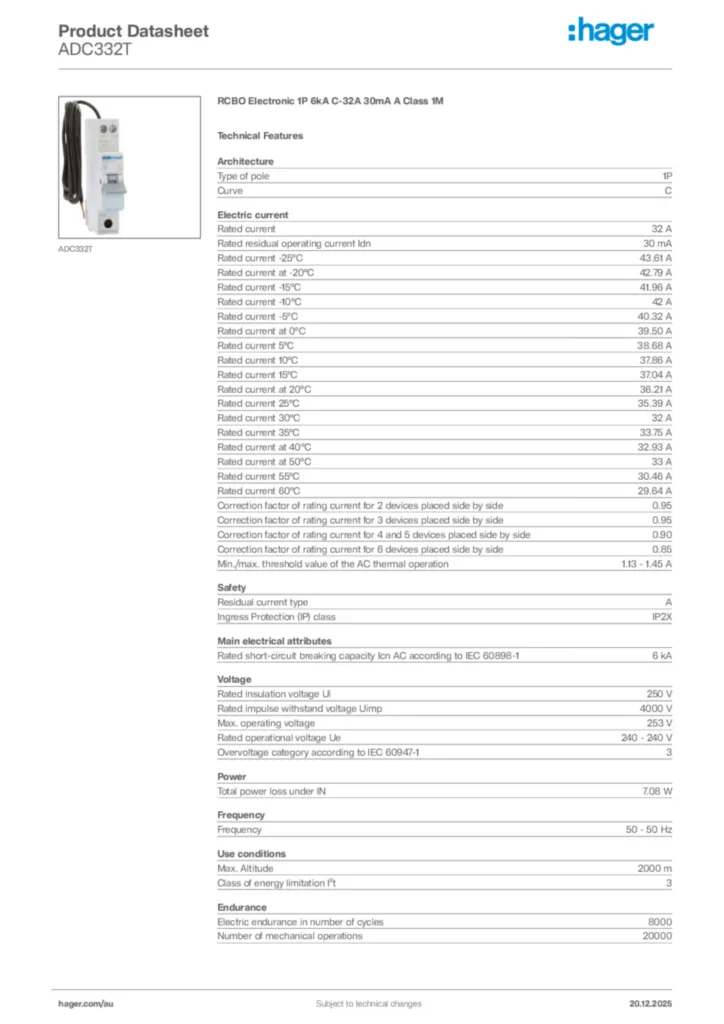

Hager Product data sheet ADC332T
