DIN rail-mounted devices

RCBO 1M 1P 6kA C-6A 30mA A Class ADC206T

EAN

3250611035473

Packaging

1 Piece

Accessories
Technical properties
Environmental value
Documentations
More products

Download the data sheet

Complete your system

Locking interlocking functions 1 products available

Technical properties

Type of pole

1P
Curve

C

Rated current

6 A
Rated residual operating current Idn

30 mA
Rated current -25°C

7,79 A
Rated current at -20°C

7,63 A
Rated current -15°C

7,46 A
Rated current -10°C

7,30 A
Rated current -5°C

7,14 A
Rated current at 0°C

6,98 A
Rated current 5°C

6,81 A
Rated current 10°C

6,65 A
Rated current 15°C

6,49 A
Rated current at 20°C

6,33 A
Rated current 25°C

6,16 A
Rated current 30°C

6 A
Rated current 35°C

5,98 A
Rated current at 40°C

5,95 A
Rated current at 50°C

5,90 A
Rated current 55°C

5,88 A
Rated current 60°C

5,85 A
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

2 W

Frequency

50 - 60 Hz

Max. Altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 40 °C
Storage/transport temperature

-40 - 70 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

10000

Cross-section of input with screws, for flexible conductors

1 - 10 mm²
Cross-section of input with screws, for massive conductors

1 - 16 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

115 mm
Width

17,80 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

RCBO 1P+N 6kA B-16A 30mA A

PDF

16,18 MB

Hager REACH declaration ADC206T

PDF

Hager RoHS report ADC206T

PDF

Downloads

Product image

Product Image ADC206T

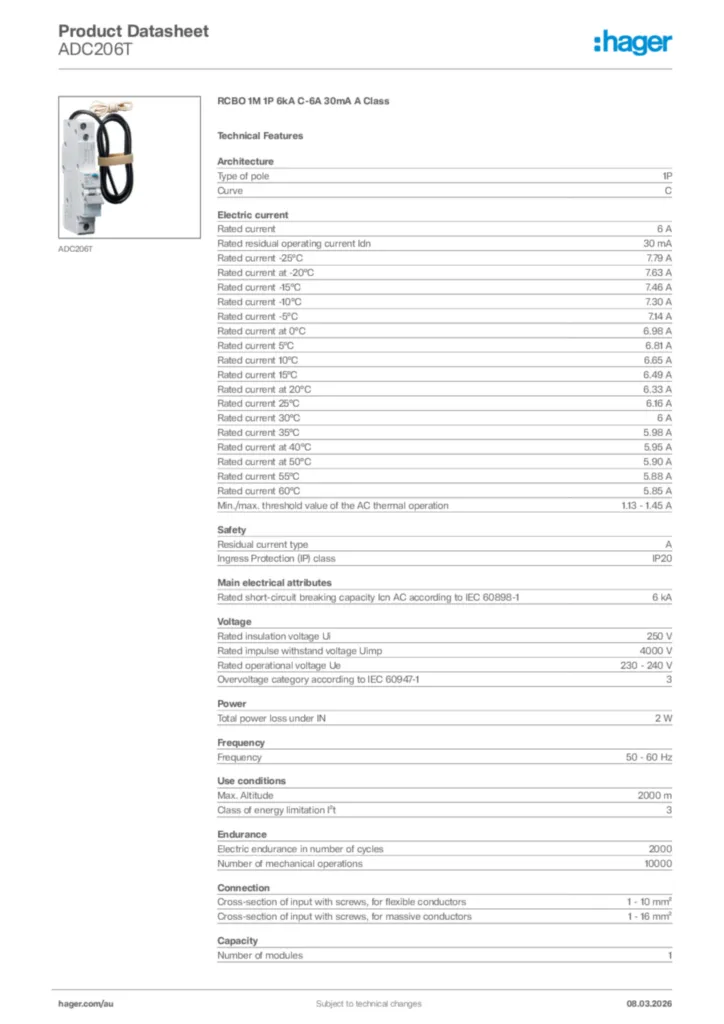

Product datasheet
