Obsolete
RCBO Electronic 1M 1P 6kA C-32A 30mA A ADA132T
EAN
3250611067702
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical properties
Architecture
-
Type of pole1P
-
CurveC
Electric current
-
Rated current32 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C40,06 A
-
Rated current at -20°C39,39 A
-
Rated current -15°C38,72 A
-
Rated current -10°C38,03 A
-
Rated current -5°C37,33 A
-
Rated current at 0°C36,62 A
-
Rated current 5°C35,89 A
-
Rated current 10°C35,14 A
-
Rated current 15°C34,39 A
-
Rated current at 20°C33,61 A
-
Rated current 25°C32,81 A
-
Rated current 30°C32 A
-
Rated current 35°C31,16 A
-
Rated current at 40°C30,31 A
-
Rated current at 50°C28,51 A
-
Rated current 55°C27,57 A
-
Rated current 60°C26,60 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Correction factor of rating current for 3 devices placed side by side0,95
-
Correction factor of rating current for 4 and 5 devices placed side by side0,90
-
Correction factor of rating current for 6 devices placed side by side0,85
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage253 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN9,63 W
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Max. Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-5 - 60 °C
-
Storage/transport temperature-25 - 60 °C
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations2000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Capacity
-
Number of modules1
Dimensions
-
Height115 mm
-
Width17,50 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Notice RCBO GB
Installation manual en-GB 2020-01-01
PDF153,58 kB -

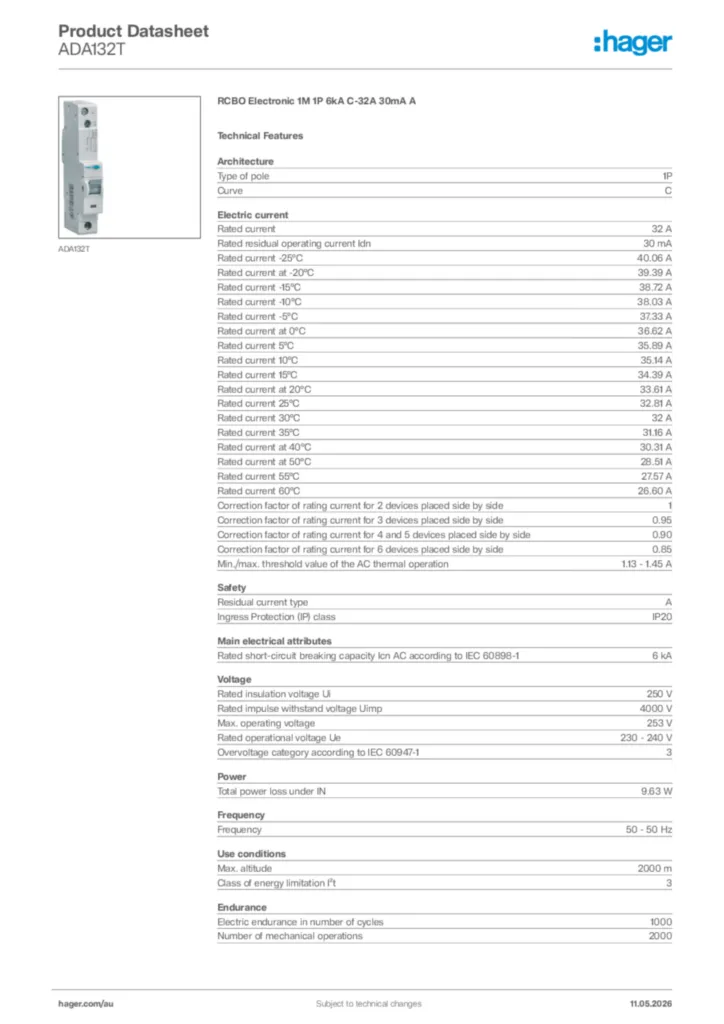

Product data sheet
