RCBO Electronic 1M 1P 6kA C-6A 30mA A ADA106T
EAN
3250611067078
Packaging
1 Piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Locking interlocking functions 1 products available
Technical properties
Architecture
-
Type of pole1P
-
CurveC
Electric current
-
Rated current6 A
-
Rated residual operating current Idn30 mA
-
Rated current -25°C7,72 A
-
Rated current at -20°C7,58 A
-
Rated current -15°C7,43 A
-
Rated current -10°C7,29 A
-
Rated current -5°C7,14 A
-
Rated current at 0°C6,99 A
-
Rated current 5°C6,83 A
-
Rated current 10°C6,67 A
-
Rated current 15°C6,51 A
-
Rated current at 20°C6,35 A
-
Rated current 25°C6,18 A
-
Rated current 30°C6 A
-
Rated current 35°C5,82 A
-
Rated current at 40°C5,63 A
-
Rated current at 50°C5,24 A
-
Rated current 55°C5,03 A
-
Rated current 60°C4,81 A
-
Correction factor of rating current for 2 devices placed side by side1
-
Correction factor of rating current for 3 devices placed side by side0,95
-
Correction factor of rating current for 4 and 5 devices placed side by side0,90
-
Correction factor of rating current for 6 devices placed side by side0,85
-
Min./max. threshold value of the AC thermal operation1,13 - 1,45 A
Safety
-
Residual current typeA
-
Ingress Protection (IP) classIP20
Main electrical attributes
-
Rated short-circuit breaking capacity Icn AC according to IEC 60898-16 kA
Voltage
-
Rated insulation voltage Ui250 V
-
Rated impulse withstand voltage Uimp4000 V
-
Max. operating voltage253 V
-
Rated operational voltage Ue230 - 240 V
-
Overvoltage category according to IEC 60947-13
Power
-
Total power loss under IN1,50 W
Frequency
-
Frequency50 - 50 Hz
Use conditions
-
Altitude2000 m
-
Class of energy limitation I²t3
-
Operating temperature-5 - 60 °C
-
Storage/transport temperature-25 - 60 °C
Endurance
-
Electric endurance in number of cycles2000
-
Number of mechanical operations4000
Connection
-
Cross-section of input with screws, for flexible conductors1 - 10 mm²
-
Cross-section of input with screws, for massive conductors1 - 16 mm²
Installation, mounting
-
Type of top connection for modular devicesScrew terminal
-
Type of bottom connection for modular devicesbiconnect
Capacity
-
Number of modules1
Dimensions
-
Height115 mm
-
Width17,50 mm
-
Depth70 mm
Compatibility
-
Suitable for DIN RailYes
Environmental value
We are committed to improve our environmental performance by reducing our carbon footprint. Learn More
Certifications and documents
Downloads
-
Product image
-
Installation manual
Notice RCBO GB
Installation manual en-GB 2020-01-01
PDF153,58 kB -

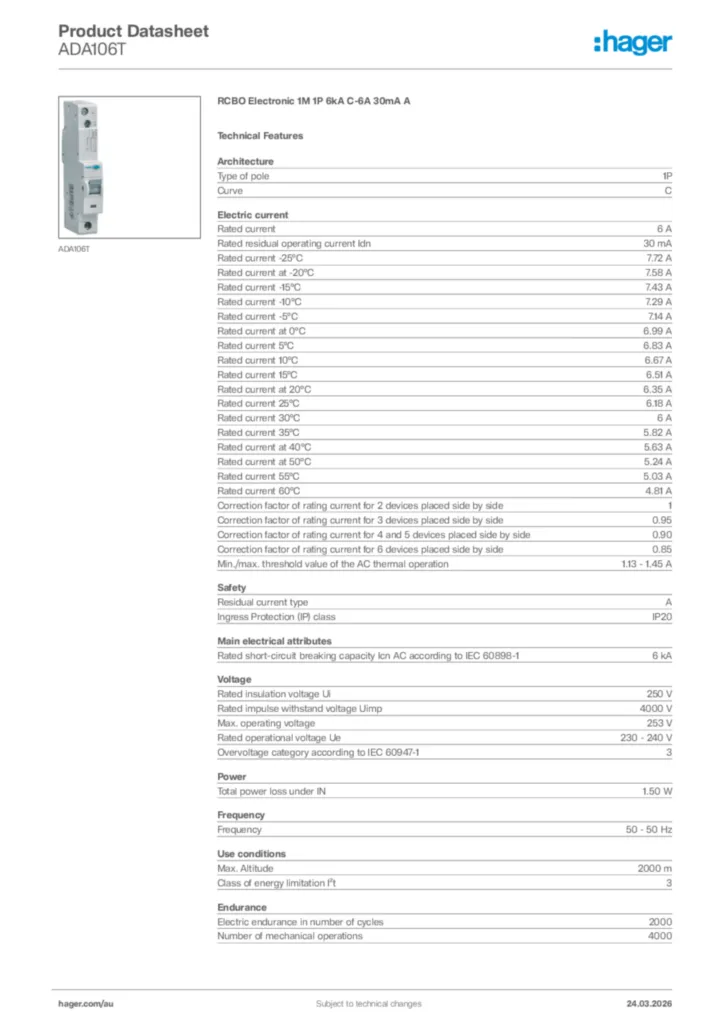

Product data sheet
