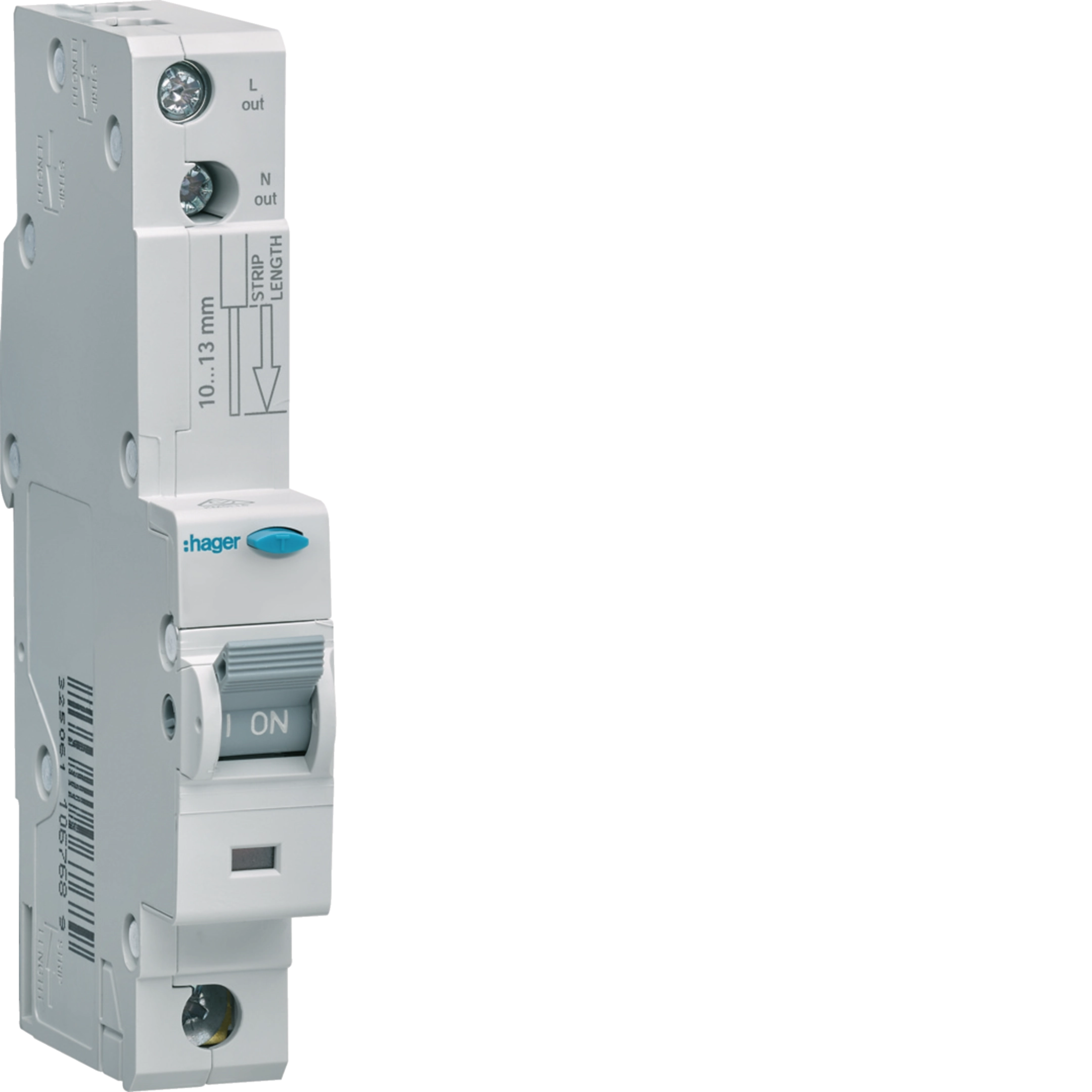

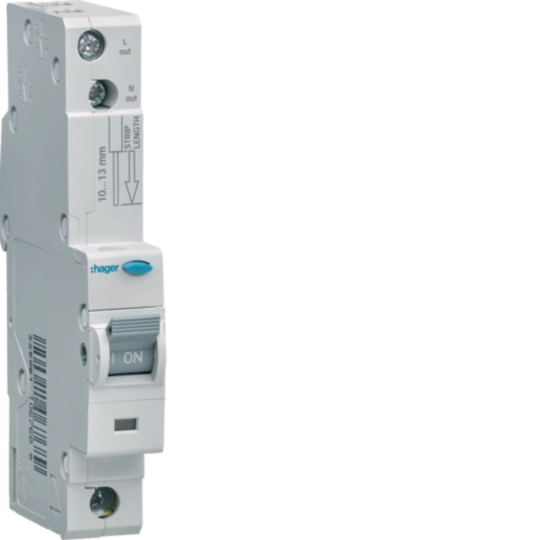

RCBO Electronic 1M 1P 10kA C-20A 30mA A Class AD120B

Name: AD120B
Brand: Hager
SKU: AD120B

No longer available

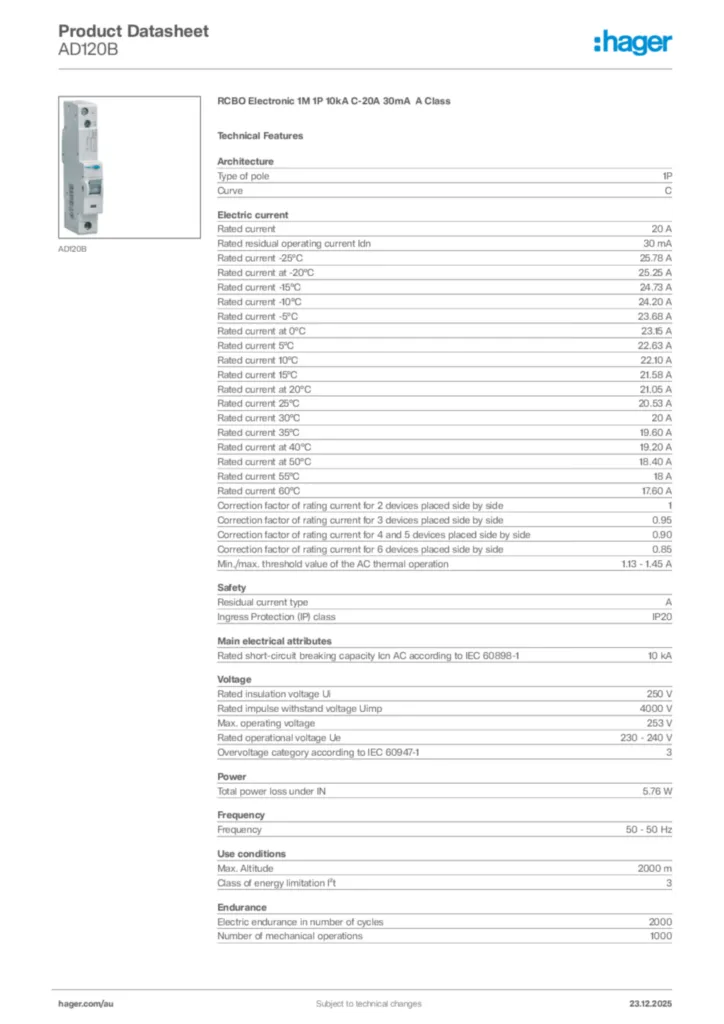

Download the data sheet

Technical properties

Rated current IN

20 A
Rated residual operating current Idn

30 mA
Rated current at -25°C

25,78 A
Rated current at -20°C

25,25 A
Rated current at -15°C

24,73 A
Rated current at -10°C

24,2 A
Rated current at -5°C

23,68 A
Rated current at 0°C

23,15 A
Rated current at 5°C

22,63 A
Rated current at 10°C

22,1 A
Rated current at 15°C

21,58 A
Rated current at 20°C

21,05 A
Rated current at 25°C

20,53 A
Rated current at 30°C

20 A
Rated current at 35°C

19,6 A
Rated current at 40°C

19,2 A
Rated current at 50°C

18,4 A
Rated current at 55°C

18 A
Rated current at 60°C

17,6 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²
