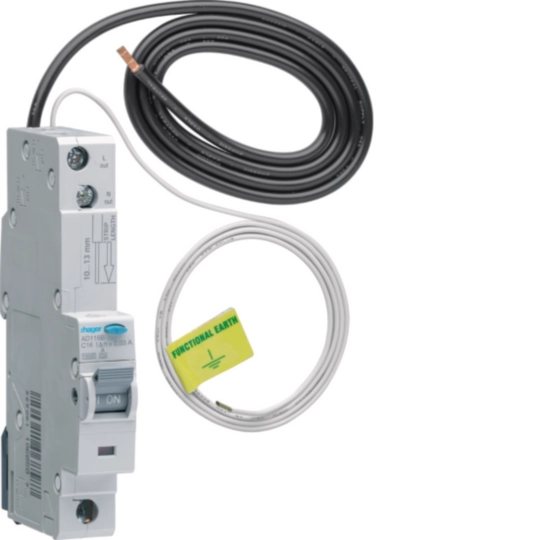

RCBO Electronic 1M 1P 10kA C-16A 30mA A Class AD116B

Name: AD116B
Brand: Hager
SKU: AD116B

EAN

3250611068587

Packaging

1 Piece

No longer available

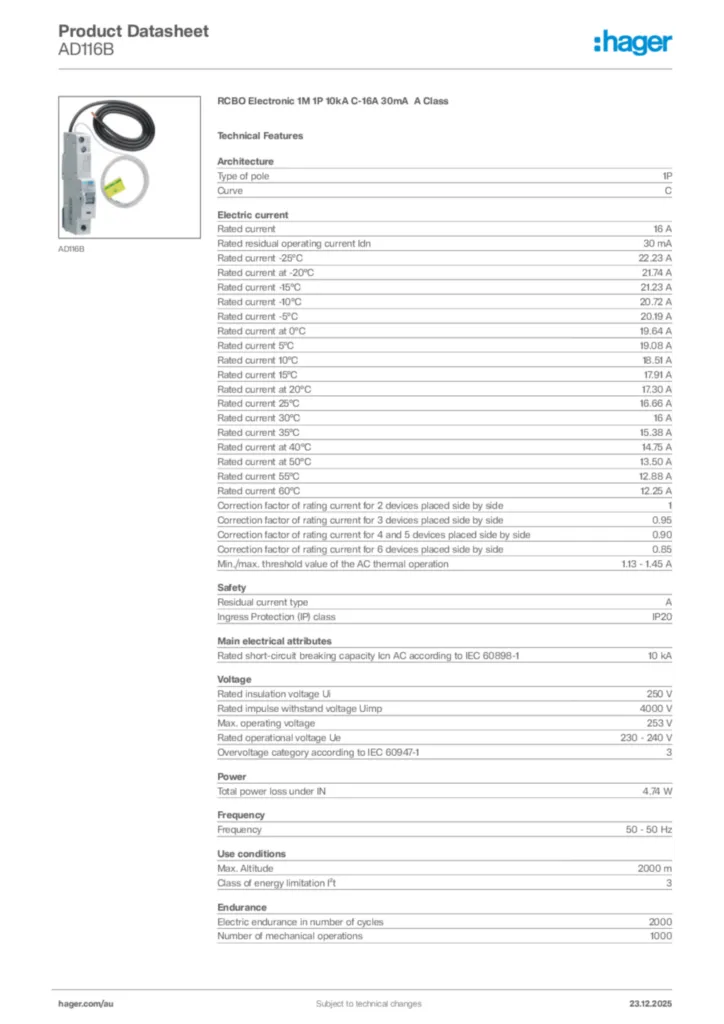

Download the data sheet

Technical properties

Rated current

16 A
Rated residual operating current Idn

30 mA
Rated current -25°C

22,23 A
Rated current at -20°C

21,74 A
Rated current -15°C

21,23 A
Rated current -10°C

20,72 A
Rated current -5°C

20,19 A
Rated current at 0°C

19,64 A
Rated current 5°C

19,08 A
Rated current 10°C

18,51 A
Rated current 15°C

17,91 A
Rated current at 20°C

17,30 A
Rated current 25°C

16,66 A
Rated current 30°C

16 A
Rated current 35°C

15,38 A
Rated current at 40°C

14,75 A
Rated current at 50°C

13,50 A
Rated current 55°C

12,88 A
Rated current 60°C

12,25 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
