EAN

3250611068563

Packaging

1 Piece

RCBO Electronic 1M 1P 10kA C-6A 30mA A Class AD106B

Name: AD106B
Brand: Hager
SKU: AD106B

No longer available

ADC206B

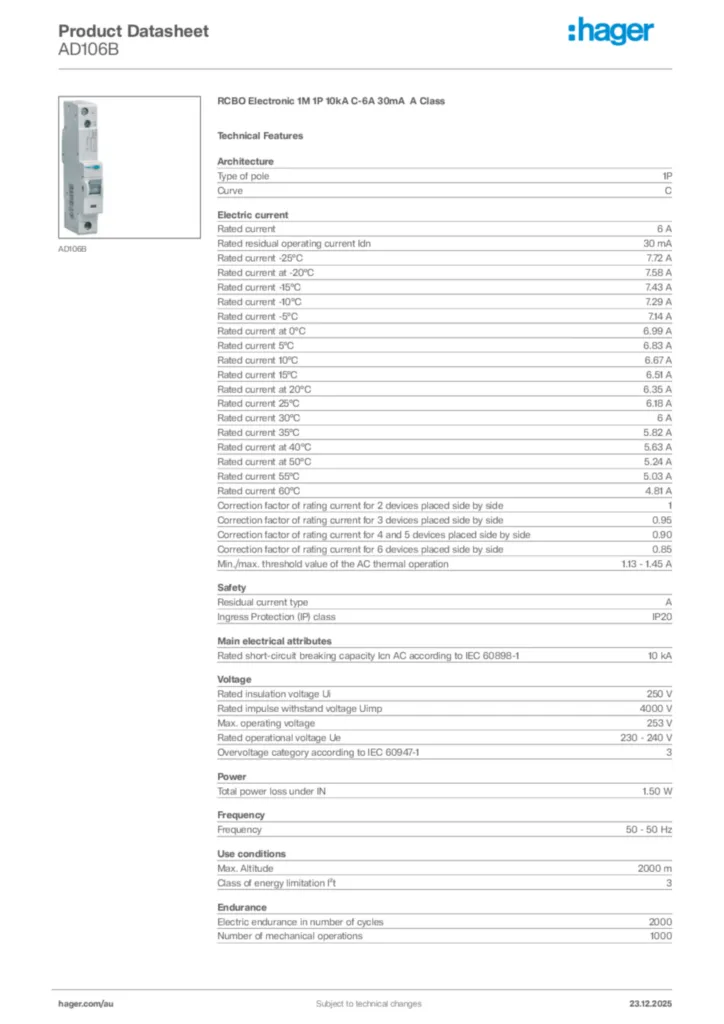

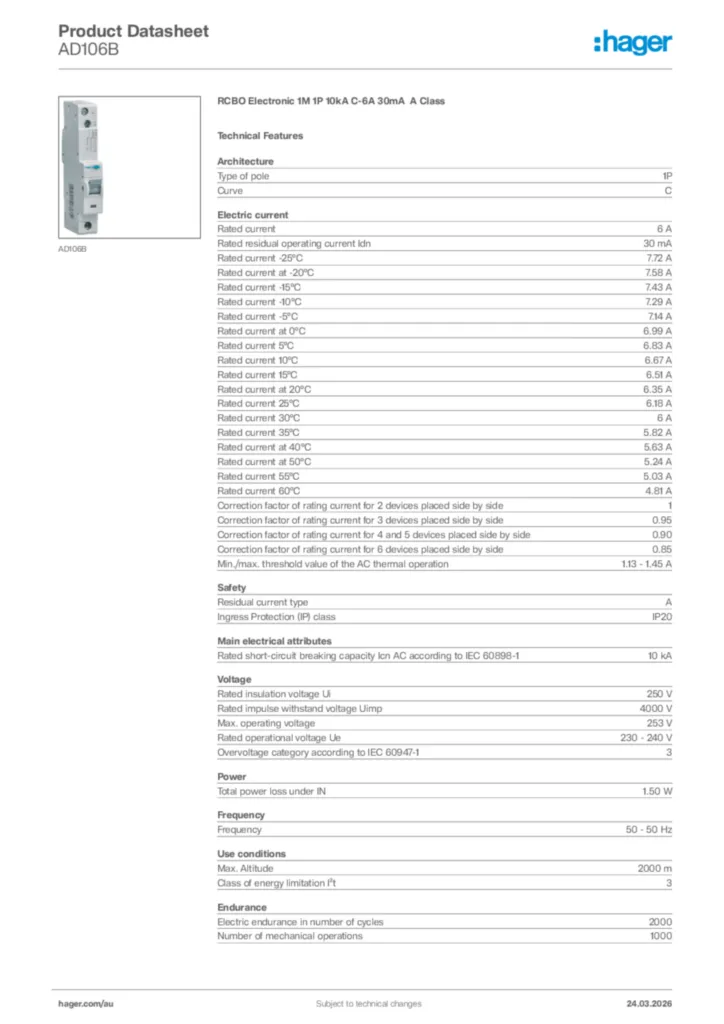

Download the data sheet

Technical properties

Rated current

6 A
Rated residual operating current Idn

30 mA
Rated current -25°C

7,72 A
Rated current at -20°C

7,58 A
Rated current -15°C

7,43 A
Rated current -10°C

7,29 A
Rated current -5°C

7,14 A
Rated current at 0°C

6,99 A
Rated current 5°C

6,83 A
Rated current 10°C

6,67 A
Rated current 15°C

6,51 A
Rated current at 20°C

6,35 A
Rated current 25°C

6,18 A
Rated current 30°C

6 A
Rated current 35°C

5,82 A
Rated current at 40°C

5,63 A
Rated current at 50°C

5,24 A
Rated current 55°C

5,03 A
Rated current 60°C

4,81 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
