RCBO Electronic 1M 1P 6kA C-6A 10mA A Class ACA106T

Name: ACA106T
Brand: Hager
SKU: ACA106T

EAN

3250611064008

Packaging

1 Piece

This product is unfortunately no longer available. Please contact our Customer Service team on 1300 850 253 for more information. We do have alternative solution that may be suitable

Accessories
Technical properties
Environmental value
Documentations

Download the data sheet

Complete your system

Optional accessories

Locking interlocking functions 1 products available

Technical properties

Type of pole

1P
Curve

C

Rated current

6 A
Rated residual operating current Idn

10 mA
Rated current -25°C

7,72 A
Rated current at -20°C

7,58 A
Rated current -15°C

7,43 A
Rated current -10°C

7,29 A
Rated current -5°C

7,14 A
Rated current at 0°C

6,99 A
Rated current 5°C

6,83 A
Rated current 10°C

6,67 A
Rated current 15°C

6,51 A
Rated current at 20°C

6,35 A
Rated current 25°C

6,18 A
Rated current 30°C

6 A
Rated current 35°C

5,82 A
Rated current at 40°C

5,63 A
Rated current at 50°C

5,24 A
Rated current 55°C

5,03 A
Rated current 60°C

4,81 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Residual current type

A
Ingress Protection (IP) class

IP20

Rated short-circuit breaking capacity Icn AC according to IEC 60898-1

6 kA

Rated insulation voltage Ui

250 V
Rated impulse withstand voltage Uimp

4000 V
Max. operating voltage

253 V
Rated operational voltage Ue

230 - 240 V
Overvoltage category according to IEC 60947-1

3

Total power loss under IN

1,50 W

Frequency

50 - 50 Hz

Altitude

2000 m
Class of energy limitation I²t

3
Operating temperature

-5 - 60 °C
Storage/transport temperature

-25 - 60 °C

Electric endurance in number of cycles

2000
Number of mechanical operations

1000

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²

Nominal tightening torque

2,10 - 2,10 Nm
Type of top connection for modular devices

Screw terminal
Type of bottom connection for modular devices

biconnect

Number of modules

1

Height

110 mm
Width

17,80 mm
Depth

70 mm

Suitable for DIN Rail

Yes

Environmental value

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

Certifications and documents

REACH declaration ACA106T (english)

PDF

103,10 kB

RoHS declaration ACA106T (english)

PDF

103,84 kB

Downloads

Product image

Product Image ACA106T
Installation manual

Notice RCBO GB

Installation manual en-GB 2020-01-01

PDF

153,58 kB
Product data sheet

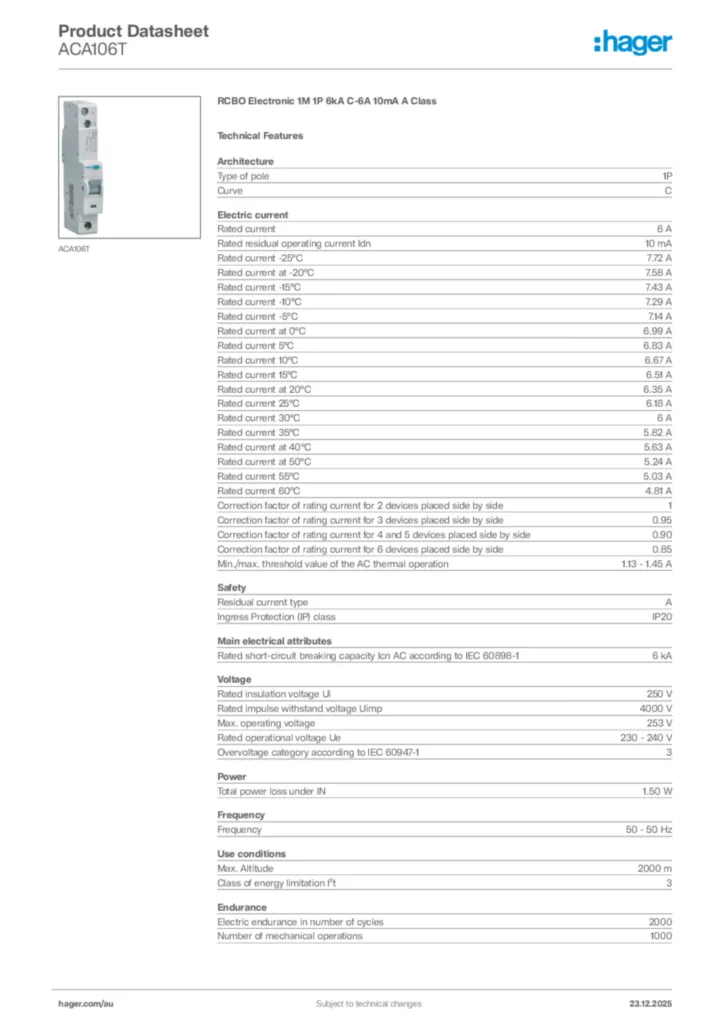

ACA1xxT Product Data and Technical Specification

Product data sheet en-GB 2019-10-11

PDF

115,08 kB
Declaration of conformity

Declaration

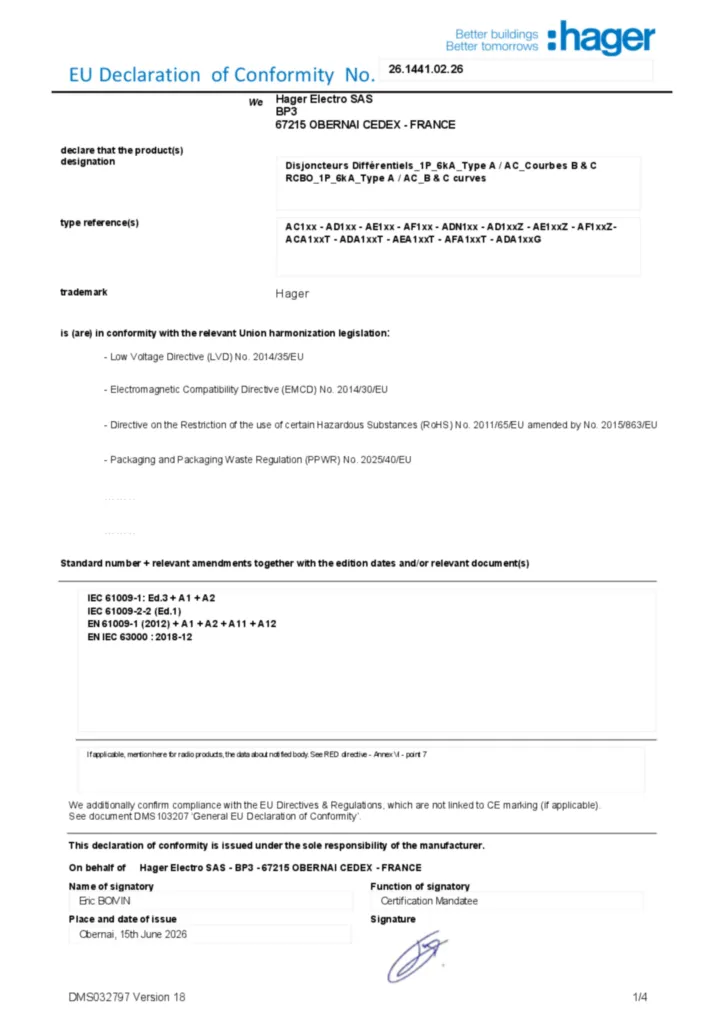

Declaration of conformity International 2018-12-21
