EAN

3250611013297

Packaging

1 Piece

RCBO Electronic 1M 1P 10kA C-32A 10mA A Class AC132B

Name: AC132B
Brand: Hager
SKU: AC132B

No longer available

ACC932T

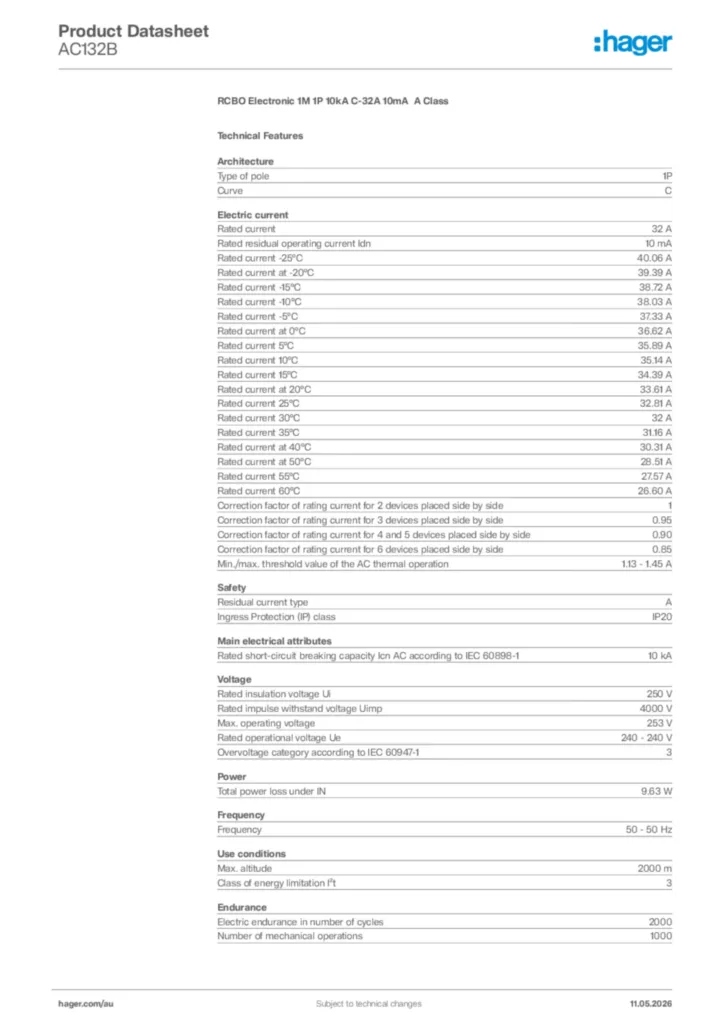

Download the data sheet

Complete your system

Rated current IN

32 A
Rated residual operating current Idn

10 mA
Rated current at -25°C

40,29 A
Rated current at -20°C

39,54 A
Rated current at -15°C

38,78 A
Rated current at -10°C

38,03 A
Rated current at -5°C

37,28 A
Rated current at 0°C

36,52 A
Rated current at 5°C

35,77 A
Rated current at 10°C

35,02 A
Rated current at 15°C

34,26 A
Rated current at 20°C

33,51 A
Rated current at 25°C

32,75 A
Rated current at 30°C

32 A
Rated current at 35°C

31,13 A
Rated current at 40°C

30,26 A
Rated current at 50°C

28,51 A
Rated current at 55°C

27,64 A
Rated current at 60°C

26,77 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
Cross-section of output with screws, for flexible conductors

1 - 16 mm²
Cross-section of output with screws, for massive conductors

1 - 25 mm²

We are committed to improve our environmental performance by reducing our carbon footprint. Learn More

RoHS conform Yes

REACH declaration AC132B

PDF

RoHS report AC132B

PDF
