EAN

3250611013259

Packaging

1 Piece

RCBO Electronic 1M 1P 10kA C-10A 10mA A Class AC110B

Name: AC110B
Brand: Hager
SKU: AC110B

No longer available

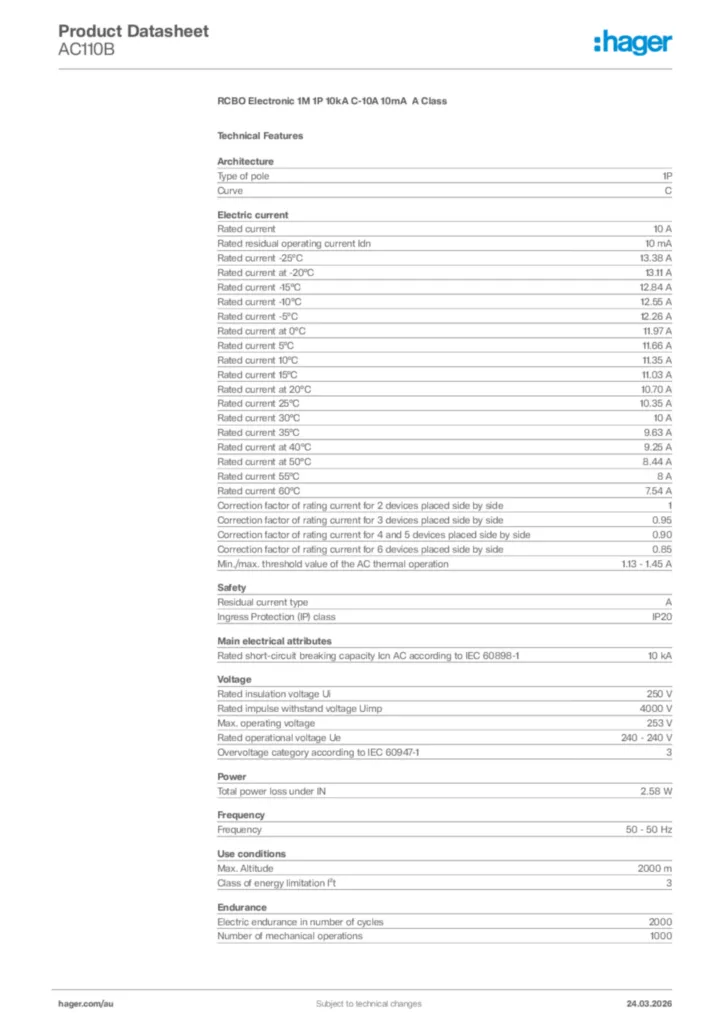

Download the data sheet

Complete your system

Rated current

10 A
Rated residual operating current Idn

10 mA
Rated current -25°C

13,38 A
Rated current at -20°C

13,11 A
Rated current -15°C

12,84 A
Rated current -10°C

12,55 A
Rated current -5°C

12,26 A
Rated current at 0°C

11,97 A
Rated current 5°C

11,66 A
Rated current 10°C

11,35 A
Rated current 15°C

11,03 A
Rated current at 20°C

10,70 A
Rated current 25°C

10,35 A
Rated current 30°C

10 A
Rated current 35°C

9,63 A
Rated current at 40°C

9,25 A
Rated current at 50°C

8,44 A
Rated current 55°C

8 A
Rated current 60°C

7,54 A
Correction factor of rating current for 2 devices placed side by side

1
Correction factor of rating current for 3 devices placed side by side

0,95
Correction factor of rating current for 4 and 5 devices placed side by side

0,90
Correction factor of rating current for 6 devices placed side by side

0,85
Min./max. threshold value of the AC thermal operation

1,13 - 1,45 A

Cross-section of input with screws, for flexible conductors

1 - 16 mm²
Cross-section of input with screws, for massive conductors

1 - 25 mm²
Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 25 mm²
