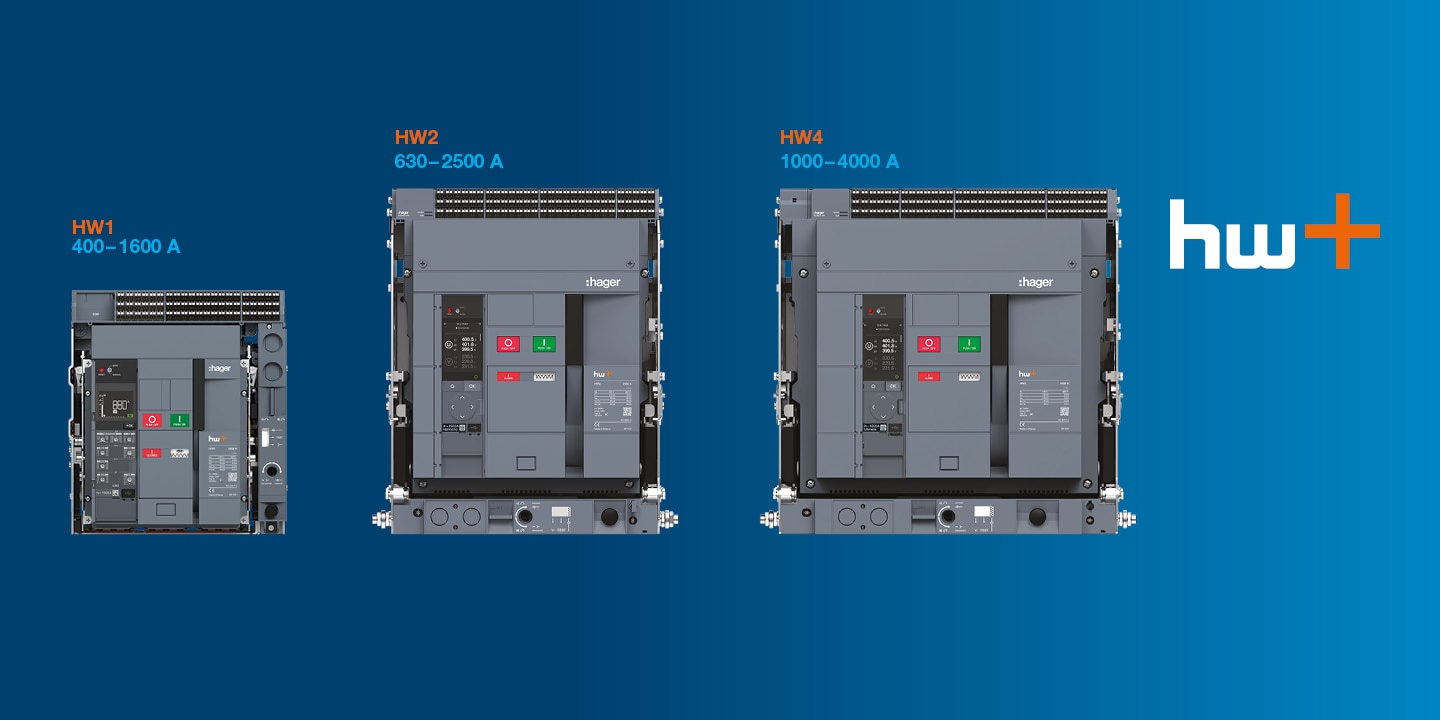

This is what the new air circuit breaker range hw+ is all about! Choose from 3 versions with different rating & breaking capacities, as well as the trip units sentinel and sentinel Energy, and you’ll find the perfect solution for your electrical installations.
Whether you're an electrical consultant, a panel builder, an installer or operator: Our air circuit breakers HW+ offer all the features you need to improve system design, construction and operation, in every commercial sector.
With our new air circuit breakers, you achieve maximum flexibility in system planning.
All air circuit breakers of the hw+ range can be easily integrated into the quadro evo power distribution switch board. This way, the core of your power supply is exactly where it belongs - at the heart of your switchgear - and offers reliable protection against overloads, short circuits and other factors.
Auxiliary switches are used to remotely signal the status of the ACB (ON or OFF)
The spring charging motor is used to charge the spring mechanism when the ACB is closed.
The coils are used to remotely open or close the ACB. 3 coils in total ca nbe mounted in the ACB:
Prevent push button touching with padlocking systems. Can also be used to force and lock in OFF the ACB.
Easily Lock the ACB in OFF thanks to a Ronis keylock.
Interlock 2 or 3 ACB together for safety applications. Compatible for all circuit breaker versions (3P & 4P, Fixed & Drawout).
As your partner, we will support you with the right tools throughout the entire process. From planning and customisation to full operation.

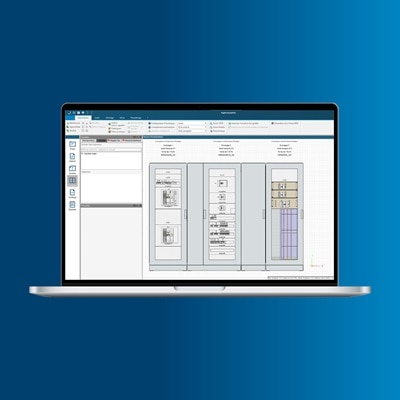

Our software offers an end-to-end solution, from network calculations, to commissioning devices and planning distributor fuse enclosures.

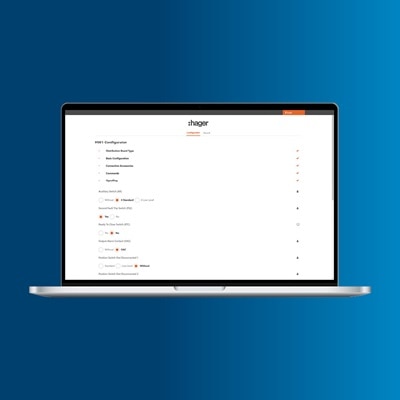

With the HW+ web configurator, you can customise your circuit breaker according to your needs and choose from type, trip unit and configuration of your ACB.

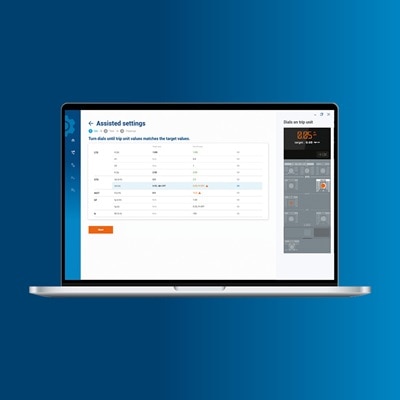

The Hager Power Setup software assists you with predefined settings during commissioning. Additionally, you can import protection settings and retrieve operation logs through an interface with Hagercad.

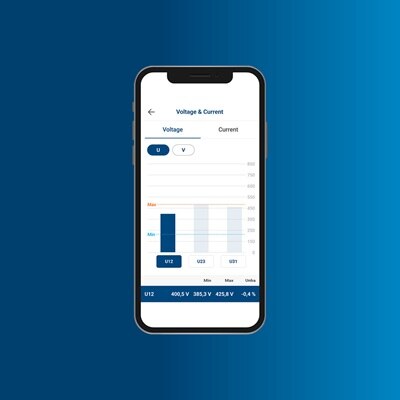

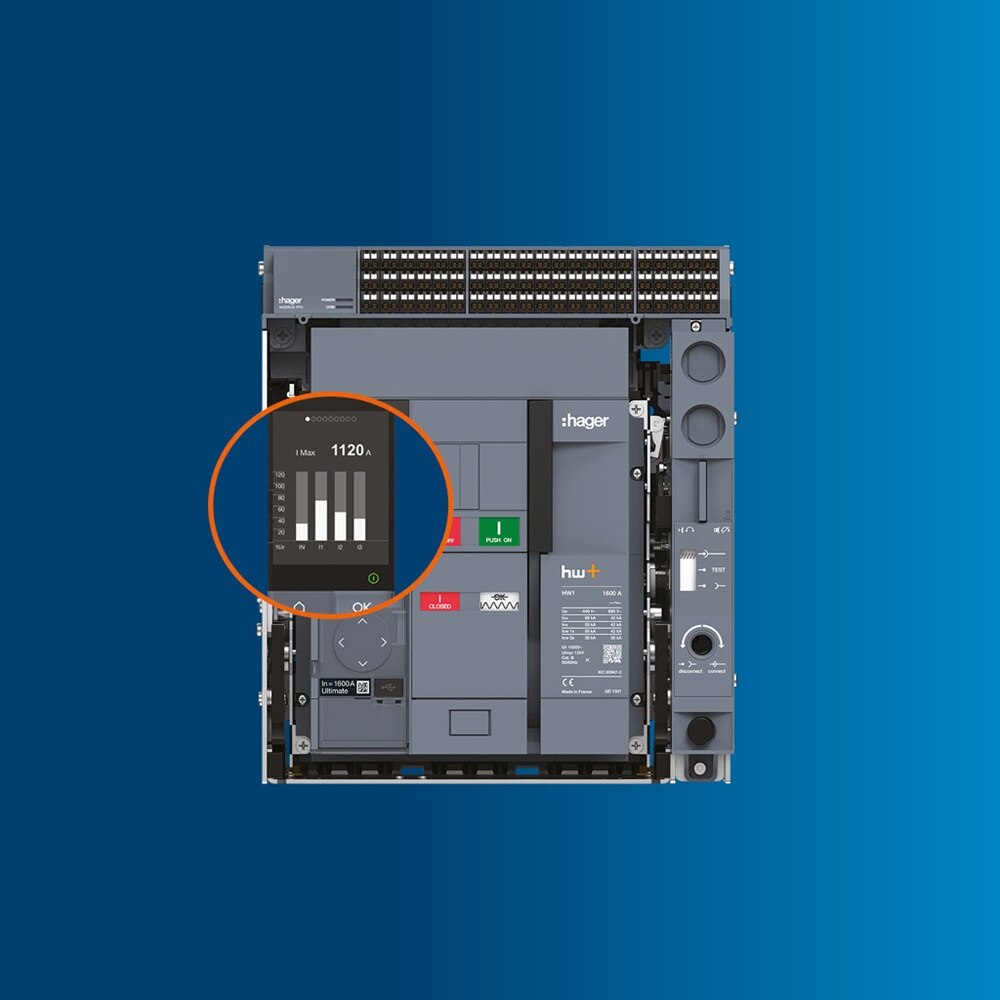

In combination with the trip unit sentinel energy, you’re able to monitor the operating status, maintenance info and check the measured values at any time.
