    • WGDS113SUSB
    EAN-Nr.
    3250617507783
    Packaging
    8 Pieces
    • Sockets

    13A SINGLE SWITCHED SOCKET + USB WGDS113SUSB

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    13A SINGLE SWITCHED SOCKET + USB

    WGDS113SUSB

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 4 products available

    Referenced by

    • WGDCH2

      2G multi-gang frame
      0.00 €  / *
    • WGDCH3

      3G multi-gang frame
      0.00 €  / *
    • WGDCH4

      4G multi-gang frame
      0.00 €  / *
    • WGDCH5

      5G multi-gang frame
      0.00 €  / *

    Technical characteristics

    Voltage
    • Rated voltage
      230 V
    • Output voltage
      0-0 V
    Elec­tric current
    • Output current
      2400 mA
    • Rated current
      13 A
    Frequency
    • Frequency
      50 - 60 Hz
    Power
    • Output power
      0
    • Power consump­tion standby
      0,15 W
    Mater­ials
    • Colour
      White
    • Surface finish
      Glossy
    • Material
      Polycar­bonate (PC)
    • Treat­ment
      Untreated
    • Contains recycled material (% of total plastic weight)
      0
    Dimen­sions
    • Height
      28 mm
    • Width
      86 mm
    • Depth
      28 mm
    • Built-in depth flush-­mounted boxes
      35 mm
    • Built-in depth
      28 mm
    Cable
    • Cable length
      0
    Connec­tion
    • Connect­or/plug type
      British Standard
    • Cross-sec­tion flex­ible conductor without wire end sleeve
      0,08 - 4 mm²
    Install­a­tion, mounting
    • Mounting on
      Flush mounting
    • Mount­ing-/­Con­nec­tion Posi­tion
      Back
    Connectivity
    • Type of connec­tion
      Screw terminal
    • With claw mounting
      No
    • Mounting type
      Screw mounting
    • Connect­or/plug type USB
      AA
    Equip­ment
    • Connect­or/plug type socket outlet
      British Standard
    • Rotated central insert
      Yes
    • With hinged lid
      No
    • With round protective earth pin
      No
    • With signal lamp
      No
    • With lock
      No
    Accessories
    • Has labelling field
      No
    • Pre-equipped with
      None
    Capa­city
    • Number of modules
      0
    Safety
    • With enhanced contact protec­tion
      No
    • Impact resist­ance IK
      IK02
    • Ingress Protec­tion (IP) class
      IP20
    Func­tions
    • With orient­a­tion lighting
      No
    • With func­tion lighting
      No
    Iden­ti­fic­a­tion
    • With imprint
      No
    • Related Systems
      shark

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration WGDS113SUSB
    PDF
    Hager RoHS report WGDS113SUSB
    PDF

    Downloads

    • Image WGDS113SUSB | Hager

      Product Image WGDS113SUSB

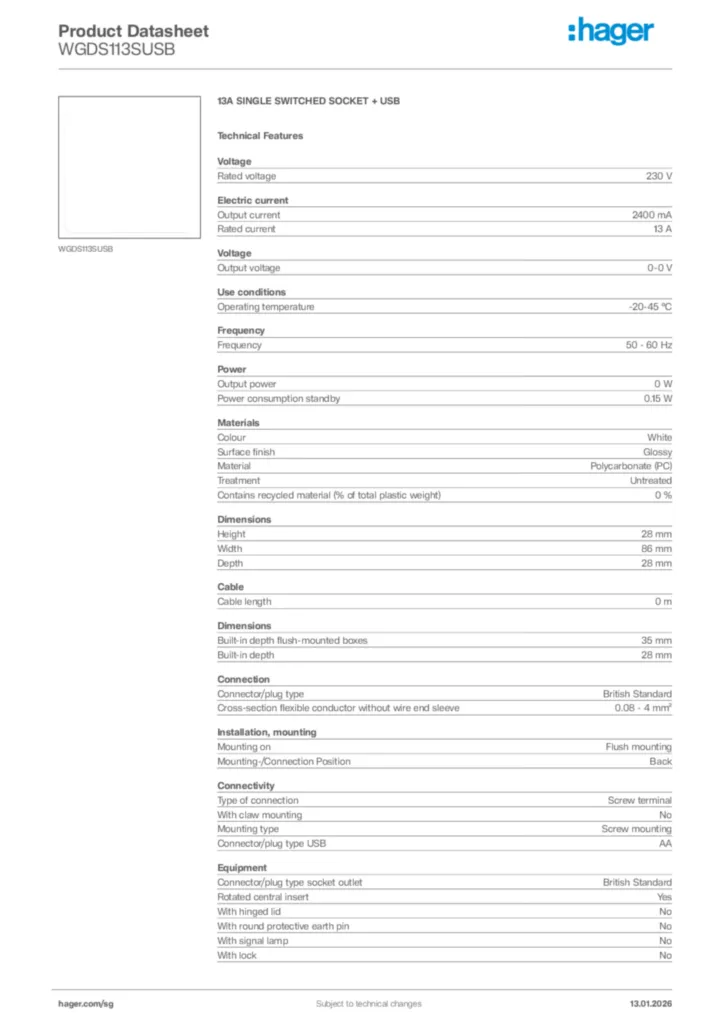

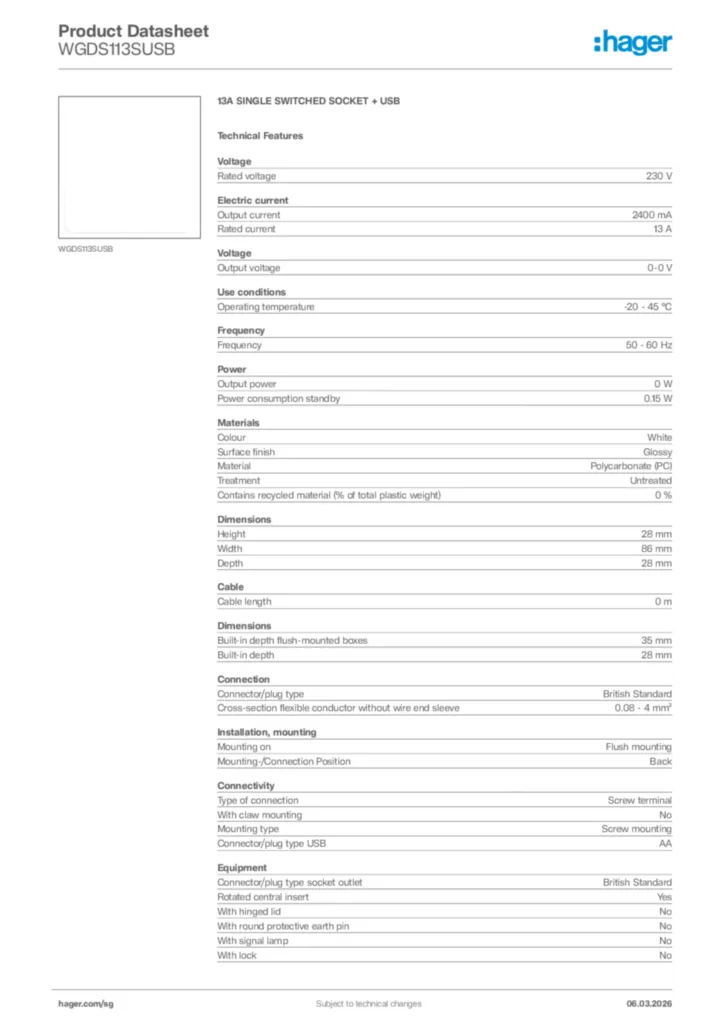

    • Product datasheet

      Image Hager Product data sheet WGDS113SUSB | Hager

      Hager Product data sheet WGDS113SUSB

      13A SINGLE SWITCHED SOCKET + USB

      PDF

    • Installation manual

      Image Manual for WGDS113SXUSBXX - Switched socket USB (EN, 2020-04) | Hager

      Manual for WGDS113SXUSBXX - Switched socket USB (EN, 2020-04)

      Installation manual en-GB 2020-01-01

      PDF
      1,17 MB

    • Flyer

      Image Dream selection chart | Hager

      Dream selection chart

      Flyer en-GB 2023-04-04

      PDF
      429,29 kB

    • Catalogue

      Image Dream catalogue | Hager

      Dream catalogue

      Catalogue en-GB 2026-01-22

      PDF
      3,08 MB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity en-GB 2022-12-29

      PDF
      107,49 kB
