Flush mounted radio DIMMER 200W wires + 2 inputs TRM691AU
EAN-Nr.
3250618502084
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Connectivity
-
Radio protocolKNX Radio
-
Receiver category2
-
With bus system KNXNo
-
With bus system KNX radioYes
Dimensions
-
Height38 mm
-
Built-in depth40 mm
Equipment
-
Radio frequency bidirectionalYes
-
With switch for manual switchYes
Frequency
-
Frequency50 - 50 Hz
-
Radio reception frequency433 - 433 MHz
Power
-
Output power200 W
Voltage
-
Operating voltage230 - 230 V
-
Rated operational voltage Ue230 - 230 V
-
System supply voltage230 V AC
Safety
-
Ingress Protection (IP) classIP20
Use conditions
-
Operating temperature-15 - 45 °C
Connection
-
Cross-section rigid conductor0.5 - 2.5 mm²
-
Cross-section flexible conductor0.5 - 2.5 mm²
Texts
-
FunctionReset function (to factory setting)
-
Type of connectionWith screw-in lift terminals
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

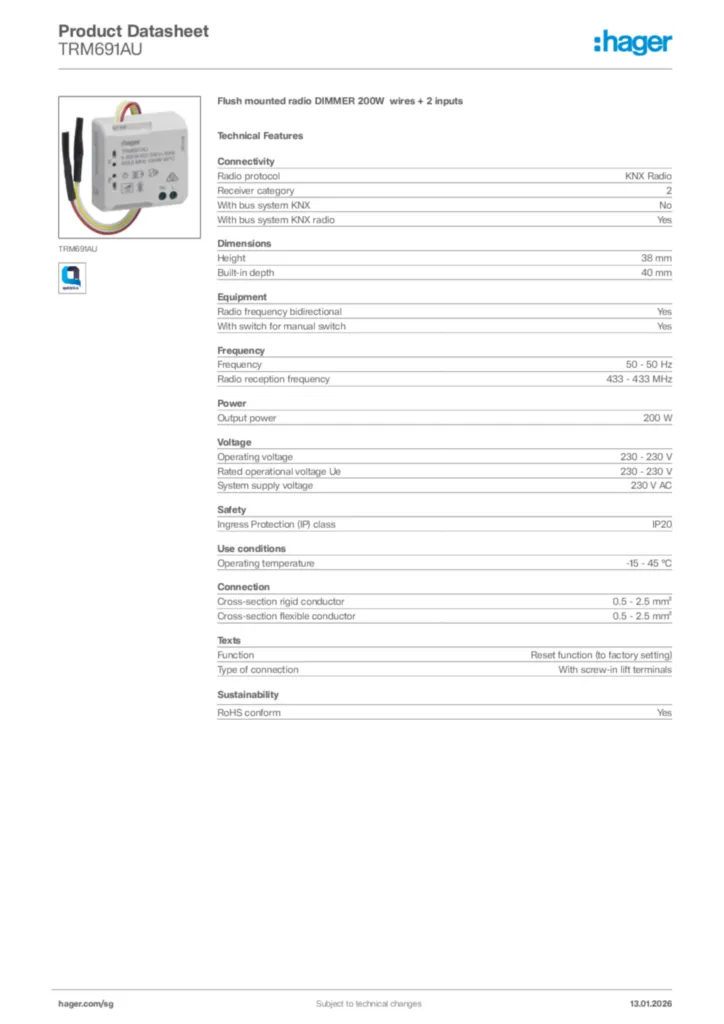

Hager Product data sheet TRM691AU
Flush mounted radio DIMMER 200W wires + 2 inputs
PDF -
Installation manual
Installation manual en-GB 2015-05-22
PDF9,76 MB -
Declaration of conformity
Declaration of conformity International 2022-10-04
PDF146,08 kB
More documentation
