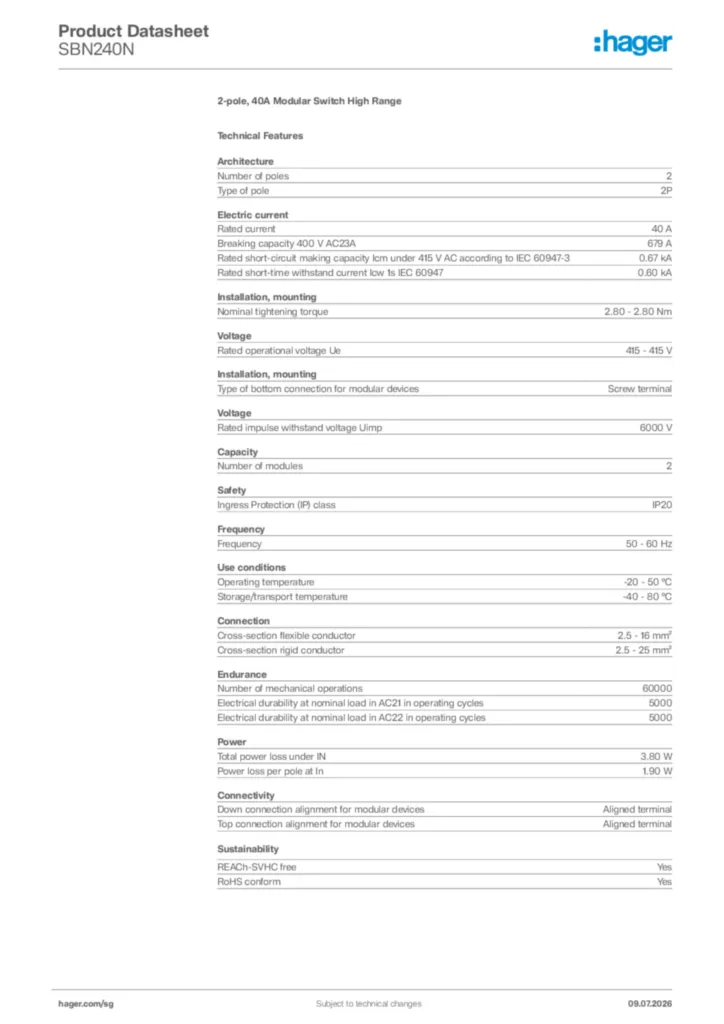

2-pole, 40A Modular Switch High Range SBN240N
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Optional accessories
-
Auxiliary device for distribution board devices 1 products available
Technical characteristics
Architecture
-
Number of poles2
-
Type of pole2P
Electric current
-
Rated current IN40 A
-
Breaking capacity 400 V AC23A679 A
-
Rated short-circuit making capacity Icm under 415 V AC according to IEC 60947-30,67 kA
-
Rated short-time withstand current Icw 1s IEC 609470,60 kA
Installation, mounting
-
Nominal tightening torque2,80 - 2,80 Nm
-
Type of bottom connection for modular devicesScrew terminal
Voltage
-
Rated operational voltage Ue415 - 415 V
-
Rated impulse withstand voltage Uimp6000 V
Capacity
-
Number of modules2
Safety
-
Ingress Protection (IP) classIP20
Frequency
-
Frequency50 - 60 Hz
Use conditions
-
Operating temperature-20 - 50 °C
-
Storage/transport temperature-40 - 80 °C
Connection
-
Cross-section flexible conductor2.5 - 16 mm²
-
Cross-section rigid conductor2.5 - 25 mm²
Endurance
-
Number of mechanical operations60000
-
Electrical durability at nominal load in AC21 in operating cycles5000
-
Electrical durability at nominal load in AC22 in operating cycles5000
Power
-
Power dissipation at IN3,80 W
-
Power loss per pole at In1,90 W
Connectivity
-
Down connection alignment for modular devicesAligned terminal
-
Top connection alignment for modular devicesAligned terminal
