    • ESC080
    EAN-Nr.
    3250612401895
    Packaging
    1 piece
    • Relays and contactors

    Auxiliary contact 6A, 1NO+1NC ESC080

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    Auxiliary contact 6A, 1NO+1NC

    ESC080

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Compatible products

    • Referenced by 110 products available

    Referenced by

    • ERD425S

      Humfree Override Contactor 25A, 4NO, 24V~ 50/60Hz
      0.00 €  / *
    • ERC216

      Relay 16A, 2NO, 230V~50Hz
      0.00 €  / *
    • SBN425

      4-pole, 25A Modular Switch
      0.00 €  / *
    • SBN416

      4-pole, 16A Modular Switch
      0.00 €  / *
    • SBN332

      3-pole, 32A Modular Switch
      0.00 €  / *
    • ESC427

      Contactor 25A, 2NO+2NC, 230V~50Hz
      0.00 €  / *
    • SBN325

      3-pole, 25A Modular Switch
      0.00 €  / *
    • SBN316

      3-pole, 16A Modular Switch
      0.00 €  / *
    • SBN216

      2-pole, 16A Modular Switch
      0.00 €  / *
    • SBN116

      1-pole, 16A Modular Switch
      0.00 €  / *
    • ESC428S

      Humfree Contactor 25A, 3NO+1NC, 230V~50/60Hz
      0.00 €  / *
    • ESD428S

      Humfree Contactor 25A, 3NO+1NC, 24V~ 50/60Hz
      0.00 €  / *
    • ESD426S

      Humfree Contactor 25A, 4NC, 24V~ 50/60Hz
      0.00 €  / *
    • ERL218

      Relay 16A, 1NO+1NC, 12V~50Hz
      0.00 €  / *
    • ESL426

      Contactor 25A, 4NC, 12V~ 50Hz
      0.00 €  / *
    • ESL425

      Contactor 25A, 4NO, 12V~ 50Hz
      0.00 €  / *
    • ESL227

      Contactor 25A, 1NO+1NC, 12V~50Hz
      0.00 €  / *
    • ESL427

      Contactor 25A, 2NO+2NC, 12V~ 50Hz
      0.00 €  / *
    • ESC227

      Contactor 25A, 1NO+1NC, 230V~50Hz
      0.00 €  / *
    • ESL226

      Contactor 25A, 2NC, 12V~50Hz
      0.00 €  / *

    Technical characteristics

    Elec­tric current
    • Rated current
      6 A
    Voltage
    • Rated insu­la­tion voltage Ui
      240 V
    Capa­city
    • Number of modules
      0,50
    Use condi­tions
    • Oper­ating temper­ature
      -10 - 50 °C
    • Stor­age/trans­port temper­ature
      -40 - 80 °C
    Connectivity
    • Type of connec­tion
      Screw terminal
    Connec­tion
    • Cross-sec­tion flex­ible conductor
      1 - 6 mm²
    • Cross-sec­tion rigid conductor
      1 - 6 mm²
    • Type of contacts
      1NC+1NO
    Power
    • Total power loss under IN
      0,10 W
    Dimen­sions
    • Height
      83 mm
    • Width
      11 mm
    • Depth
      60 mm

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes
    Halogen free Yes

    Certifications and documents

    Hager REACH declaration ESC080
    PDF
    Hager RoHS report ESC080
    PDF

    Downloads

    • Image ESC080 | Hager

      Product Image ESC080

    • Product datasheet

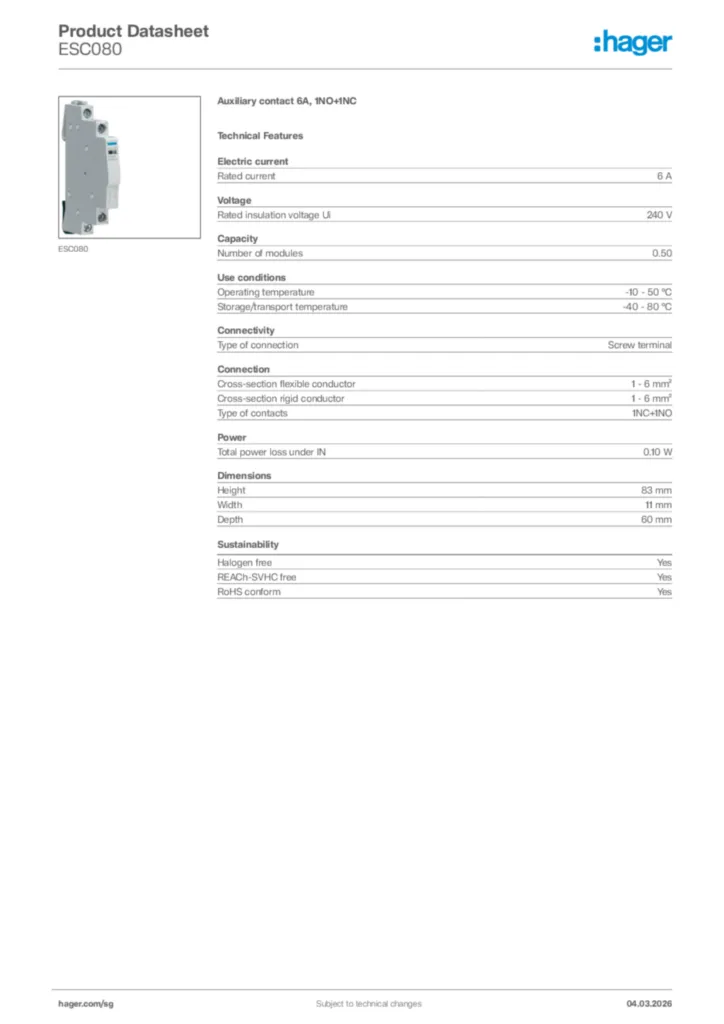

      Image Hager Product data sheet ESC080 | Hager

      Hager Product data sheet ESC080

      Auxiliary contact 6A, 1NO+1NC

      PDF

    • Installation manual

      Image Installation manual International 2021-10-13 | Hager

      Installation manual International 2021-10-13

      Installation manual International 2022-07-27

      PDF
      1,08 MB

    • Product data sheet

      Image UK_MD_TDS_Contactors.pdf | Hager

      UK_MD_TDS_Contactors.pdf

      Technical data sheet including characteristics for Contactors and Override Contactors.

      PDF
      197,47 kB

    • Declaration of conformity

      Image Declaration | Hager

      Declaration

      Declaration of conformity International 2021-12-01

      PDF
      283,97 kB
