Fuse carrier 1P 32A 690V L38 1M LSN501

Technical characteristics
Environmental value
Documentations
More products

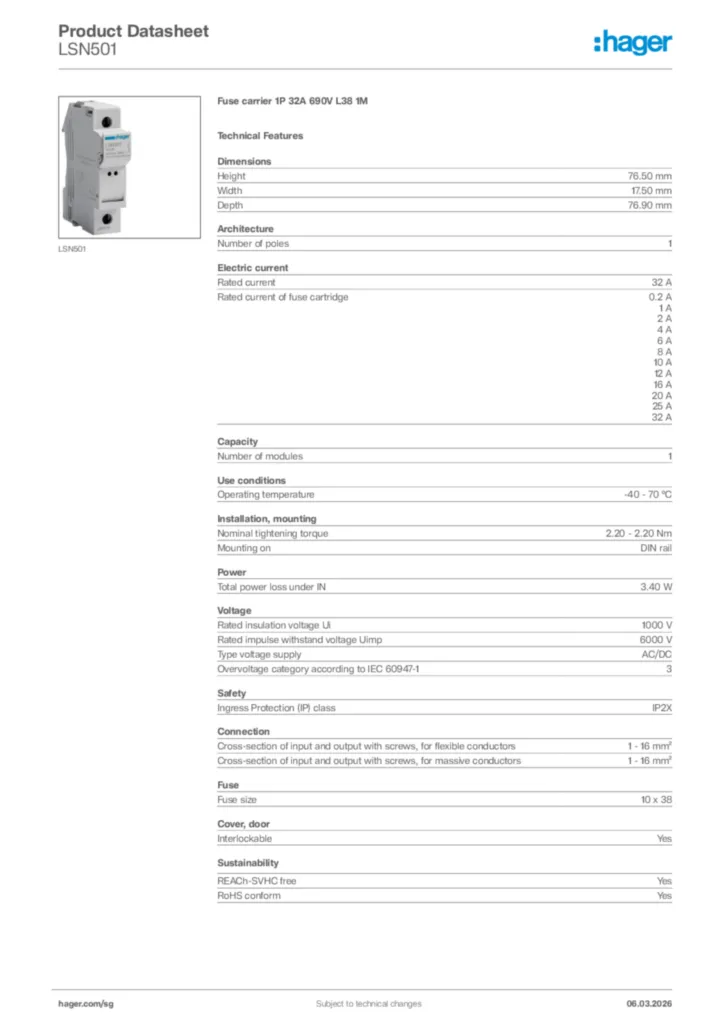

Download the sheet

Technical characteristics

Height

76,50 mm
Width

17,50 mm
Depth

76,90 mm

Number of poles

1

Rated current

32 A
Rated current of fuse cartridge

0.2 A, 1 A, 2 A, 4 A, 6 A, 8 A, 10 A, 12 A, 16 A, 20 A, 25 A, 32 A

Number of modules

1

Number of half modules of 17,5 mm

2

Operating temperature

-40 - 70 °C

Nominal tightening torque

2,20 - 2,20 Nm
Mounting on

DIN rail

Total power loss under IN

3,40 W

Rated insulation voltage Ui

1000 V
Rated impulse withstand voltage Uimp

6000 V
Type voltage supply

AC/DC
Overvoltage category according to IEC 60947-1

3

Ingress Protection (IP) class

IP2X

Cross-section of input and output with screws, for flexible conductors

1 - 16 mm²
Cross-section of input and output with screws, for massive conductors

1 - 16 mm²

Fuse size

10 x 38

Interlockable

Yes

Environmental value

We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

RoHS conform Yes

REACh-SVHC free Yes
