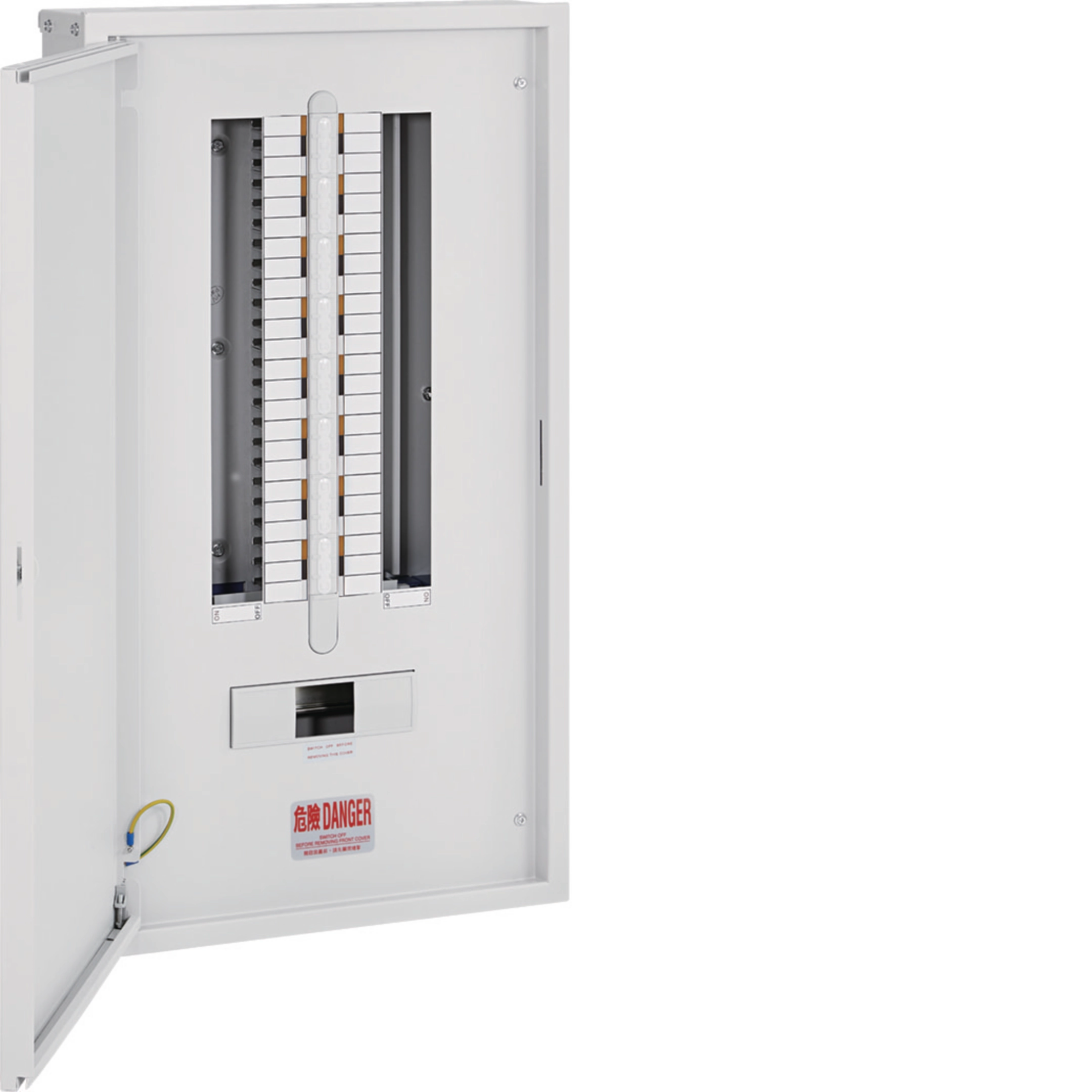

    125A TPN board, invicta, 16 way, surface mounting JK1B16S1

    Add to a list
    Add to a list

    Login to create a product list

    You need to be logged into your myHager account to create product lists

    Create an account Sign in

    125A TPN board, invicta, 16 way, surface mounting

    JK1B16S1

    • Accessories
    • Technical characteristics
    • Environmental value
    • Documentations
    • More products
    Download the sheet

    Complete your system

    Optional accessories

    • TPN/SPN boards 1 products available

    Complete your system

    • TPN/SPN boards
    • JK1E32S

      125A TPN Extension box, invicta, 32 Module with Din Rail, surface, CE version
      0.00 €  / *

    Technical characteristics

    Connec­tion
    • Number of access­ible phases
      3
    Install­a­tion, mounting
    • Mounting on
      Surface mounting
    Elec­tric current
    • Breaking and opening capa­city Idm
      0
    Equip­ment
    • Has mounting plate
      No
    • Equipped with switch
      No switch
    • Number of switches
      0
    • Type of busbar chassis
      Fixed load chassis
    Capa­city
    • Number of modules
      16
    Dimen­sions
    • Height
      820 mm
    • Width
      405 mm
    • Depth
      115 mm
    Cover, door
    • Number of cabinet doors
      1
    • Door/­cover is trans­parent
      No
    Mater­ials
    • Material
      Steel
    • RAL code
      9002
    • Colour
      Grey white
    Safety
    • Protec­tion class
      Isol­a­tion class I
    • Impact resist­ance IK
      IK05
    • Ingress Protec­tion (IP) class
      IP41
    • Locking type
      Special tool, Without lock
    Archi­tec­ture
    • Number of poles
      48

    Environmental value

    We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More

    RoHS conform Yes
    REACh-SVHC free Yes

    Certifications and documents

    125A 4 Way TPN Board c/w SD & SPD
    PDF
    17,17 MB
    Hager REACH declaration JK1B16S1
    PDF
    Hager RoHS report JK1B16S1
    PDF

    Downloads

    • Image JK1B16S1 | Hager

      Product Image JK1B16S1

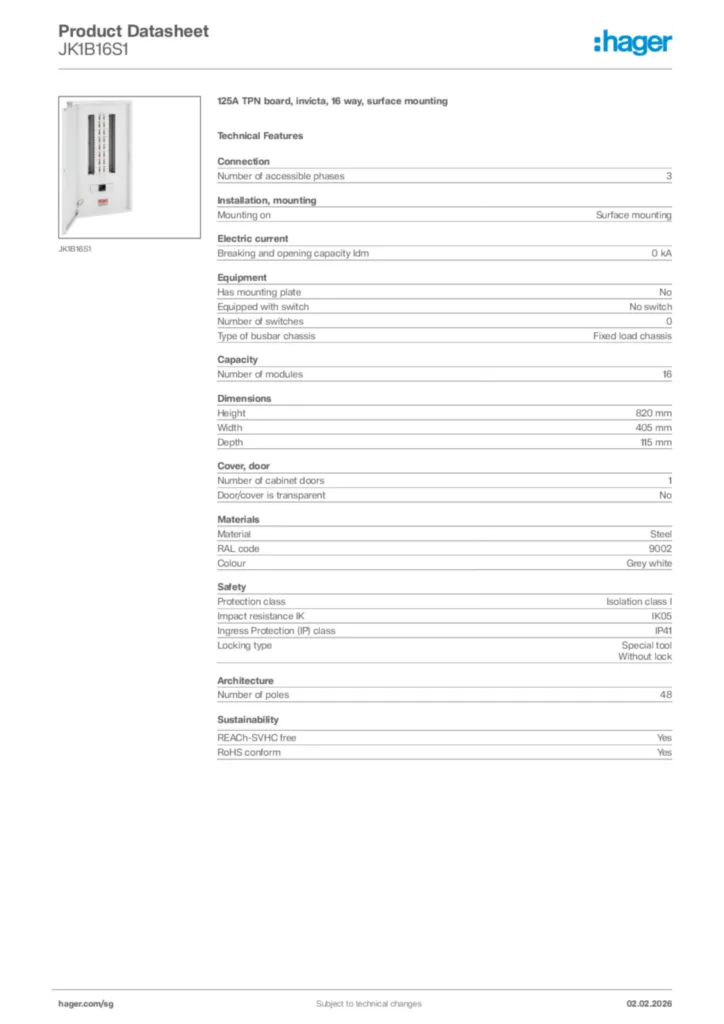

    • Product datasheet

      Image Hager Product data sheet JK1B16S1 | Hager

      Hager Product data sheet JK1B16S1

      125A TPN board, invicta, 16 way, surface mounting

      PDF

    • Declaration of conformity

      Image Declaration of conformity en-GB 2024-08-28 | Hager

      Declaration of conformity en-GB 2024-08-28

      PDF
      262,65 kB
