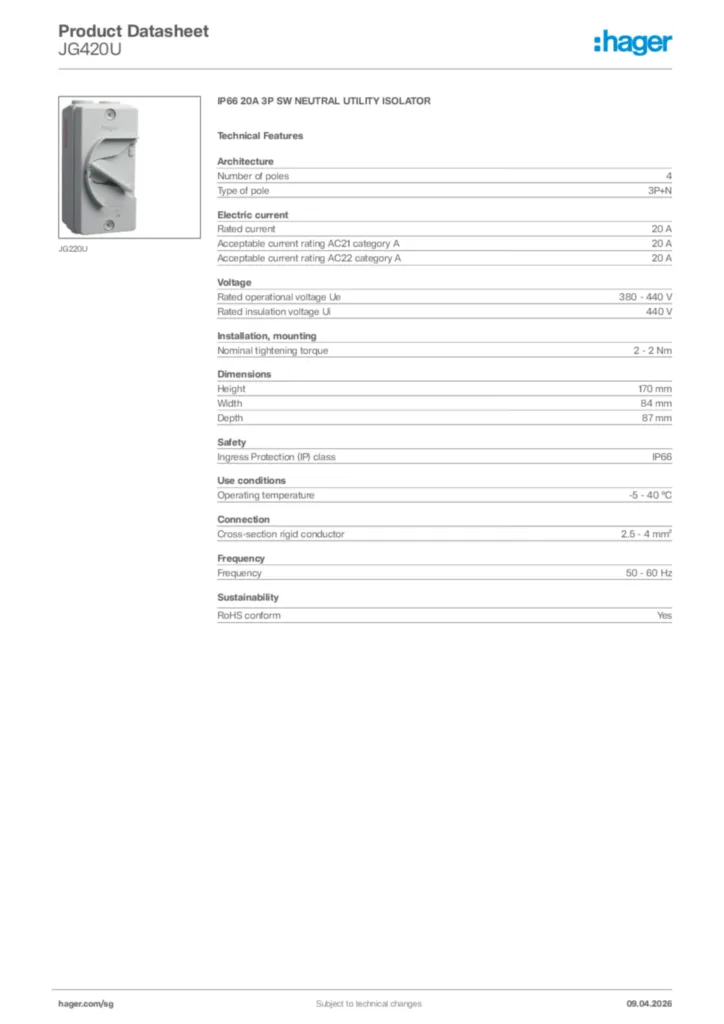

IP66 20A 3P SW NEUTRAL UTILITY ISOLATOR JG420U
EAN-Nr.
3250617509862
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles4
-
Type of pole3P+N
Electric current
-
Rated current20 A
-
Acceptable current rating AC21 category A20 A
-
Acceptable current rating AC22 category A20 A
Voltage
-
Rated operational voltage Ue380 - 440 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor2.5 - 4 mm²
Frequency
-
Frequency50 - 60 Hz
