IP66 20A 3P UTILITY ISOLATOR JG320U
EAN-Nr.
3250617509831
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Architecture
-
Number of poles3
-
Type of pole3P
Electric current
-
Rated current20 A
-
Acceptable current rating AC2120 A
-
Acceptable current rating AC21 category A20 A
-
Acceptable current rating AC22 category A20 A
Voltage
-
Rated operational voltage Ue380 - 440 V
-
Rated insulation voltage Ui440 V
Installation, mounting
-
Nominal tightening torque2 - 2 Nm
Dimensions
-
Height170 mm
-
Width84 mm
-
Depth87 mm
Safety
-
Ingress Protection (IP) classIP66
Use conditions
-
Operating temperature-5 - 40 °C
Connection
-
Cross-section rigid conductor2.5 - 4 mm²
Frequency
-
Frequency50 - 60 Hz
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents

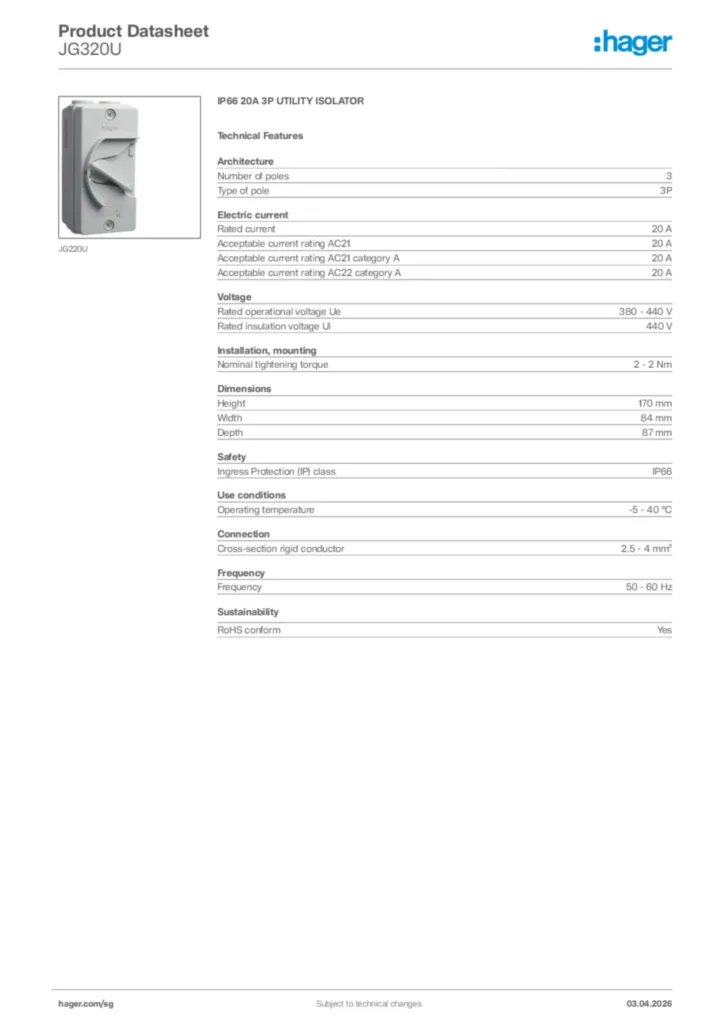

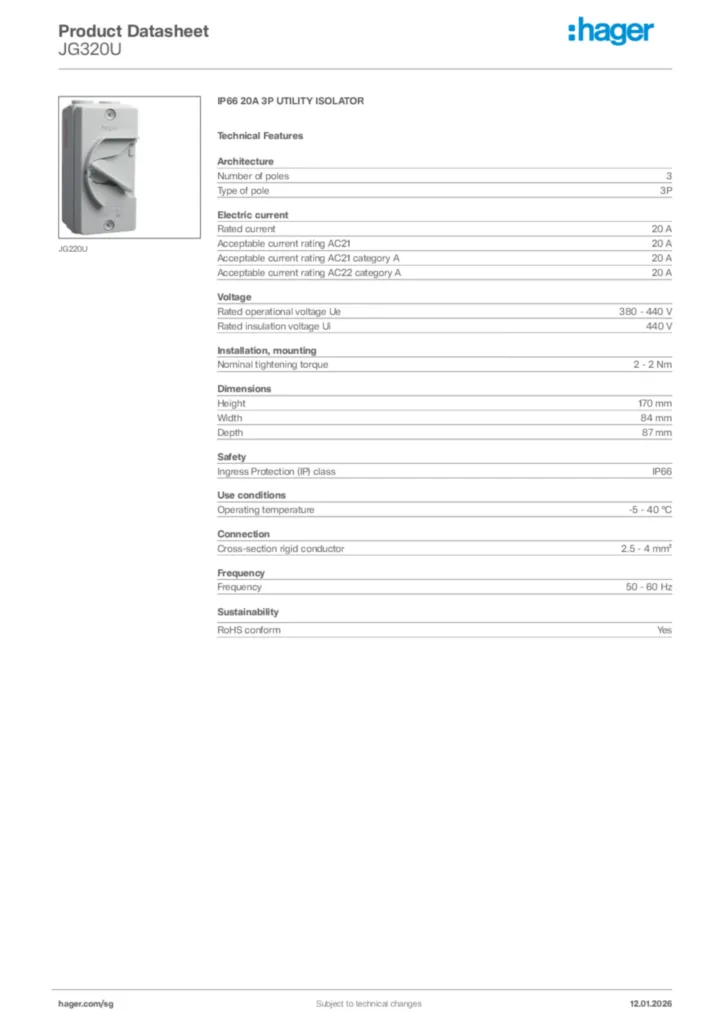

Downloads
