Moulded Case Circuit Breaker h1000 4P 50kA 800A LSI HNE801U
EAN-Nr.
3250613349677
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Only available for export countries
Complete your system
Optional accessories
-
Shunt release 6 products available -
Auxiliaries contact block 2 products available -
Motor operator 1 products available -
Handle for power circuit breaker 1 products available -
Locking interlocking functions 1 products available -
Under voltage coil 1 products available
Complete your system
-
HXC004H
Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
-
HXF004HShunt trip Release h1600 200-240V AC
-
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
-
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
-
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
-
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)
Technical characteristics
Electric current
-
Rated current800 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
Architecture
-
Number of poles4
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
Functions
-
Trip unitLSI
Main electrical attributes
-
Magnetic protection trip time100 - 200 ms
Power
-
Total power loss under IN153,60 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Safety
-
Ingress Protection (IP) classIP4X
Connection
-
Cross-section flexible conductor2x 240 mm²
-
Cross-section rigid conductor2x 240 mm²
-
Connector/plug typeTerminal
Installation, mounting
-
Nominal tightening torque65 - 65 Nm
-
Mounting-/Connection PositionFront
Settings
-
Thermal protection knob setting xIN0.4, 0.5, 0.63, 0.9, 0.95, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Downloads
-
Product datasheet

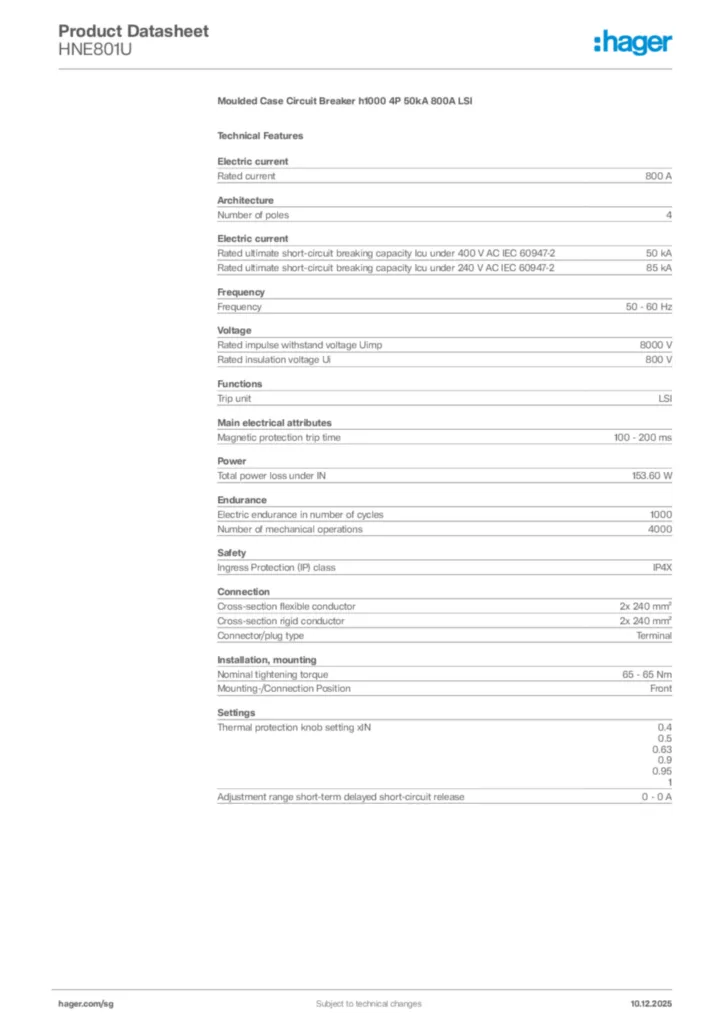

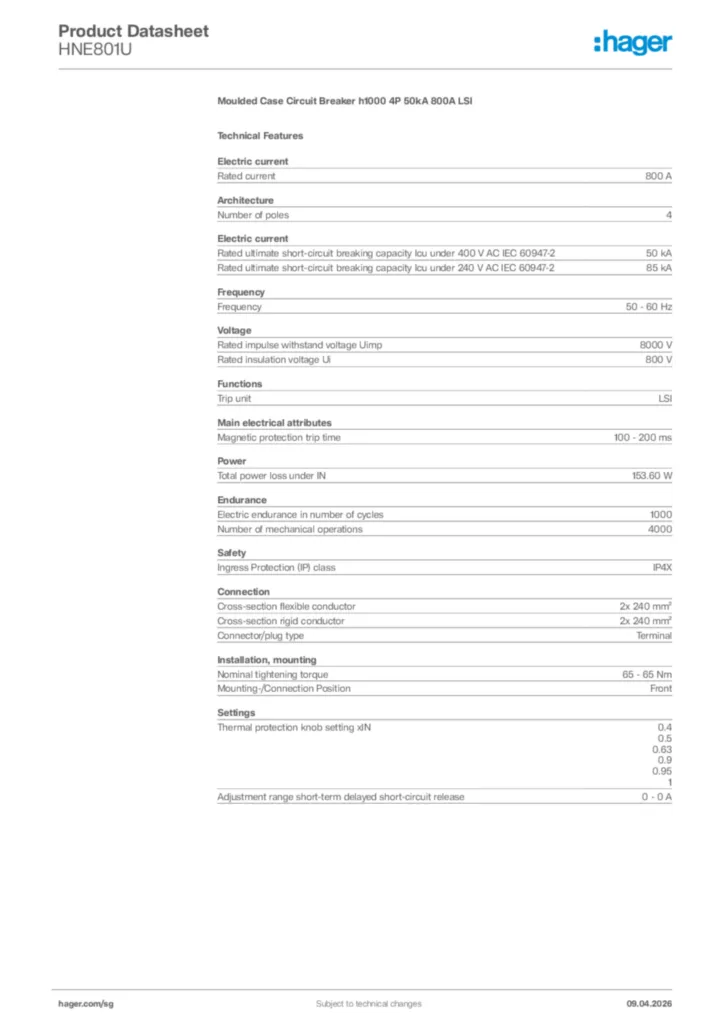

Hager Product data sheet HNE801U
