Shunt trip Release 48V DC (h250-h400-h630-h800-h1000) HXC002H
EAN-Nr.
3250613369422
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Complete your system
Compatible products
-
Referenced by 25 products available
Referenced by
-
HND400UMoulded Case Circuit Breaker h400 3P 50kA 400A TM
-
HND251HMoulded Case Circuit Breaker h630 4P 50kA 250A LSI
-
HND630HMoulded Case Circuit Breaker h630 3P 50kA 630A LSI
-
HND250HMoulded Case Circuit Breaker h630 3P 50kA 250A LSI
-
HND401HMoulded Case Circuit Breaker h630 4P 50kA 400A LSI
-
HNE970HMoulded Case Circuit Breaker h1000 3P 50kA 1000A LSI
-
HEE800HMoulded Case Circuit Breaker h1000 3P 70kA 800A LSI
-
HEE970HMoulded Case Circuit Breaker h1000 3P 70kA 1000A LSI
-
HND631HMoulded Case Circuit Breaker h630 4P 50kA 630A LSI
-
HEE971HMoulded Case Circuit Breaker h1000 4P 70kA 1000A LSI
-
HCE971HSwitch h1000 4P 1000A
-
HCE801HSwitch h1000 4P 800A
-
HNE801HMoulded Case Circuit Breaker h1000 4P 50kA 800A LSI
-
HNE971HMoulded Case Circuit Breaker h1000 4P 50kA 1000A LSI
-
HEE801HMoulded Case Circuit Breaker h1000 4P 70kA 800A LSI
-
HNE800HMoulded Case Circuit Breaker h1000 3P 50kA 800A LSI
-
HCE970HSwitch h1000 3P 1000A
-
HNE630HMoulded Case Circuit Breaker h1000 3P 50kA 630A LSI
-
HCE800HSwitch h1000 3P 800A
-
HNE631HMoulded Case Circuit Breaker h1000 4P 50kA 630A LSI
Technical characteristics
Power
-
Inrush power absorbed1,44 VA
Safety
-
Ingress Protection (IP) classIP4X
Voltage
-
Command voltage AC0 - 0 V
-
Command voltage DC48 - 48 V
-
Rated operational voltage Ue0 - 0 V
-
Rated operational voltage in DC48 - 48 V
Downloads
-
Product datasheet

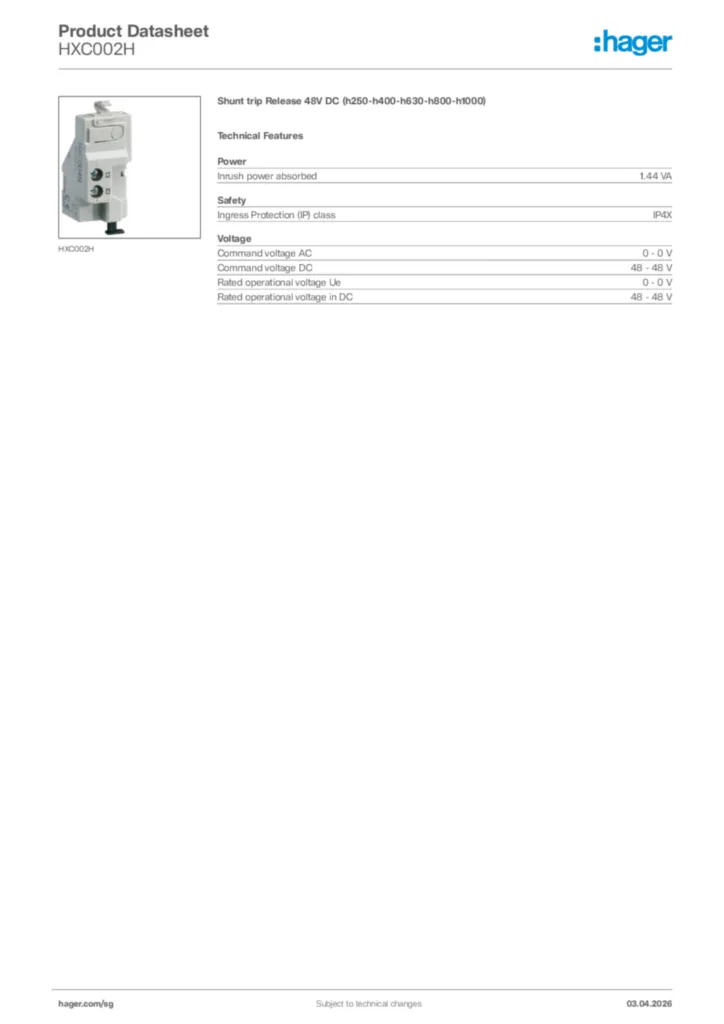

Hager Product data sheet HXC002H
