Moulded Case Circuit Breaker h400 3P 50kA 400A TM HND400U
EAN-Nr.
3250613349448
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Only available for export countries
Complete your system
Optional accessories
-
Shunt release 5 products available -
Auxiliaries contact block 2 products available -
Terminal cover 1 products available -
Padlock barrier for switch 1 products available
Complete your system
-
HXC004H
Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
-
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
-
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
-
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
-
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)
Technical characteristics
Electric current
-
Rated current400 A
-
Rated ultimate short-circuit breaking capacity Icu under 400 V AC IEC 60947-250 kA
-
Rated ultimate short-circuit breaking capacity Icu under 240 V AC IEC 60947-285 kA
Architecture
-
Number of poles3
Frequency
-
Frequency50 - 60 Hz
Voltage
-
Rated impulse withstand voltage Uimp8000 V
-
Rated insulation voltage Ui800 V
Functions
-
Trip unitTM A/A
Main electrical attributes
-
Magnetic protection trip time0 - 0 ms
Power
-
Total power loss under IN75 W
Endurance
-
Electric endurance in number of cycles1000
-
Number of mechanical operations4000
Safety
-
Ingress Protection (IP) classIP4X
Use conditions
-
Operating temperature-25 - 70 °C
Connection
-
Cross-section flexible conductor35 - 240 mm²
-
Cross-section rigid conductor35 - 240 mm²
-
Connector/plug typeTerminal
Installation, mounting
-
Nominal tightening torque22 - 22 Nm
-
Mounting-/Connection PositionFront
Settings
-
Thermal protection knob setting xIN0.63, 0.8, 1
-
Adjustment range short-term delayed short-circuit release0 - 0 A
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Product datasheet

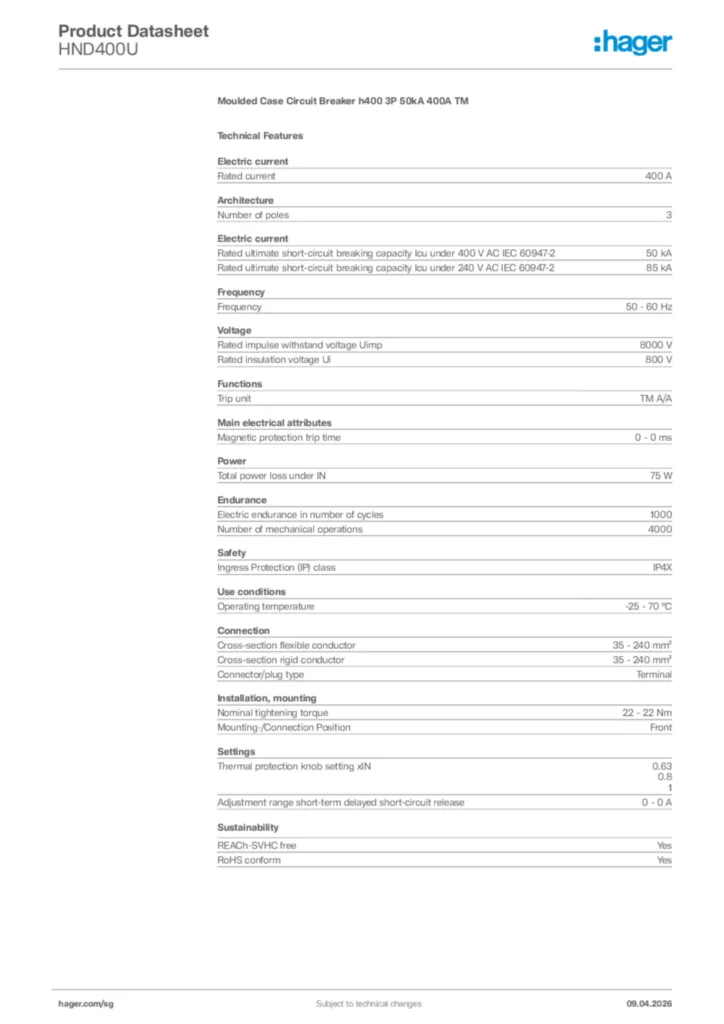

Hager Product data sheet HND400U
Moulded Case Circuit Breaker h400 3P 50kA 400A TM
PDF -
Installation manual
Installation manual International 2021-06-07
PDF7,13 MB -
Brochure
h3e MCCB brochure
Brochure en-GB 2015-11-13
PDF2,21 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-21
PDF300,90 kB
Declaration
Declaration of conformity International 2022-06-21
PDF286,44 kB
