Switch h630 4P 630A HCD631H
EAN-Nr.
3250613363154
Packaging
1 piece
Login to create a product list
You need to be logged into your myHager account to create product lists
Stop delivery w sub Example text: This product is now obsolete. However, you can view the following products as replacements or extensions. As the functions of the replacement product are not absolutely identical, please consult your nearest Hager partner if you have any questions.
Complete your system
Optional accessories
-
Shunt release 5 products available -
Auxiliaries contact block 2 products available -
Connection Functions 1 products available -
Padlock barrier for switch 1 products available
Complete your system
-
HXC004H
Shunt trip Release 200-240V AC (h250-h400-h630-h800-h1000)
-
HXC002HShunt trip Release 48V DC (h250-h400-h630-h800-h1000)
-
HXC003HShunt trip Release 100-120V AC (h250-h400-h630-h800-h1000)
-
HXC005HShunt trip Release 380-450V AC (h250-h400-h630-h800-h1000)
-
HXC001HShunt trip Release 24V DC (h250-h400-h630-h800-h1000)

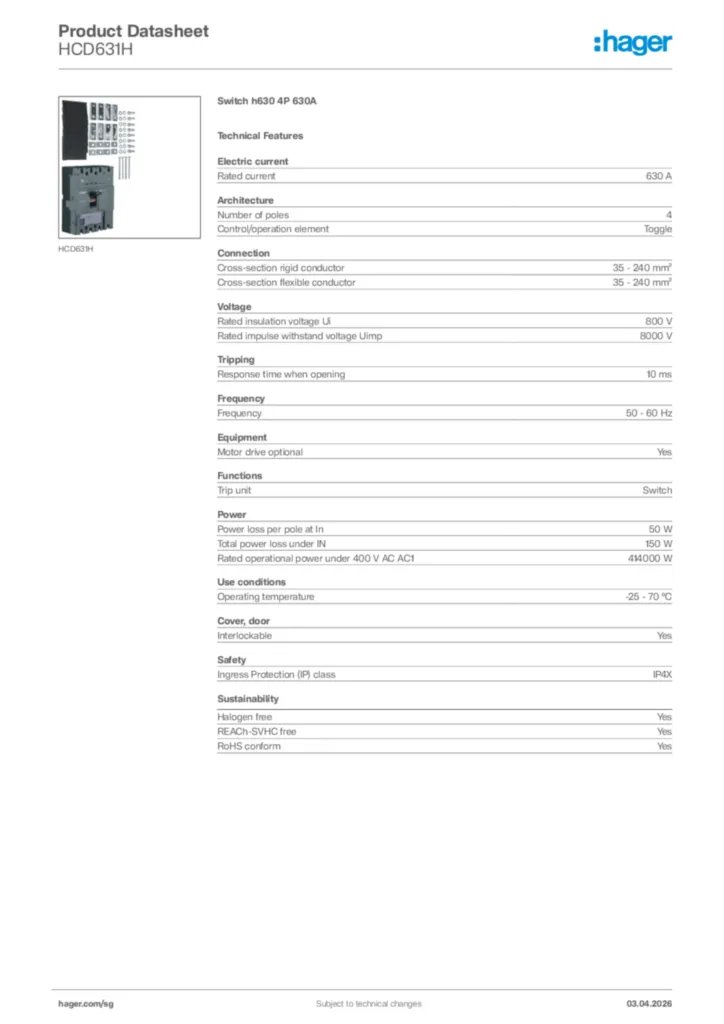

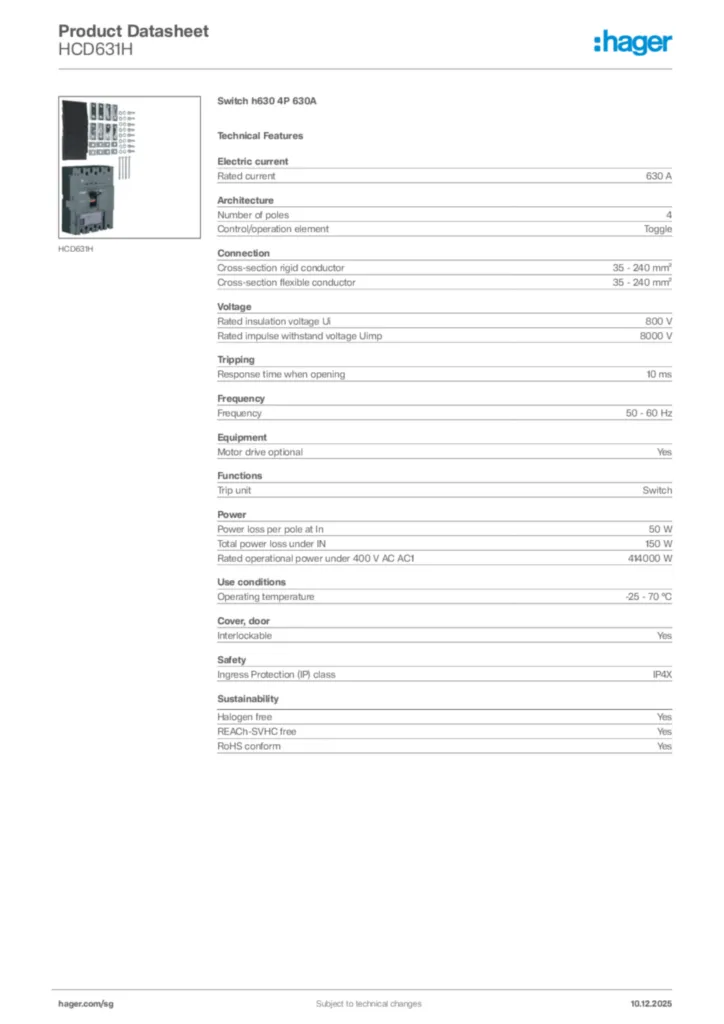

Technical characteristics
Electric current
-
Rated current630 A
Architecture
-
Number of poles4
-
Control/operation elementToggle
Connection
-
Cross-section rigid conductor35 - 240 mm²
-
Cross-section flexible conductor35 - 240 mm²
Voltage
-
Rated insulation voltage Ui800 V
-
Rated impulse withstand voltage Uimp8000 V
Tripping
-
Response time when opening10 ms
Frequency
-
Frequency50 - 60 Hz
Equipment
-
Motor drive optionalYes
Functions
-
Trip unitSwitch
Power
-
Power loss per pole at In50 W
-
Total power loss under IN150 W
-
Rated operational power under 400 V AC AC1414000 W
Use conditions
-
Operating temperature-25 - 70 °C
Cover, door
-
InterlockableYes
Safety
-
Ingress Protection (IP) classIP4X
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-
Installation manual
Installation manual International 2021-06-07
PDF7,13 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2022-06-21
PDF283,85 kB
