Compact twilight switch enhanced 16A EE702
Login to create a product list
You need to be logged into your myHager account to create product lists
Technical characteristics
Voltage
-
Rated operational voltage Ue230 - 230 V
Frequency
-
Frequency50 - 60 Hz
Power
-
230 V incandescent and halogen lamp2300 W
Settings
-
Switch off delay time40 s
-
Switch on delay time10 s
Use conditions
-
Storage/transport temperature-30 - +60 °C
Connection
-
Cross-section flexible conductor1 - 4 mm²
-
Cross-section rigid conductor1 - 4 mm²
Texts
-
Installation modeWith pipe clamp for mast fixing, Installation possible on flush-mounted box, For wall and mast assembly
-
Type of connectionWith screw terminals
Electric current
-
Switching current10 A
Dimensions
-
Height95 mm
-
Width80 mm
-
Depth42,50 mm
Environmental value
We are committed to bettering our environmental performance by reducing our footprint while acting as a sustainability enabler for our customers. Learn More
Certifications and documents
Downloads
-

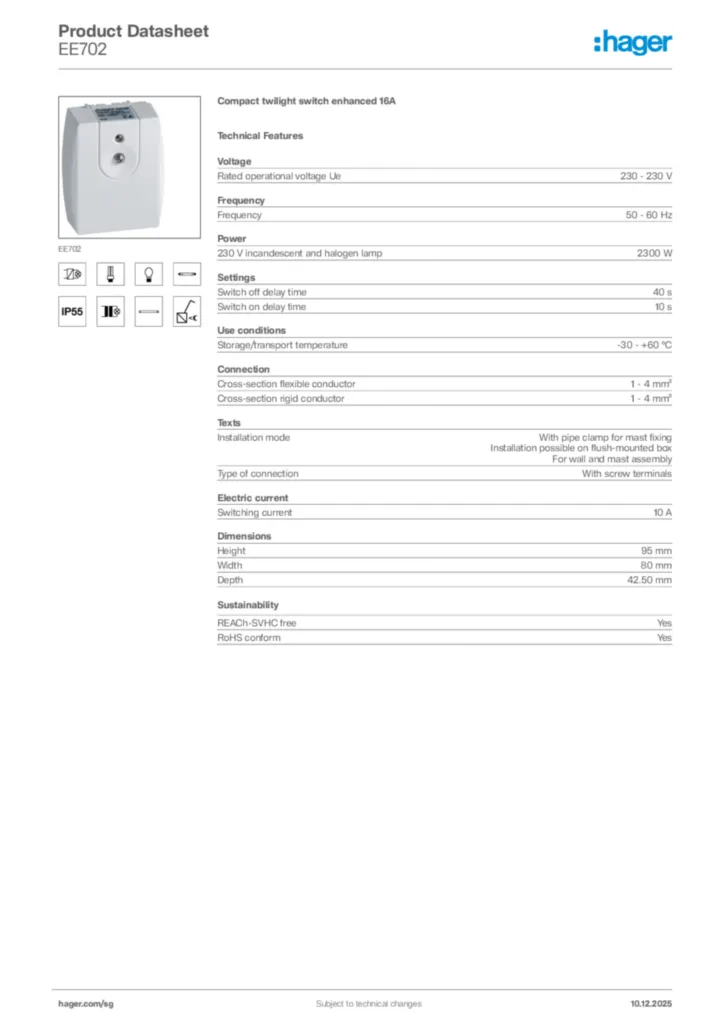

Product datasheet
Hager Product data sheet EE702
Compact twilight switch enhanced 16A
PDF -
Installation manual
Installation manual en-GB, fr-FR, de-DE, nl-NL 2017-03-16
PDF2,36 MB -
Declaration of conformity
Declaration
Declaration of conformity International 2020-03-06
PDF106,74 kB
Declaration of conformity International 2023-02-13
PDF312,31 kB
More documentation
